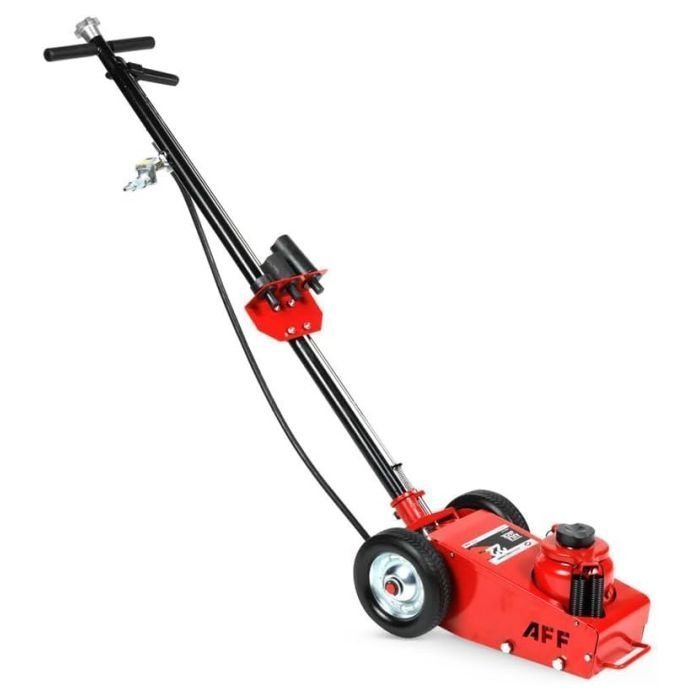

AFF 22-Ton Air Hydraulic Axle Jack

American Forge & Foundry’s 22-ton Single-Stage Air Hydraulic Axle Jack is a heavy-duty axle jack built tough for the rigors of heavy-duty trucking. Features include air assist operation and a self-retracting spring return. Its heavy-duty design is ideal for truck and trailer shops, rail and bus work, roadside service calls, and much more. Includes a 2-piece handle, 3 heat-treated extensions, and a saddle adapter. This air jack comes with an alloy steel lifting mechanism for added durability and operator safety. It’s also precision-engineered for maximum performance. Plus, the product comes with an in-line filter to protect the air motor from contaminants and with a corrosion-resistant aluminum and nylon composite air motor.

Features

• Specially Engineered Air Motor Delivers Fast And Efficient Operation
• Operates From 90 – 180 PSI
• Large 8″ Diameter Rubber Wheels Provide Effortless Travel In The Shop Or Roadside
• Automatic In-Line Oiler To Lubricate Air Motor
• Grommet Retainers – No Need For Clevis Pins
• Fully Welded Hydraulic Pump And Cylinder Delivers Maximum Strength And Leak Free Operation
• Heavy-Duty Wiper Seals Protect The System From Contaminants And Ensures Long Service Life
• Heavy Duty Steel Saddle
• Extension Screw Gives Added Lift Height
• Long T-Handle Design Allows Easy Access To Vehicles With Long Overhangs
• 41″ Two Piece T-Handle Can Be Locked In Three Different Positions
• Air Valve With Integrated In-Line Filter/Dryer To Remove Oil, Aerosols, And Any Moisture That May Pass Your Air Filtration System, Or That May Build Up In Your Lines Between The Jack And Your Air Filtration System
• Heavy-Duty Air Motor Provides Maximum Power
• Double-Sealed Hydraulics For Long, Dependable Life
• Overload Safety Valve Provides Added Operator Safety

Specifications

• Capacity: 22-Ton
• Ram Lift: 4-3/4″
• Low Height: 8-1/4″
• High Height with Extensions: 21-1/2″
• Length: 20-1/4″
• Front Width: 16-15/16″
• Rear Width: 12-13/16″
• Weight: 99 lbs.
• Warranty: (3) Year Limited
