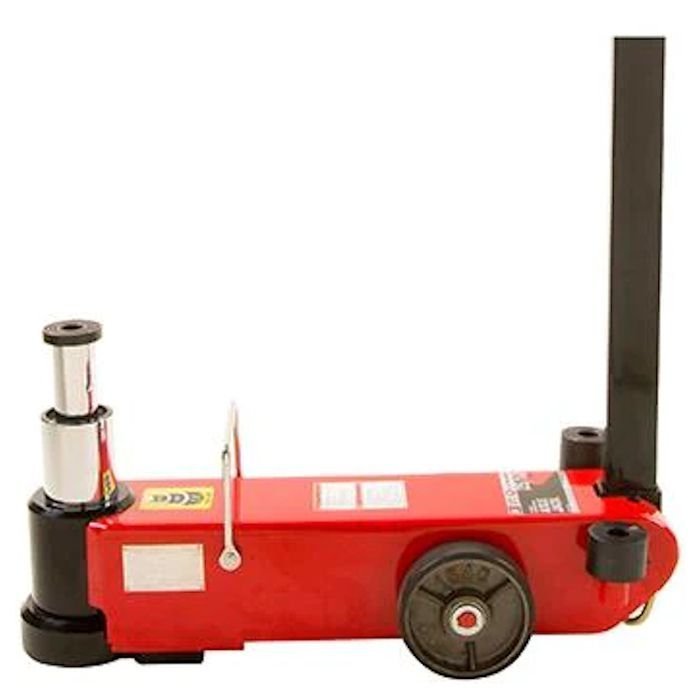

AFF 25-10-Ton 2-Stage Air Hydraulic Axle Jack

American Forge & Foundry’s 25-10-Ton 2-Stage Air Hydraulic Axle Jack is a super-duty axle jack built tough for the rigors of the heavy-duty trucking, agricultural, and fleet business. Features include industrial technology piston head seal design, extra long handle with three locking positions, integral descent metering, single piece base construction, double-polished chrome pistons, air-assisted lowering speed, and built-in overload safety valve. Includes saddle adapter and two extensions 1.75″ and 3″.

Features

• Super Heavy-Duty, 2-Stage 25 / 10 Ton Built Tough For The Rigors Of The Heavy-Duty Trucking, Agricultural, And Fleet Business
• The Piston Head Seal Design Is Borrowed From Industrial Technology Providing A Superior Low And High-Pressure Seal, Giving This Jack A Much Better Hold Under Severe Load Conditions
• The Extra Long 54″ (138Cm) Handle Can Be Locked In 3 Positions For Easy Positioning Of This Jack In Hard To Reach Places
• Integral Descent Metering Valve Maintains A Controlled And Safe Lowering Of The Load
• Single Piece Base Construction Provides Superior Strength For Increased Load Stability
• Double Polished Chromed Pistons Allow For Much Tighter Tolerances Which Reduce Oil Bypassing And Reduce Ram Scoring
• Air-Assisted Lowering Speeds Up Ram Retraction
• Built Overload Safety Valve Prevents Damage To Unit Due To Excessive Load
• Includes 2 Extensions 3″ (75Mm) And 1.75″ (45Mm) And Saddle Adapter
• Units Are Tested To -13°F (-25°C) And +113°F (+45°C) As Well As Center Loading To Ensure A Long Life Under Even The Harshest Conditions

Specifications

• 25-Ton (1st Stage) Low Height: 7.28″ (185mm)
• 25-Ton (1st Stage) High Height: 11.10″ (282mm)
• 25-Ton (1st Stage) Ram Lift: 3.82″ (97mm)
• 10-Ton (2nd Stage) Low Height: 7.28″ (185mm)
• 10-Ton (2nd Stage) High Height: 14.84″ (377mm)
• 10-Ton (2nd Stage) Ram Lift: 7.56″ (192mm)
• Working Air Pressure: 116 to 174PSI (0.8 to 1.2 Mpa)
• Net Weight: 117 lbs. (53kg)
• Shipping Weight: 128 lbs. (58kg)
• Warranty: (3) Year Limited
