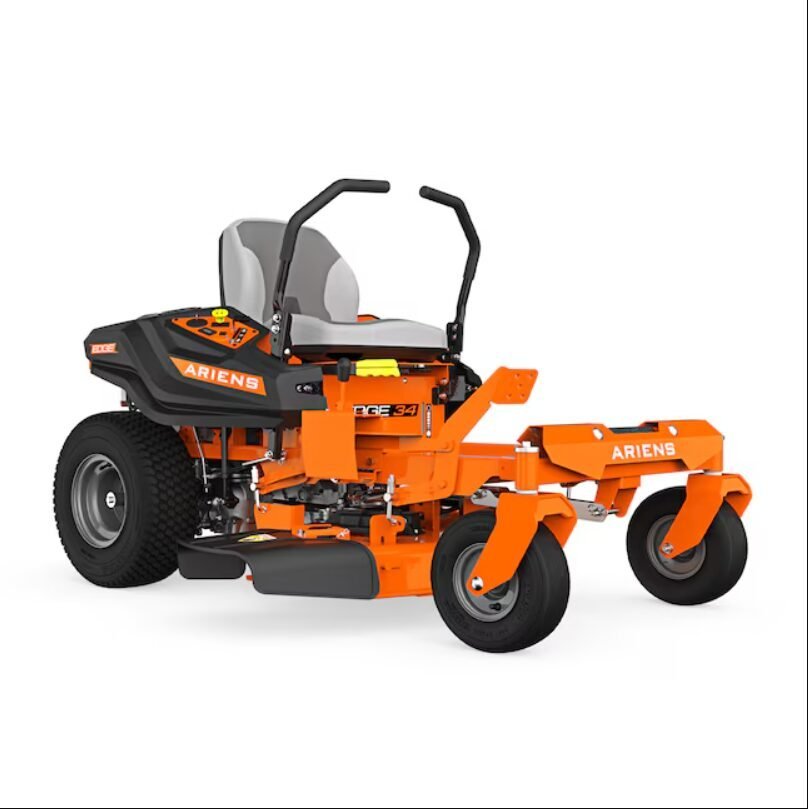

Features for the Ariens EDGE 34 – Kohler
- Kohler 6000 Series Engine: 19 HP Kohler V-Twin Engine delivers power and reliability.
- Twin EZT Hydrostatic Transaxles: Responsive, smooth, control with speeds of 6 mph forward and 3 mph in reverse.
- High-Back Seat: Adjustable High-back seat provides operator comfort and air-flow.
- 34″ Stamped Deck: 34 inch, 12 gauge steel deck with superior air-flow for a supreme cut.
- Large Tires: A larger diameter tire offers more traction and a smoother ride.
- Intuitive Control: The foot-operated deck lift offers quick and easy cutting height adjustment.
Technical Specs for the Ariens EDGE 34 – Kohler*
| Engine | |
|---|---|
| Engine Brand | Kohler 6000 Series V-Twin |
| Displacement(cc) | 660cc |
| Power | 19 HP |
| Fuel Capacity | 2 Gallons |
| Drive System | |
| Transmission Type | Hydro-Gear EZT Transaxles |
| Speed Forward (min, max) | 0 – 6 mph |
| Speed Reverse (min, max) | 0 – 3 mph |
| Tire Size (front, rear) | 11×4-5 / 18×6.5-8 |
| Cutting Deck | |
| Blades | 2 |
| Cutting Deck Material | Stamped Steel |
| Blade Engagement | Electric |
| Cutting Deck Type | Stamped |
| Cutting Width | 34 inches |
| Deck Lift System | Foot Operated |
| Cutting Height (min-max) | 1.5 – 4.5 inches |
| Cutting Height Steps | 7 |
| Deck Thickness | 12 gauge |
| Spindles | 2 |
| Features | |
| Seat Back Height | High Back w/ Seat Springs |
| Hour Meter | Included |
| Dimensions | |
| Length (in.) | 68 inches |
| Width (in.) | 44.8 inches |
| Height (in.) | 39.3 inches |
| Weight (lbs.) | 464 lbs. |
