Bendpak GrandPrix GP-9LC 9000 Lb. Capacity 2 Post Lift

Bendpak GrandPrix GP-9LC 9,000 Lb. Capacity 2 Post Lift

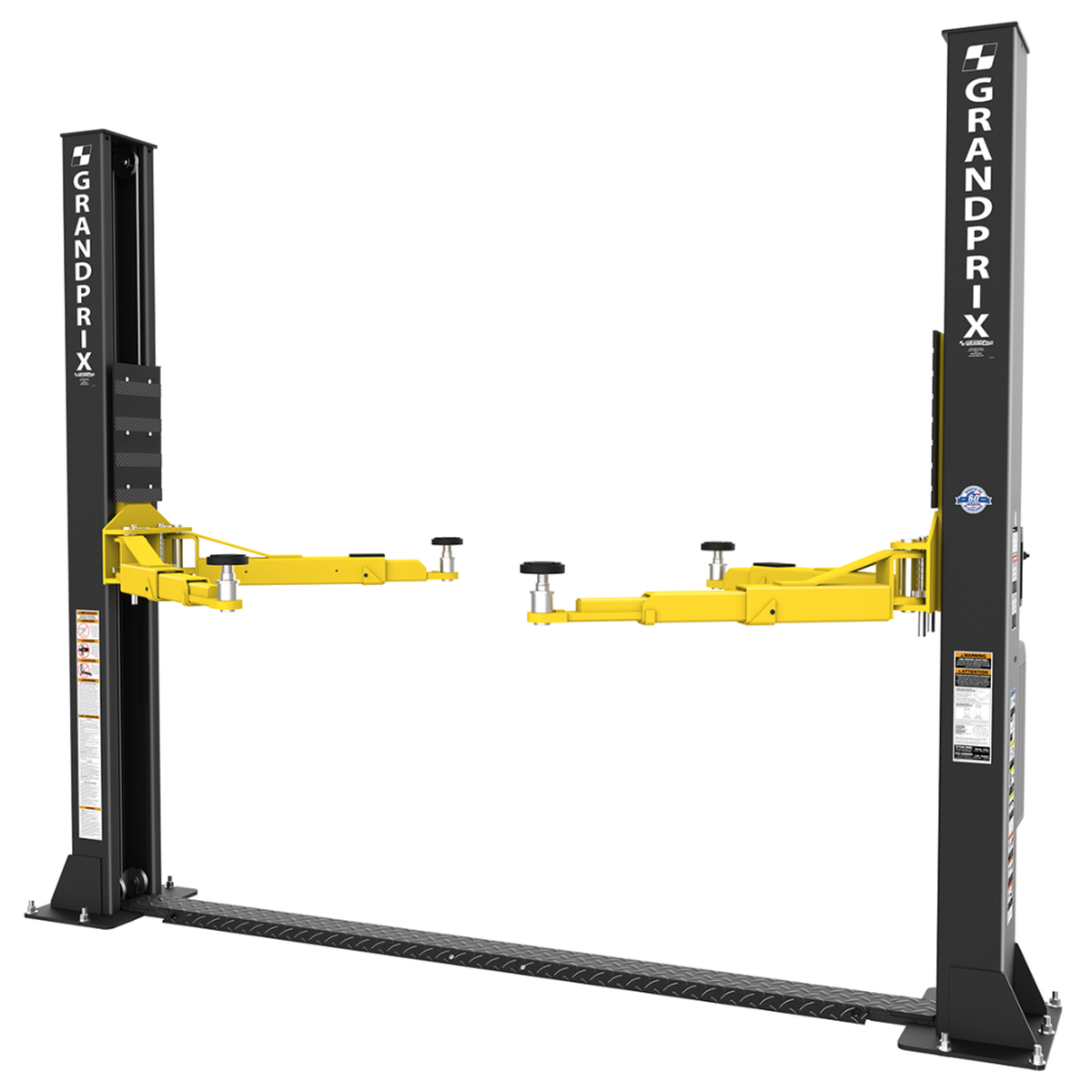

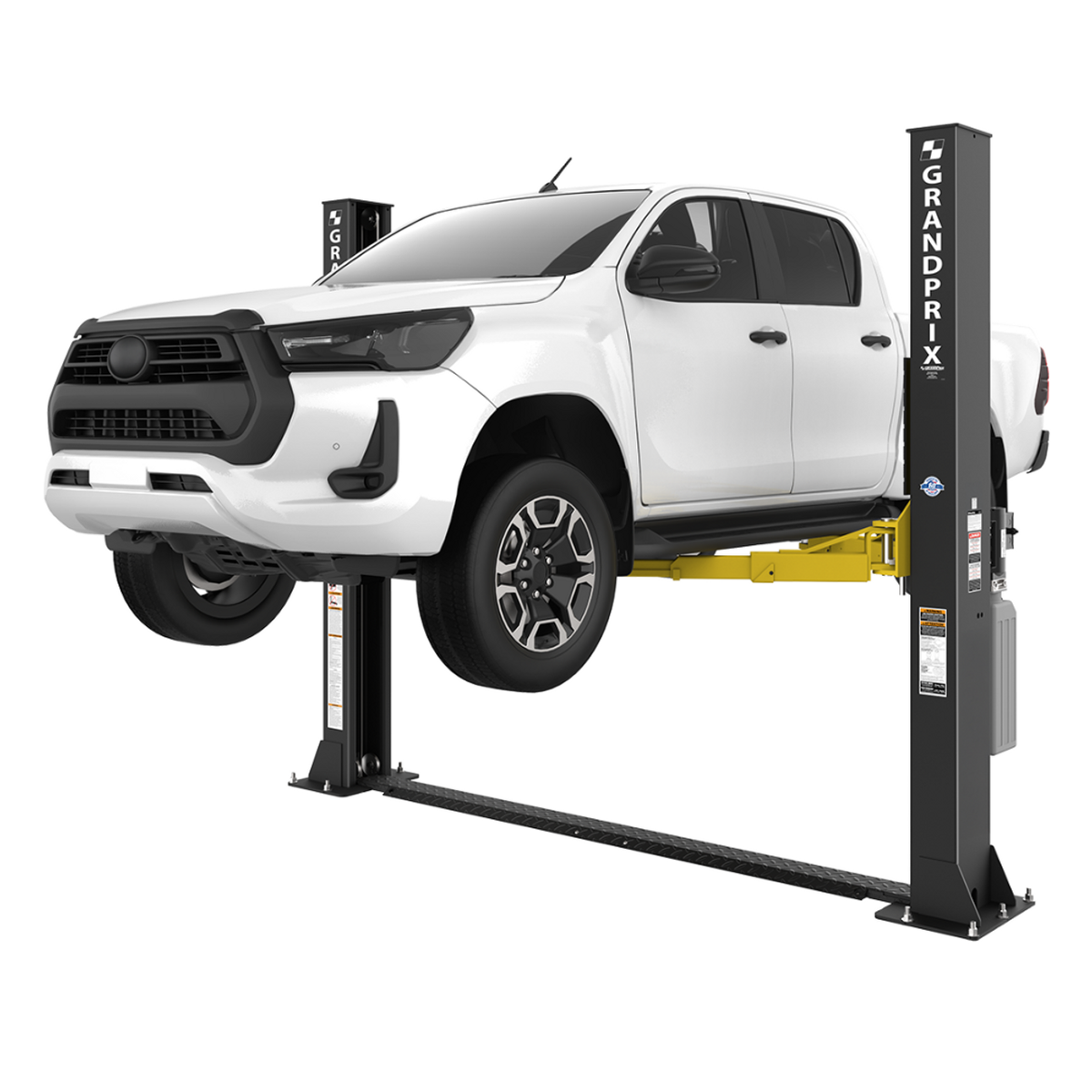

The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.

Features

9,000-lb. lifting capacity.

Symmetric and asymmetric arm design for enhanced versatility.

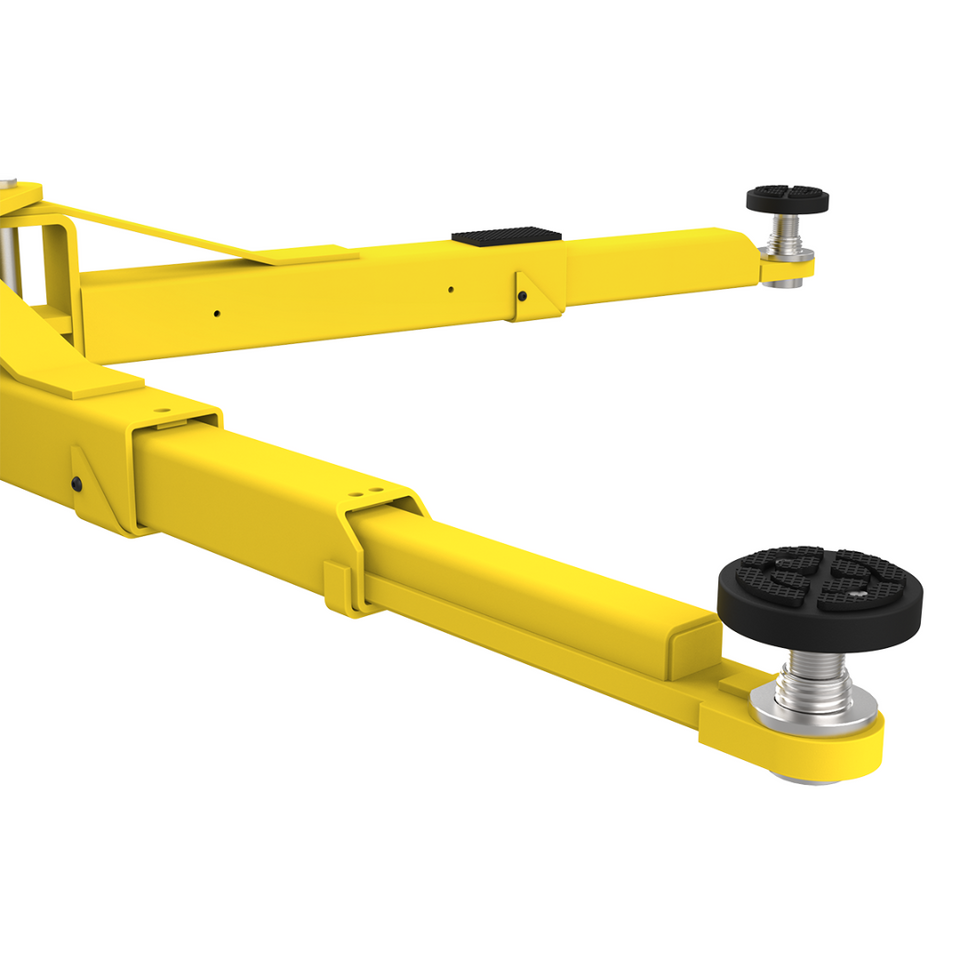

Triple-telescoping front arms & dual-stage extended rear arms.

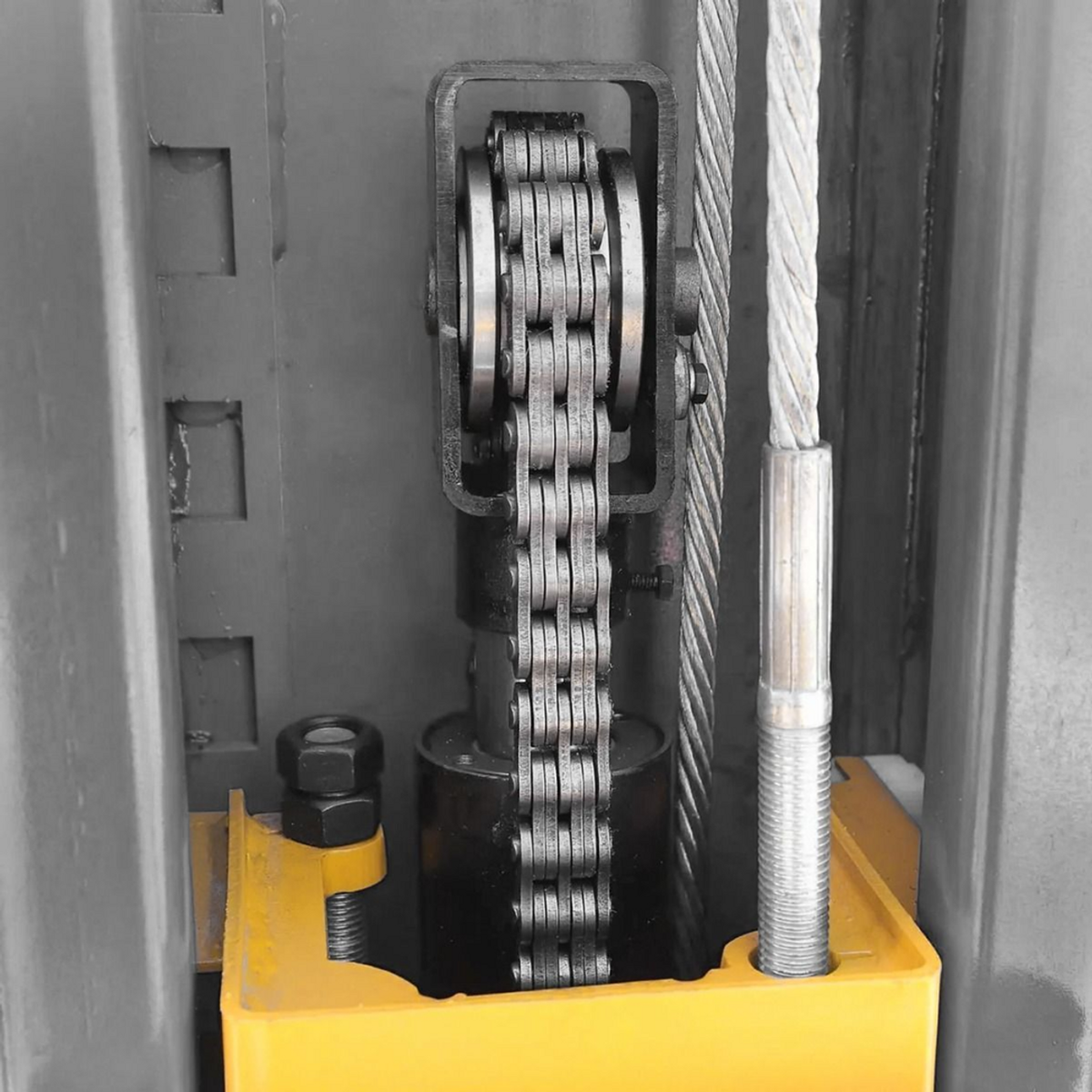

Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability.

Heavy-duty 6″ x 6″ tubular steel carriage for maximum strength.

Electric-hydraulic power system for effortless operation.

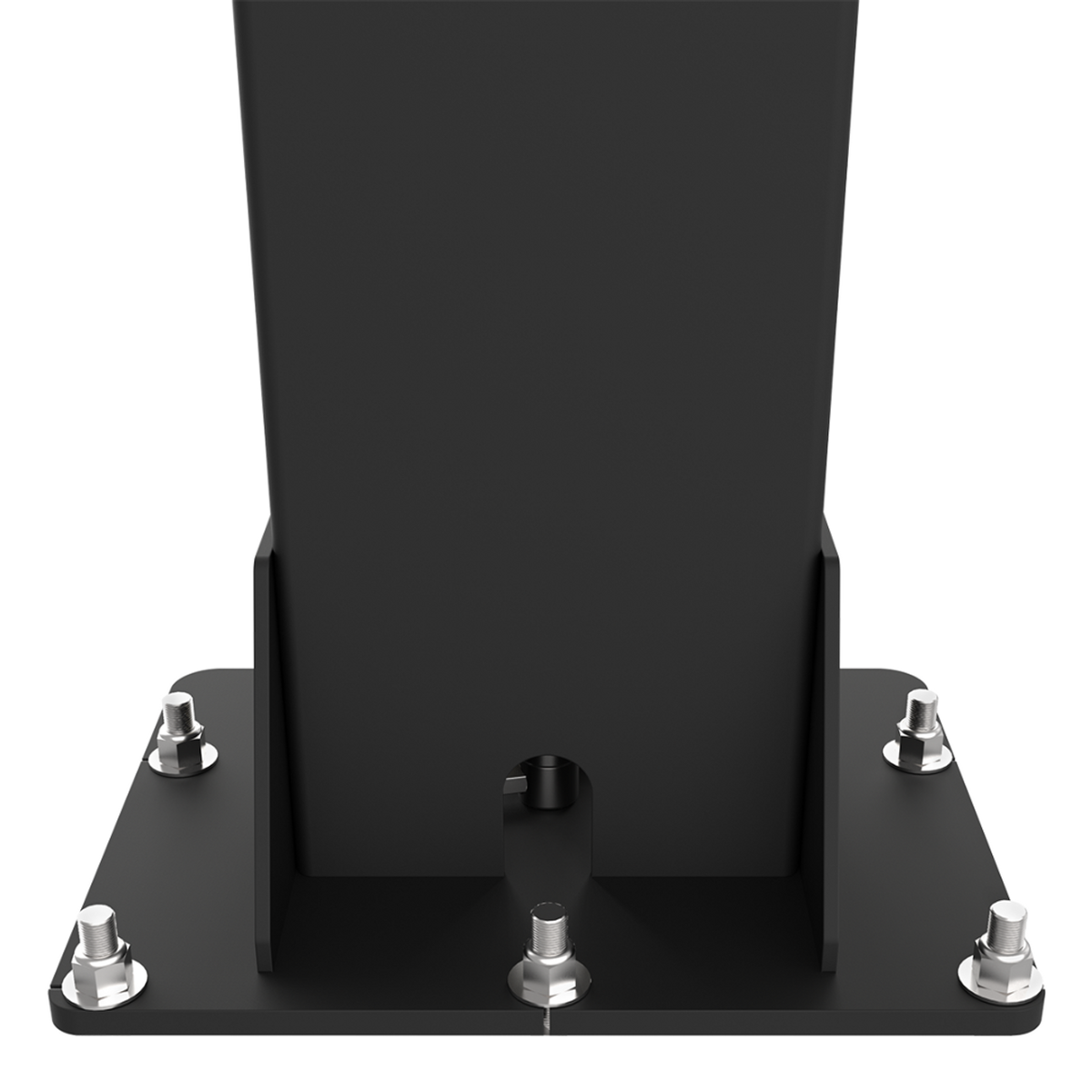

Oversized 20.5″ x 15.5″ base plate for increased stability.

Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.

Safety locks in each column spaced every 3 inches.

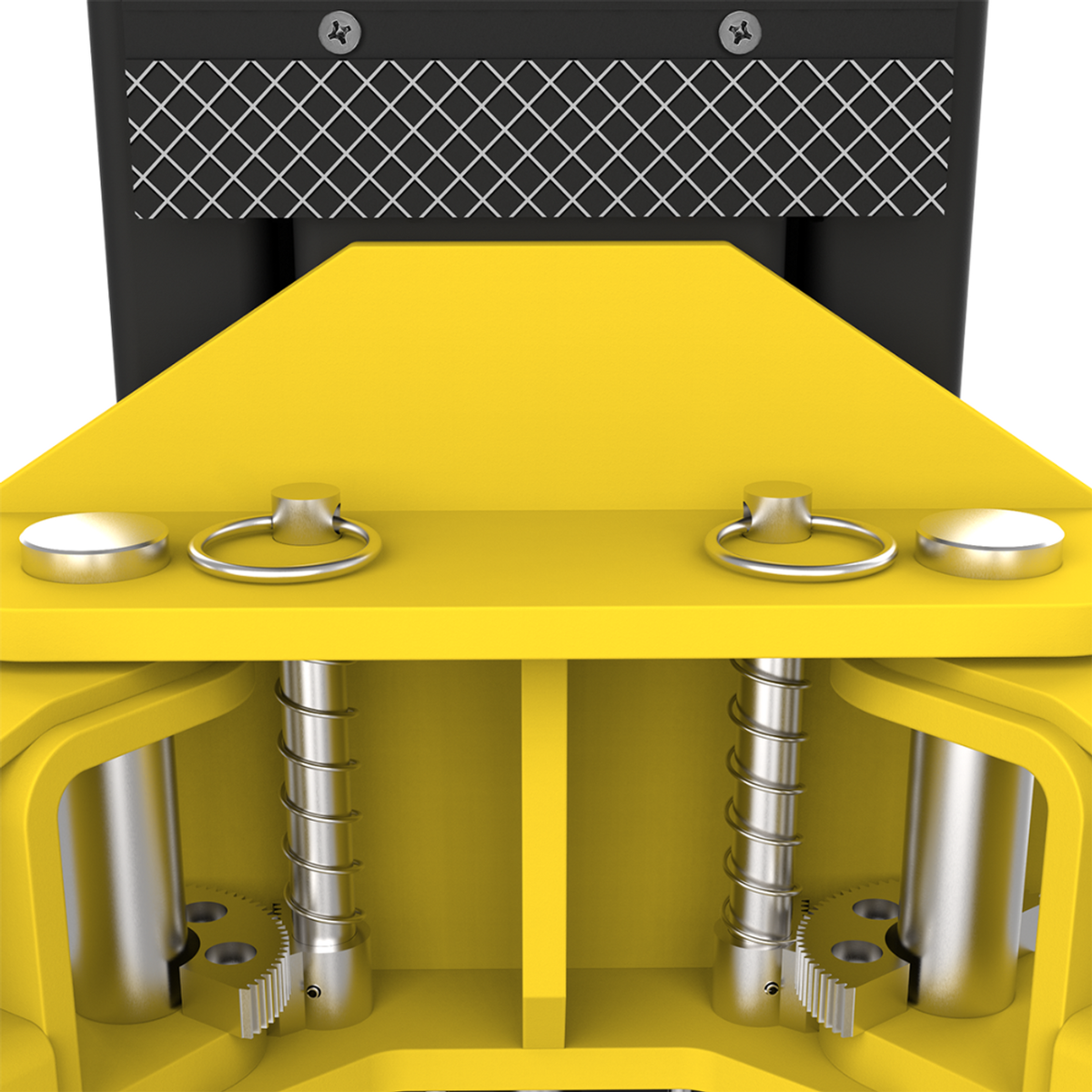

Automatic arm restraints for enhanced safety.

Heavy-duty 1/2″ aircraft-quality equalizer cables.

Oversized cable sheaves to reduce cable fatigue.

Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability.

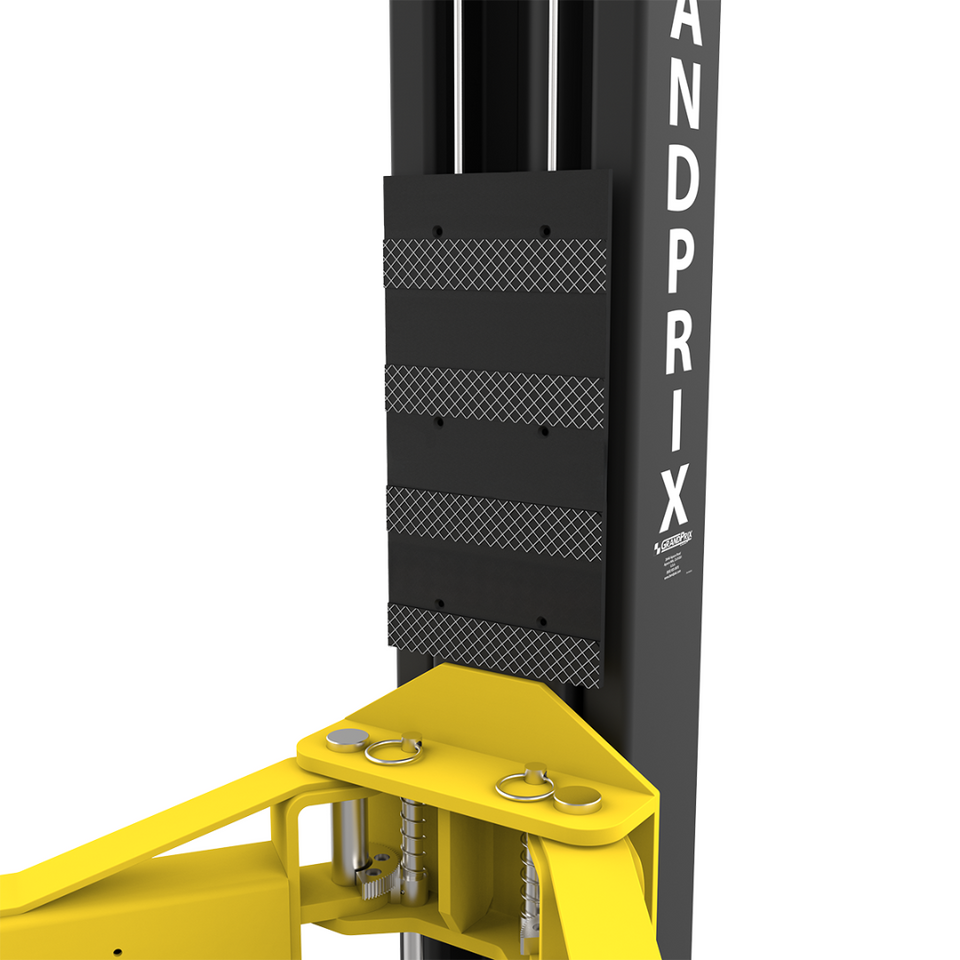

Full size rubber carriage guard reduces door dings.

4-piece 63mm stackable adapter set included.

10-piece concrete wedge anchors included.

Specifications

Lifting Capacity

9,000 lbs. (4,082 kg)

Max. Capacity / Front Axle

4,500 lbs. (2,045 kg)

Max. Capacity / Rear Axle

A – Height Overall

109.5″ (2,781 mm)

B – Width Overall (at Baseplate)

137.25″ (3,486 mm)

C – Width Outside of Columns

127.5″ (3,238 mm)

D – Floor To Drive-over Height

1.25″ (30 mm)

E – Width Inside Columns

113.5″ (2,880 mm)

F – Front Arm Reach (Min.)

22.5″ (571 mm)

F – Front Arm Reach (Max.)

43.25″ (1,099 mm)

G – Rear Arm Reach (Min.)

33.5″ (845 mm)

G – Rear Arm Reach (Max.)

53.25″ (1,353 mm)

H – Min. Pad Height

3.9″ (100 mm)

I – Rise

70″ (1,778 mm)

J – Max. Lift Height (Pad + 63mm Adapt.)

76.5″ – 78.5″ (1,943 – 1,994 mm)

K – Drive-Thru Clearance

103″ (2,618 mm)

Screw Pad Adjustment

2″ (51 mm)

Motor

220 VAC / 60Hz / 1 Ph

Time of Full Rise

65 seconds

Max. Load Per Arm

2,250 lbs. (1,023 kg)

Shipping Weight

1,385 lbs. (630 kg)
