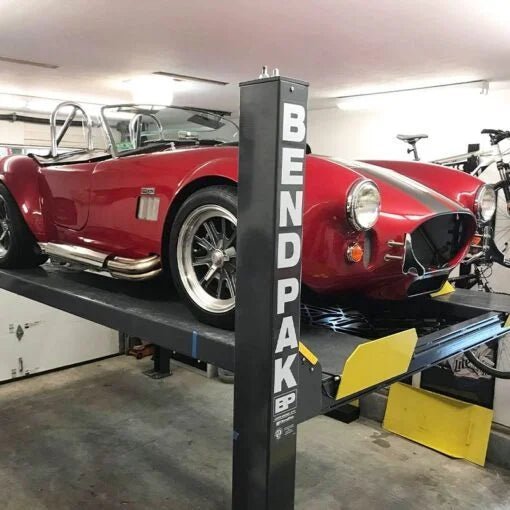

BendPak Wide & Long 4 Post Car Lift 9000 lb – New Gray

The Most Dependable Extended-Length Lift in its Class

The HD-9XL from BendPak is a four-post lift which offers a generous amount of drive-thru clearance, as well as lift height. It also features extended runways to accommodate longer wheelbases. While this lift has the width of a typical parking space, it still maximizes your valuable floor space. You can use it for storing cars, trucks, ATVs, snowmobiles, jet skis, golf carts, and really just about anything else on four wheels. All you need is an 8-foot ceiling, and you’ll be able to take full advantage of that space with this lift. Pick up an optional caster kit and you’ll be able to roll this lift wherever you may need it. The HD-9XL will provide you with a high-quality solution to both vehicle maintenance and parking issues that commonly plague shops.

– Dual-hub cable sheaves

Dual-hub sheaves are found on every BendPak. These sturdy, dependable components are costly to manufacture, but BendPak uses them because they simply perform better and will last longer.

– Multi-level locking positions

The HD-9XL offers mechanical lock positions every few inches, which means it is possible to park low or high-clearance vehicles at just the right height. It also gives technicians more options to work comfortably at their preferred height.

– Heavy-duty aircraft cable

The HD-9XL includes four high-quality cables that can easily handle 14,000 lbs. each. This means that the cables can support 640% of the lift’s rated capacity. The cables are all located within the lift. Not only does this give the lift a sleek design, but it also raises safety by removing the risk of accidentally damaging the cables.

– Electric-hydraulic power system

BendPak power units require no maintenance and have their controls easy to access. With their power units you can lift, lower, and stop a vehicle with the press of a button.

– Large base plates

This four-post lift features large 10″ x 12″ base plates that can be bolted for extra stability or left unbolted for the caster kit. Either way, the large surface area will ensure that everything you lift and lower will always remain safe and stable.

– Caster kit

BendPak’s 4-piece caster kit is a great addition to every model in the HD-9 series. It essentially turns a planted object into a mobile workstation. Whenever you need to move your lift anywhere, you can. Then just roll it back when you’re done. It’s that easy.

– Integrated design

To increase safety, BendPak has designed all the moving parts to remain inside of the columns. That includes the cables, safety latches, and dual-hub cable sheaves. By having the components remain internal, it becomes easier to service them and keeps them protected by the surrounding steel.

– Low-deck runways

The HD-9XL car lift comes sporting low-profile runways that rise just 4.5″ off the ground when lowered. This intuitive design makes it easy to lift low-stance cars.

– Longer approach ramps

The low runways of this four-post lift are complemented by extended approach ramps. Now you can load vehicles that practically just scrape the ground.

– Automatic safety locks

Mechanical locks are essential safety components on BendPak four-post lifts. The runways will automatically engage the locks as the lift ascends. A backup cable slack detection system is in place in the unlikely event of cable failure, or the development of excess slack.
