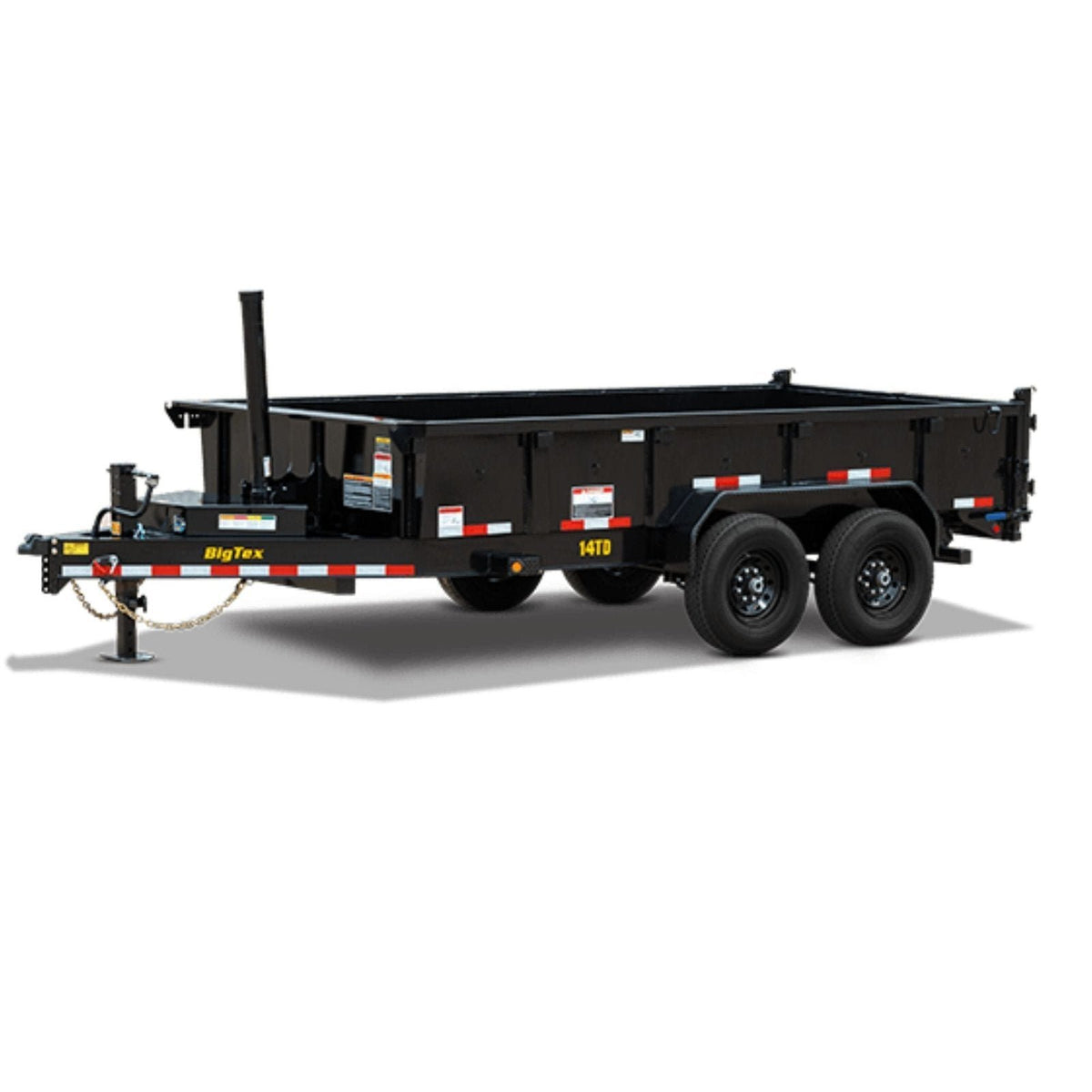

Big Heavy Duty Telescopic Dump Trailer | 14TD

Deal with big, dirty jobs? Bring it on. Professionals in construction, landscaping, and waste management need a trailer that handles heavy-duty, bulky cargo and debris without breaking a sweat. They need the 14TD Heavy Duty Telescopic Dump, a powerful dump trailer that features a class-leading 12-ton telescopic cylinder to make unloading and loading effortless—even when dealing with uneven or loose materials. Plus, its construction has been informed by advanced engineering for enhanced durability and reliability.

Standard Feature

Available Options

Axles

2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Drop Axles (Lowers Deck Height to 24″ from Ground)

Brakes

Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Tongue

10″ I-Beam Neck

Coupler

2-5/16″ Ball, Adjustable Demco EZ Latch Coupler

Adjustable Pintle in Channel in Lieu of Coupler

Safety Chains

3/8″ Grade 70 w/ Safety Latch Hook (2 ea)

Jack

12,000# Drop-Leg Jack (Side Wind)

Frame

8″ Seamless I-Beam (13#)

Cross-Members

3″ Channel on 16″ Centers

Floor

10 Gauge Smooth Steel

Upgrade Floor to 7-Gauge Steel

Fenders

9″ x 72″ 14 Ga. Diamond Plate Double Broke

Ramps

Not Included

6.5’ Slide In Ramp Package

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST235/80 R-16 Load Range E Radial Tires

Tire Upgrade (ST235/80 R-16 LR-G)

Bolt Pattern

8-Lug

Wheels

Black Mod Steel

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire & Wheel (ST235/80 R-16 LR-E)

Spare Tire Upgrade (ST235/80 R-16 LR-G)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Tie-Downs

(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable

Battery

12V Deep Cycle

Charger

5A 110V on Board Battery Charger

Deck On Neck

Gate

Rear Combo Gate (Barn Doors & Spreader Gate)

J-Hooks

Along sides and rear for Cargo Control

Power

Power Up/Gravity Down Movement

5 Watt Solar Charger

Wireless Remote

Ram

12-Ton 3- Stage Telescopic Cylinder

Sides

24″ Tall (10 Ga) with formed Channel Supports

24″ Expanded Metal Side Extensions

3′ Solid Sheet Metal Sides

4′ Solid Sheet Metal Sides

Stabilizers

Rear Stabilizer Stands

Steps

Convenient Side-Step to Access Top Rail

Storage

Lockable Pump and Battery Box mounted in Front of Bed

Tarp

Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders

Top Rail

3″x 2″ Rectangular Tubing

Steps & Handles

Model

14TD-16

14TD-14

Pull Type

Bumperpull

GVWR

14000 lbs

GAWR (Ea. Axle)

7000 lbs

Empty Weight

4430 lbs

3970 lbs

Cargo Capacity

9570 lbs

10030 lbs

Bed Length

16′

14′

Bed Width

83″

A

192″

168″

B

115-3/4″

100″

C

76-1/4″

68″

Tongue Length

61-1/4″
