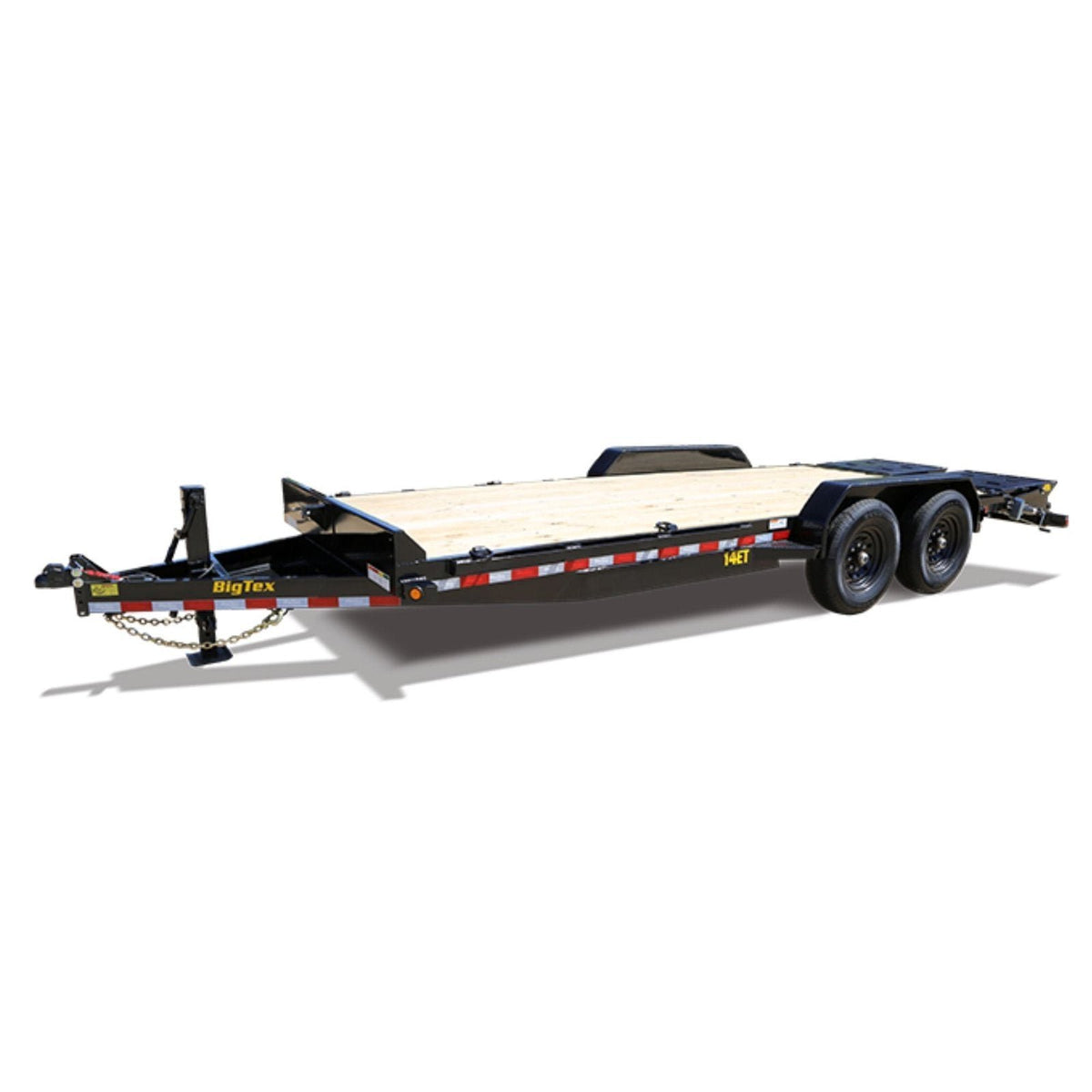

Big Tex Heavy Duty Tandem Axle Equipment Trailer | 14ET

Engineered to get the job done like no other, the 14ET Heavy Duty Tandem Axle Equipment Trailer delivers the versatility, durability, and strength required to take on the difficult demands of the heavy-duty hauling and equipment transportation. Ready to go for the longest and hardest hauls, it’s the ideal heavy-duty trailer solution for construction workers, professional landscapers, farmers, and more.

Standard Feature

Available Options

Axles

2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Coupler

2-5/16″ Ball, Adjustable Demco EZ Latch Coupler 2-5/16″ Round Gooseneck Coupler on Gooseneck models

Adjustable Pintle in Channel in Lieu of Coupler

Safety Chains

3/8″ Grade 70 w/ Safety Latch Hook (2 ea)

Jack

12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model

Frame

6″ Channel

Cross-Members

3″ Channel on 16″ Centers

Front Stop Rail

3/16″ Fabricated Front Stop Rail (Bumper Pull Only)

Floor

APEX Fortified Lumber

Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot)

Fenders

9″ x 72″ 14 Ga. Diamond Plate Double Broke w/ Back

Ramps

4’ Tall, 16″ Knee Ramps (Spring Assisted)

44″ Wide Mega Ramps (Dovetail only) 5′ Rear Slide-In Ramps (Straight Deck models only) Super-Wide Ramps (60″ Tall x XX” Wide)

Dovetail

3′ Cleated Dovetail

Blackwood Pro Dovetail (Standard with Super-Wide Ramps)

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST235/80 R-16 Load Range E Radial Tires

Tire Upgrade (ST235/80 R-16 LR-G)

Bolt Pattern

8-Lug

Spare Mount

Front Spare Tire Mount

Spare Tire

Not Included

Spare Tire & Wheel (ST235/80 R-16 LR-E) Spare Tire Upgrade (ST235/80 R-16 LR-G)

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Rubrail

Rub Rail Along Both Sides

Tie-Downs

(6) 5/8″ D-Rings

Extra 5/8″ D-Rings Recessed D-Ring in Floor (Steel Floor Only)

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable

Storage

Tongue Tool Tray (Bumper Pull Only) Lockable Toolbox Between Risers on Gooseneck Model

Model

14ET-20KR

14ET-18KR

Pull Type

Bumperpull

GVWR

14000 lbs

GAWR (Ea. Axle)

7000 lbs

Empty Weight

2940 lbs

2740 lbs

Cargo Capacity

11060 lbs

11260 lbs

Bed Length

20′

18′

Bed Width

83″
