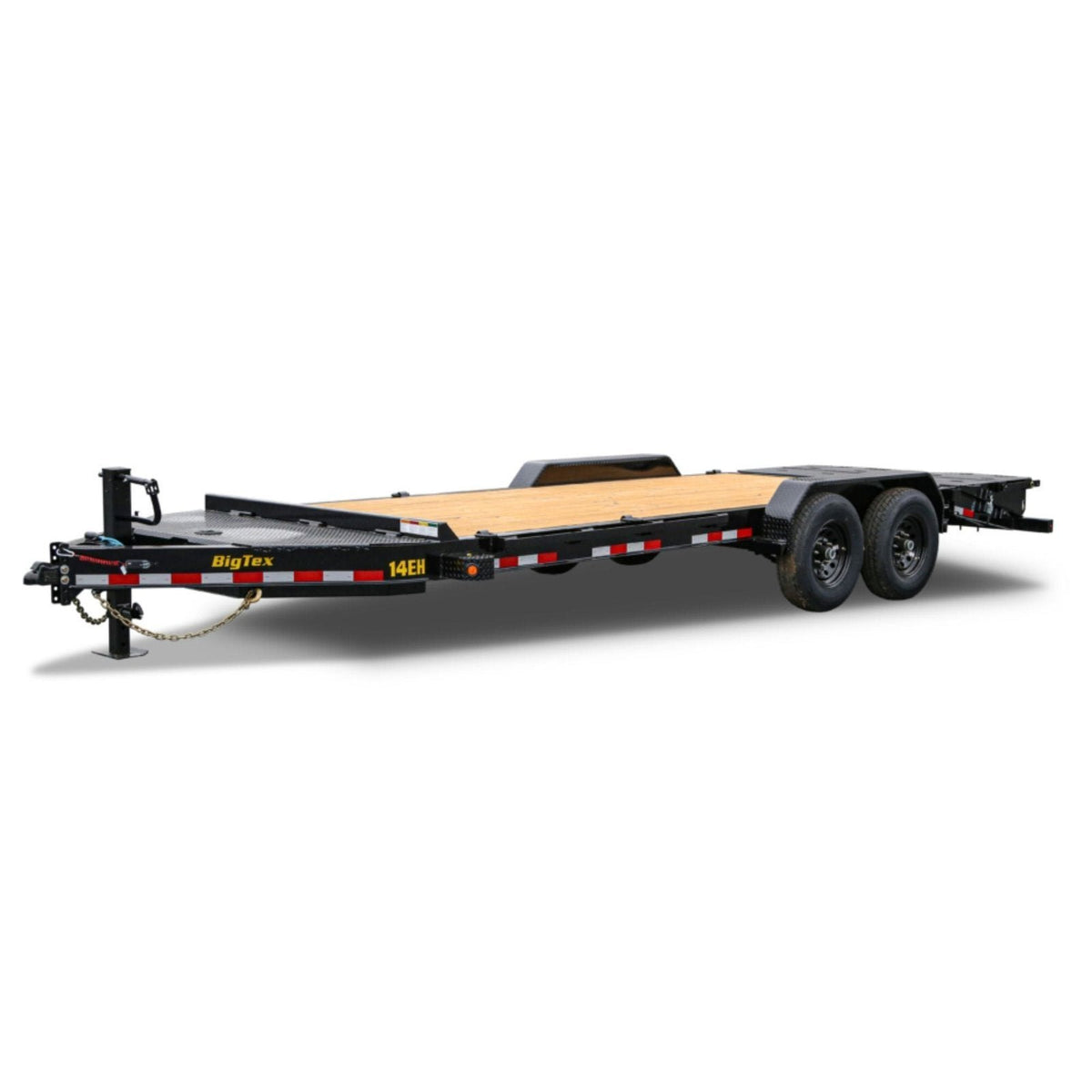

Big Tex Heavy Duty Tandem Axle Seamless I-Beam Equipment Trailer | 14EH

Part of the all-new X-Series, the 14EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 14EH features APEX Fortified Lumber for superior deck durability and a Mega-Sized Toolbox for added storage capacity. It’s enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 14EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.

Standard Feature

Available Options

Axles

2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes on All Hubs

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Coupler

Adjustable 2-5/16” Demco EZ Latch

Adjustable Pintle in Channel in Lieu of Coupler

Adjustable 2-5/16″ Demco EZ Latch Gooseneck Coupler

Safety Chains

3/8″ Grade 70 w/ Safety Latch Hook (2 ea)

Jack

12,000# Drop-Leg Jack (Side Wind)

Frame

8″ I-Beam

Cross-Members

3″ Channel on 16″ Centers

Front Stop Rail

3/16″ Fabricated Front Stop Rail

Floor

APEX Fortified Lumber

Fenders

9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)

Ramps

5′ Tall, 16″ Stand Up Rams (Spring Assisted)

36″ Wide Mega Ramps (D3 Models Only)

Super-Wide Ramps (60″ Tall x 30″ Wide) w/ Blackwood Pro-Filled Dovetail

Dovetail

40” Cleated Dovetail

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST235/80 R-16 Load Range E Radial Tires

Tire Upgrade (ST235/80 R-16 LR-G)

Bolt Pattern

8-Lug

Spare Mount

Front Spare Tire Mount

Spare Tire

Not Included

Spare Tire & Wheel (ST235/80 R-16 LR-E)

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Rubrail

Rub Rail Along Both Sides

Tie-Downs

(6) 5/8″ D-Rings

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable

Storage

Lockable Toolbox Between Risers on Gooseneck Model Mega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only)

Steps & Handles

Convenient Side-Step to Access Deck

Model

Pull Type

GVWR

GAWR (Ea. Axle)

Empty Weight

Cargo Capacity

Bed Length

Bed Width

14EH-16D3A

Bumperpull

15400 lbs

7000 lbs

2860 lbs

12540 lbs

16′

83″

14EH-18D3A

3020 lbs

12380 lbs

20′

14EH-20D3A

3150 lbs

12250 lbs

14EH-22D3A

3330 lbs

12070 lbs

22′

14EHG-20D3A

Gooseneck

15900 lbs

3740 lbs

12160 lbs

14EHG-22D3A

3940 lbs

11960 lbs

14EHG-24D3A

4140 lbs

11760 lbs
