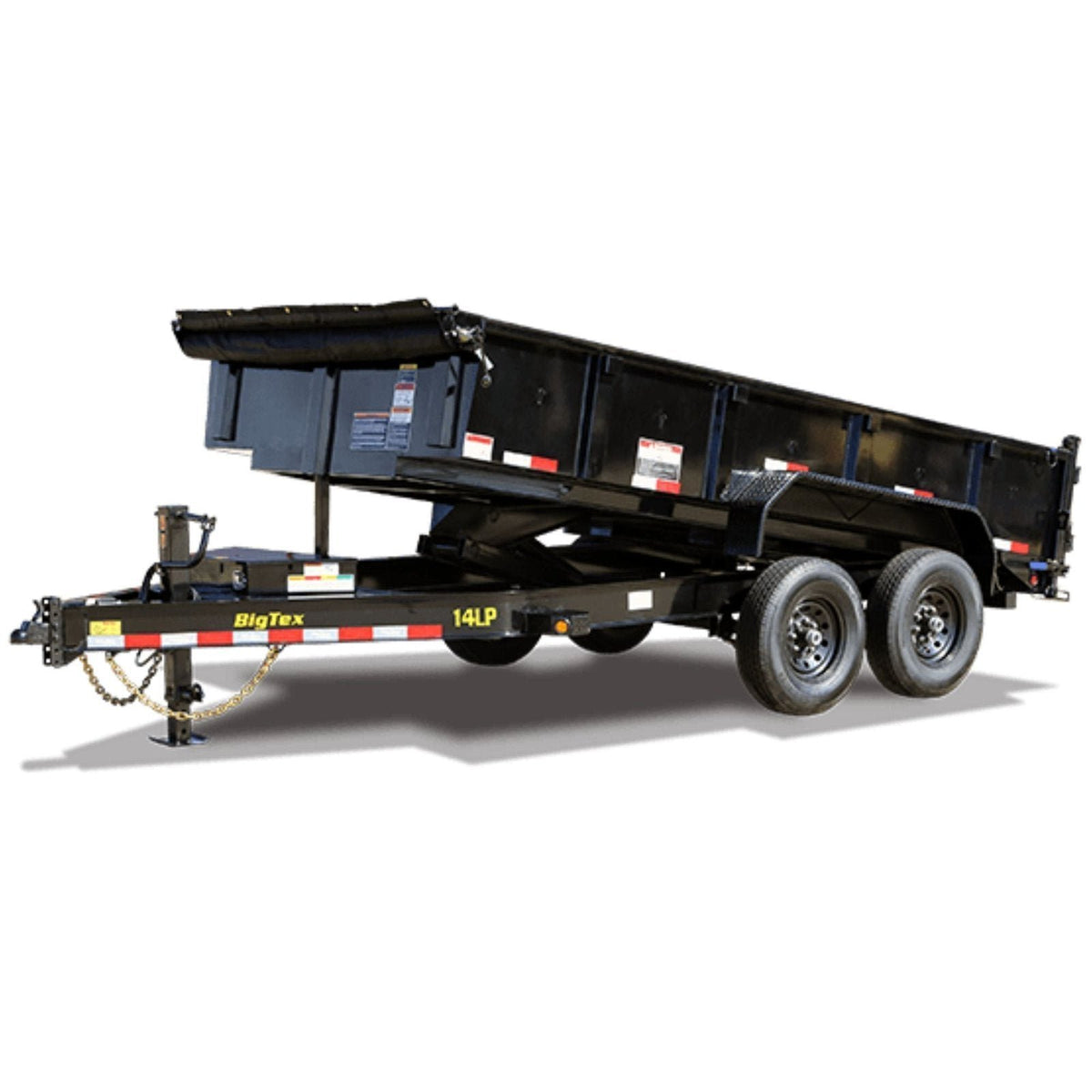

Big Tex Heavy Duty Ultra Low Profile Dump Trailer | 14LP

Tough as nails for the toughest, most demanding projects, the 14LP Heavy Duty Low Profile Dump Trailer is designed for the construction workers and those transporting large quantities of materials or equipment. And while it’s built to handle heavy-duty hauling tasks, it’s also packed with features to make the toughest jobs easier such as an ultra-low profile deck and side step to provide convenience and ease of use during loading, unloading, and transportation of materials.

Standard Feature

Available Options

Axles

2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs

Drop Axles (Lowers Deck Height to 24″ from Ground)

Brakes

Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Tongue

8″ Seamless I-Beam Integrated w/ Frame (10#)

Coupler

2-5/16″ Ball, Adjustable Demco EZ Latch Coupler

Adjustable Pintle in Channel in Lieu of Coupler

Safety Chains

3/8″ Grade 70 w/ Safety Latch Hook (2 ea)

Jack

12,000# Drop-Leg Jack (Side Wind)

12,000# Elec/Hyd. Jack BY Stillwell™

Frame

8″ Seamless I-Beam (10#)

Cross-Members

3″ Channel on 16″ Centers

Floor

10 Gauge Smooth Steel

Upgrade Floor to 7-Gauge Steel

Fenders

9″ x 72″ 14 Ga. Diamond Plate Double Broke

Ramps

Not Included

6.5’ Slide In Ramp Package

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST235/80 R-16 Load Range E Radial Tires

Tire Upgrade (ST235/80 R-16 LR-G)

Bolt Pattern

8-Lug

Wheels

Black Mod Steel

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire & Wheel (ST235/80 R-16 LR-E)

Spare Tire Upgrade (ST235/80 R-16 LR-G)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Tie-Downs

(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable

Battery

12V Deep Cycle

Charger

5A 110V on Board Battery Charger

Gate

Rear Combo Gate (Barn Doors & Spreader Gate)

J-Hooks

Along sides and rear for Cargo Control

Power

Power Up/Power Down & Gravity Down Hydraulic Pump

5 Watt Solar Charger

Wireless Remote

Ram

Self-Contained Scissor

Sides

24″ Tall (10 Ga) with formed Channel Supports

24″ Expanded Metal Side Extensions

3′ Solid Sheet Metal Sides

4′ Solid Sheet Metal Sides

Stabilizers

Rear Stabilizer Stands

Steps

Convenient Side-Step to Access Top Rail

Storage

Lockable Pump and Battery Box mounted in Front of Bed

Tarp

Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders

Top Rail

3″x 2″ Rectangular Tubing

Steps & Handles

Model

14LP-16

14LP-14

14LP-12

Pull Type

Bumperpull

GVWR

14000 lbs

GAWR (Ea. Axle)

7000 lbs

Empty Weight

4250 lbs

4180 lbs

3870 lbs

Cargo Capacity

9750 lbs

9820 lbs

10130 lbs

Bed Length

16′

14′

12′

Bed Width

83″

A

192″

168″

144″

B

115-3/4″

100″

C

76-1/4″

68″

Tongue Length

51-1/8″
