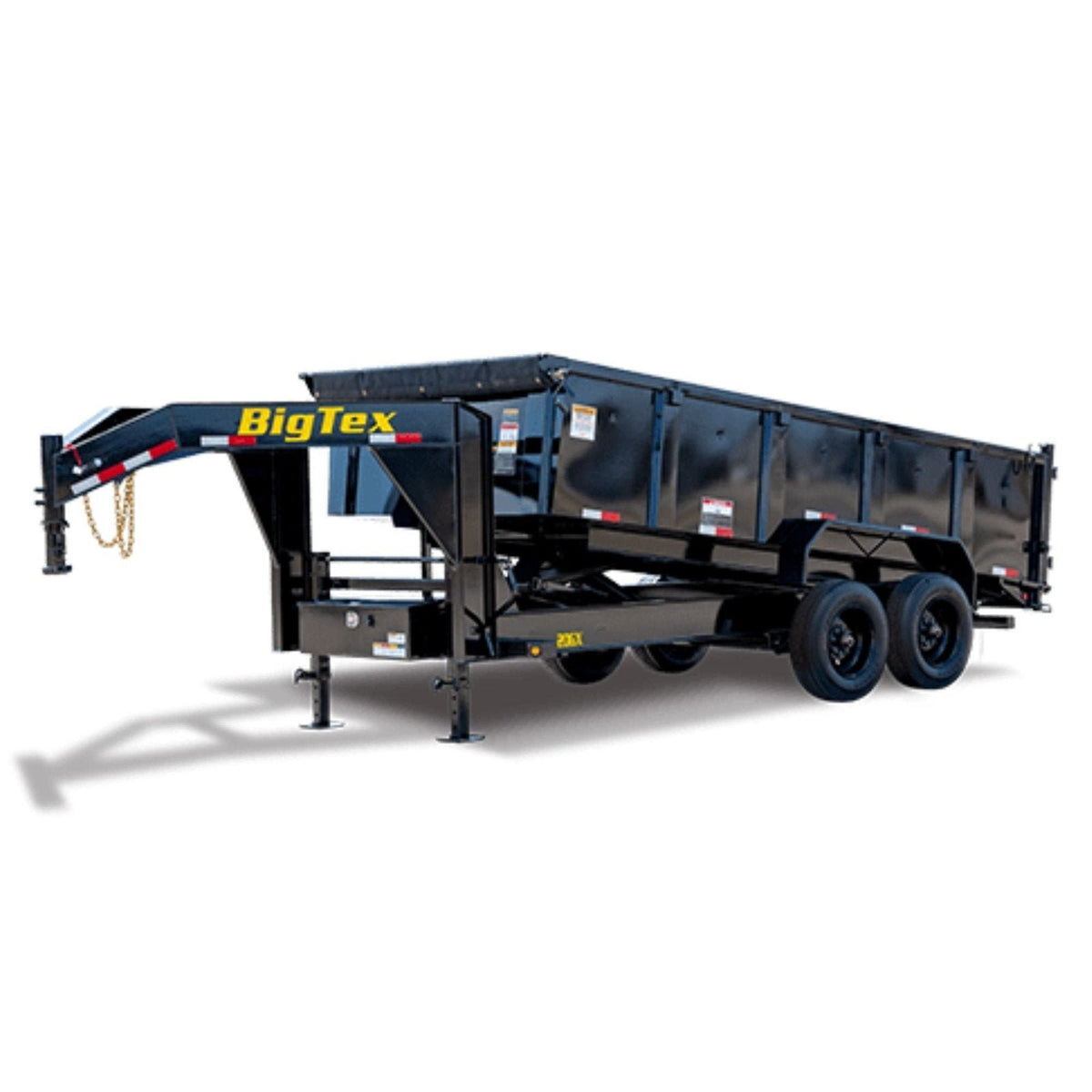

Big Tex Mega Duty Tandem Axle Gooseneck Dump Trailer | 20GX-16

Need a trailer with muscle? Built to take on heavy-duty, hefty loads, the 20GX Mega Duty Tandem Axle Gooseneck Dump has the power you need. Tough enough for the most demanding industries and environments, this trailer is packing 10,000 lbs. Torsion Axles with Super Single Wheels for big hauls. And you won’t have to worry about space because the 20GX has a rugged dump box with high sides that add cubic capacity for larger loads. Best of all, its user-friendly low-profile design and optional slide-in ramp package make loading and unloading heavy equipment a quick and easy job for anyone. Next time the going gets tough, put some muscle into it.

Standard Feature

Available Options

Axles

2 – 10,000# cambered axles with Oil Bath and Valcrum Caps

Brakes

Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

Torsion Axles

Tongue

10″ I-Beam

Coupler

Round Adjustable Pin 2-5/16” Gooseneck Coupler

Safety Chains

3/8″ Grade 70 w/ Safety Latch Hook (2 ea)

Jack

Dual 12,000# Drop-Leg Jack (Side Wind)

Dual 2-Speed Landing Gear

Frame

Cross-Members

3″ Channel on 16″ Centers

Floor

7 Gauge Smooth Steel

Fenders

9″ x 72″ 14 Ga. Diamond Plate Double Broke

Ramps

Not Included

6.5’ Slide In Ramp Package

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST215/75 R-17.5 Load Range H Radial Tires

Bolt Pattern

8-Lug

Wheels

Black Mod Steel

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire & Wheel (ST215/75 R-17.5 LR-H)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Tie-Downs

(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control

Break-Away Kit

Complete Breakaway System w/ Zip Breakaway Cable

Battery

12V Deep Cycle

Charger

5A 110V on Board Battery Charger

Deck On Neck

Removable Deck on the Neck- Bolt On (8′ W x 6′ L)

Gate

Rear Combo Gate (Barn Doors & Spreader Gate)

J-Hooks

Along sides and rear for Cargo Control

Power

Power Up/Power Down & Gravity Down Hydraulic Pump

5 Watt Solar Charger

Wireless Remote

Ram

Self-Contained Scissor

Sides

36″ Tall (10 Ga) with formed Channel Supports

Stabilizers

Rear Stabilizer Stands

Steps

Convenient Side-Step to Access Top Rail

Storage

Lockable Pump and Battery Box mounted between front Jacks

Tarp

Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders

Top Rail

3″x 2″ Rectangular Tubing

Steps & Handles

Model

20GX-16

Pull Type

Gooseneck

GVWR

22000 lbs

GAWR (Ea. Axle)

10000 lbs

Empty Weight

6550 lbs

Cargo Capacity

15450 lbs

Bed Length

16′

Bed Width

83″

A

192″

B

115-1/4″

C

76-3/4″

Tongue Length

92
