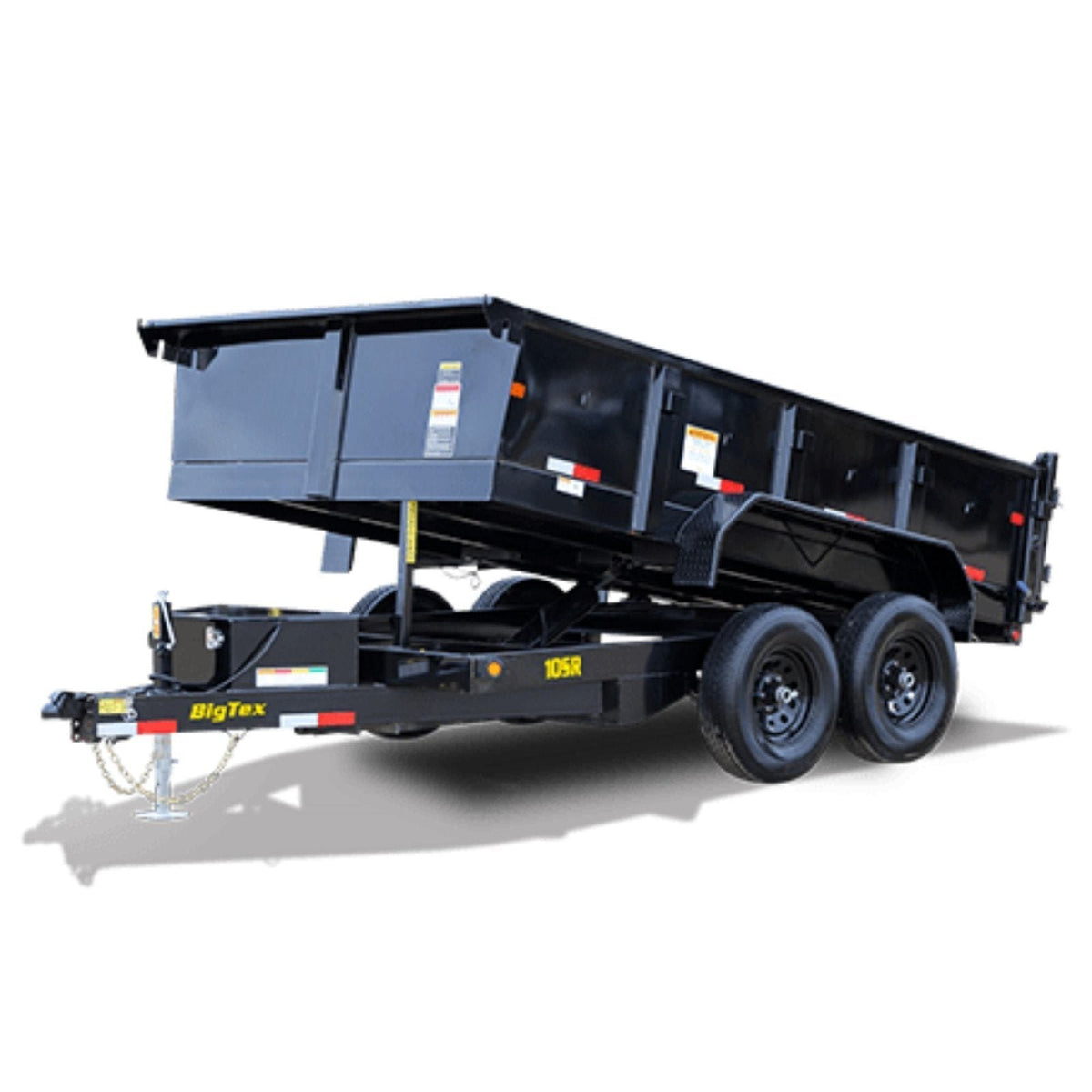

Big Tex Pro Series Tandem Axle Single Ram Dump Trailer | 10SR-12XLBK6SIR

Designed, built, and powder coated for the long haul, the 10SR Pro Series Tandem Axle Single Ram Dump Trailer is a medium-duty workhorse that has your back. Hauling dirt, gravel, mulch, or even manure? No problem. The 10SR is equipped with a straight ram hydraulic lifting system that makes dump outs a smoother and more productive experience. From homeowners and ranchers to construction workers, it’s time to let the 10SR do the hard work and save your back—keeping you ready for tomorrow and every day after.

Standard Feature

Available Options

Axles

2 – 5,200# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Tongue

6″ Channel

Coupler

Adjustable Forged 2-5/16”

Safety Chains

1/4” Grd. 70 w/Safety Latch Hook (2 each)

Jack

8,000# Top Wind

Frame

Cross-Members

3″ Channel on 16″ Centers

Floor

10 Gauge Smooth Steel

Fenders

9” x 72” 14 Ga. Diamond Plate Double Square Broke

Ramps

Not Included

6.5’ Slide In Ramp Package

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST235/80 R-16 Load Range E Radial Tires

Bolt Pattern

6-Lug

Wheels

Black Mod Steel

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST235/80 R-15 LR-E)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Tie-Downs

(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control

Break-Away Kit

Complete System with Breakaway Cable

Battery

12V Deep Cycle

Charger

5A 110V on Board Battery Charger

Gate

Rear Combo Gate (Barn Doors & Spreader Gate)

J-Hooks

Along sides and rear for Cargo Control

Power

Power Up/Power Down & Gravity Down Hydraulic Pump

Ram

Self-Contained Single Cylinder Lift

Sides

24″ Tall Sides (12-Gauge)

Storage

Lockable Pump and Battery Box mounted in Front of Bed

Tarp

Tarp Mounting Brackets on Front of Bed

Crank Style Roll Tarp

Top Rail

2″ x 2″ Square Tubing

Model

10SR-12XL

Pull Type

Bumperpull

GVWR

9990 lbs

GAWR (Ea. Axle)

5200 lbs

Empty Weight

3160 lbs

Cargo Capacity

6660 lbs

Bed Length

12′

Bed Width

83″

A

144

B

82

C

62

Tongue Length

41
