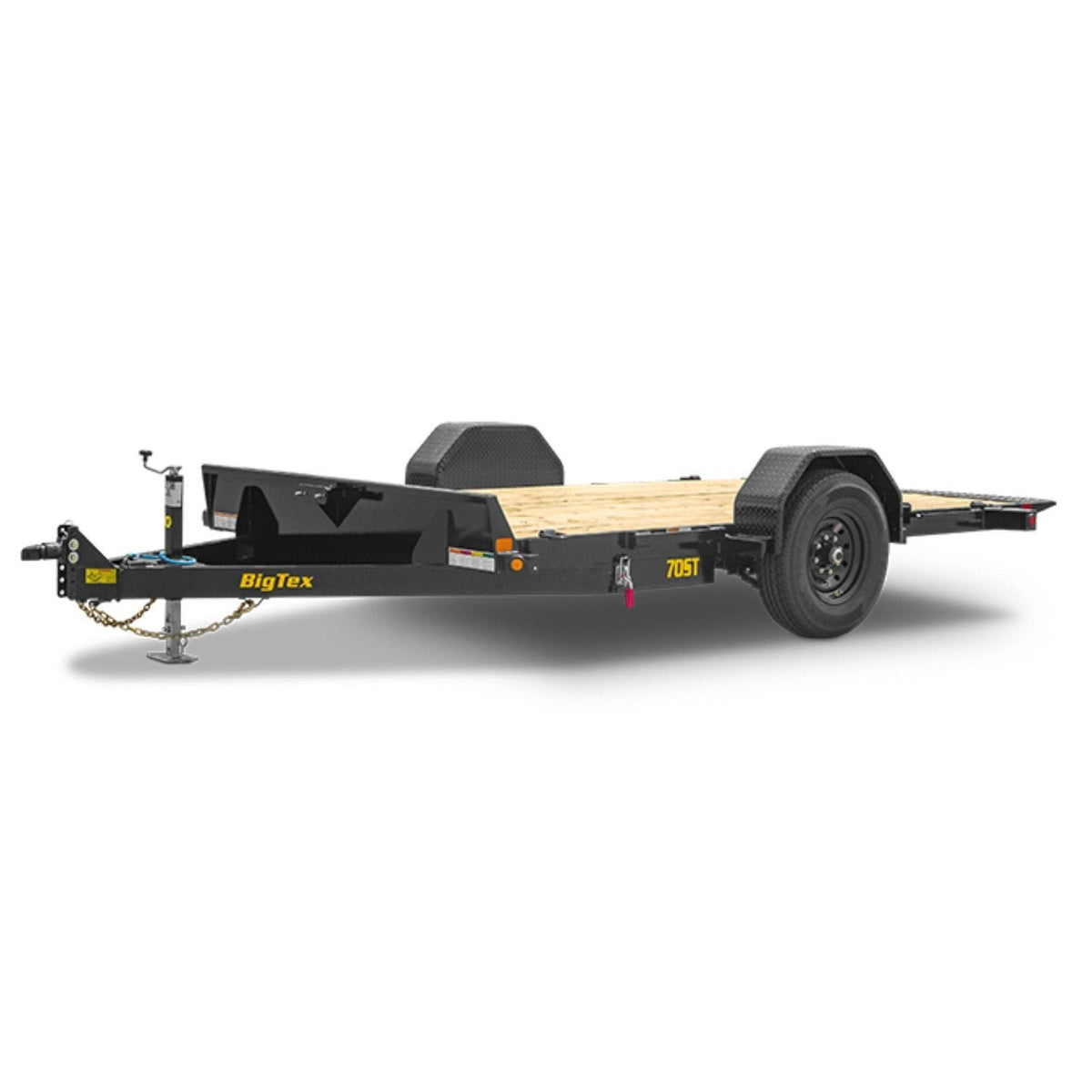

Big Tex Single Axle Tilt Trailer | 70ST

Experience the compact and hardworking 70ST Single Axle Tilt Trailer, a cost-effective way to haul a wide variety of smaller vehicles or light-duty equipment. From its smooth hydraulic dampening system to its torsion axles and superior deck design that reduces load angles, this trailer is equipped with the features you need to safely move your haul from point A to B. Delivering effortless loading and unloading at an exceptional value. It’s the smart choice for those watching their budgets with a close eye.

Standard Feature

Available Options

Axles

1 – 7,000# 4″ Drop Axle w/ Quick Lubricating Hubs

Brakes

Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

Multi-Leaf Slipper Spring w/ Equalizer

Coupler

2″ Forged, Adjustable

2-5/16” Forged Coupler in Adjustable Channel

2-5/16” Stamped Coupler in Adjustable Channel

Safety Chains

1/4” Grd. 70 w/Safety Latch Hook (2 each)

Jack

8,000# Set-Back, Drop-Leg Jack

Frame

5″ Channel

Cross-Members

3″ Channel on 16″ Centers

Front Stop Rail

3/16″ Fabricated Front Stop Rail

Floor

APEX Fortified Lumber

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)

1/8” Diamond Plate Steel Floor (Per Square Foot)

Fenders

9” x 36” Diamond Plate Double Square Broke (Removable)

Stake Pockets

Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

7-Way RV

Lights

Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

Sealed, Modular Cold-Weather Wiring Harness

Tires

ST235/80 R-16 Load Range E Radial Tires

Tire Upgrade (ST235/85 R-16 LR-G)

Bolt Pattern

8-Bolt

Spare Mount

Front Spare Tire Mount

Spare Tire

Not Included

Spare Tire & Wheel (ST235/80 R-16 LR-E)

Spare Tire Upgrade (ST235/80 R-16 LR-G)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Tilt Deck Dimensions

81″x13′ Wide (81″ Between Fenders) with 1/4″ Diamond plate Knife Edge

Tilt Deck Operation

Hydraulic Dampening With Deck Locking

Stationary Deck Area

3′ x 81″ (16′ Model)

Rubrail

Rub Rail Along Both Sides

Tie-Downs

(4) 5/8″ D-Rings

Extra 5/8″ D-Rings

Recessed D-Ring in Floor (Steel Floor Only)

Break-Away Kit

Complete Breakaway System w/ Zip™ Breakaway Cable and Charger

Tilt Deck Angle

12°

Model

70ST-16

70ST-13

Pull Type

Bumperpull

GVWR

7000 lbs

GAWR (Ea. Axle)

Empty Weight

2310 lbs

2110 lbs

Cargo Capacity

4690 lbs

4890 lbs

Bed Length

16′

13′

Bed Width

83″

A

192-7/8″

157-1/8″

B

110-1/2″

74-1/2″

Tongue Length

53″
