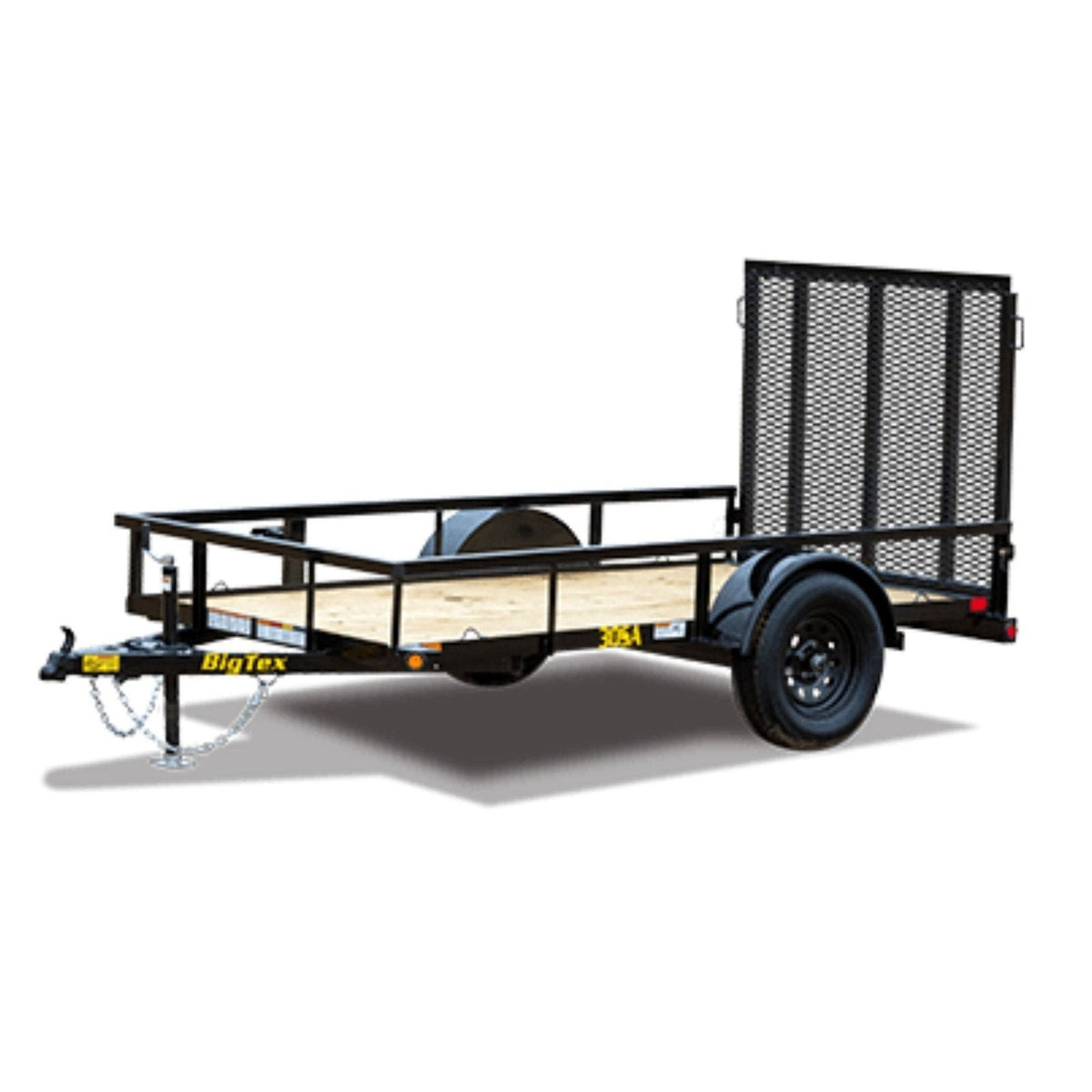

Big Tex Single Axle Utility Trailer | 30SA

Hauling around the house and garden, unsure about what tasks you’re going to face in the day ahead? Then haul with confidence with the 30SA Single Axle Utility Trailer. Equipped with an angled frame and professional-grade finish to easily haul large ATVs and zero-turn mowers, the 30SA offers a reliable and cost-effective way to be prepared for whatever hauling needs come your way.

STANDARD FEATURE

AVAILABLE OPTIONS

Axles

3,500# Premium, Cambered Axle with Quick-Lubricating Hubs

Brakes

Brake Flanges for Easy Brake Addition

Electric Brakes w/ Complete Break-Away Kit

Suspension

Multi-Leaf Slipper Spring

Coupler

2″ A-Frame

2″ Forged Coupler

Safety Chains

1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

2,000# Top Wind, Set-Back Jack with Removable Sand Foot

2,000# Fold-Up Jack

Frame

3″ x 2″ x 3/16″ Angle

Cross-Members

3” x 2” x 3/16” Angle

Floor

Treated Pine Floor

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)

Fenders

9″ x 32″ Rolled Formed w/ Back

Ramps

4′ Tall Rear Ramp Gate w/ Coil Spring Assist

5′ Tall Rear Ramp Gate w/ Coil Spring Assist

Stake Pockets

Additional Stake Pockets (Each)

Trailer Plug

4-Way Flat w/ Loom

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Grommet-Mounted Lifetime L.E.D. Lighting

Tires

ST205/75 R-15 Load Range C

Bolt Pattern

5 Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST205/75R-15 LR-C)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Tie-Downs

(4) Tie Down Loops Inside Bed

Additional Tie Loops

Sides

17″ Tall Open sides with 2” Angle uprights and 2″ x 2″ Square Tubing Top Rail

2′ High Sides (Open, Total Height with Top Rail)

3’ High Sides (Open, total height with Top Rail)

4’ High Sides (Open, total height with Top Rail)

Car Hauler Style (No Side Rails)

Enclose Sides w/ Expanded Metal (Per Square Foot)

Enclose Sides w/ Sheet Metal (Per Square Foot)

MODEL

30SA-8

PULL TYPE

Bumperpull

GVWR

2995 lbs

GAWR (EA. AXLE)

3500 lbs

EMPTY WEIGHT

663 lbs

CARGO CAPACITY

2332 lbs

BED LENGTH

8′

BED WIDTH

60″

A

97-1/2″

B

61″

C

36-1/2”

TONGUE LENGTH

36-1/8″

30SA-10

723 lbs

2272 lbs

10′

121-1/2”

73”

48-1/2”
