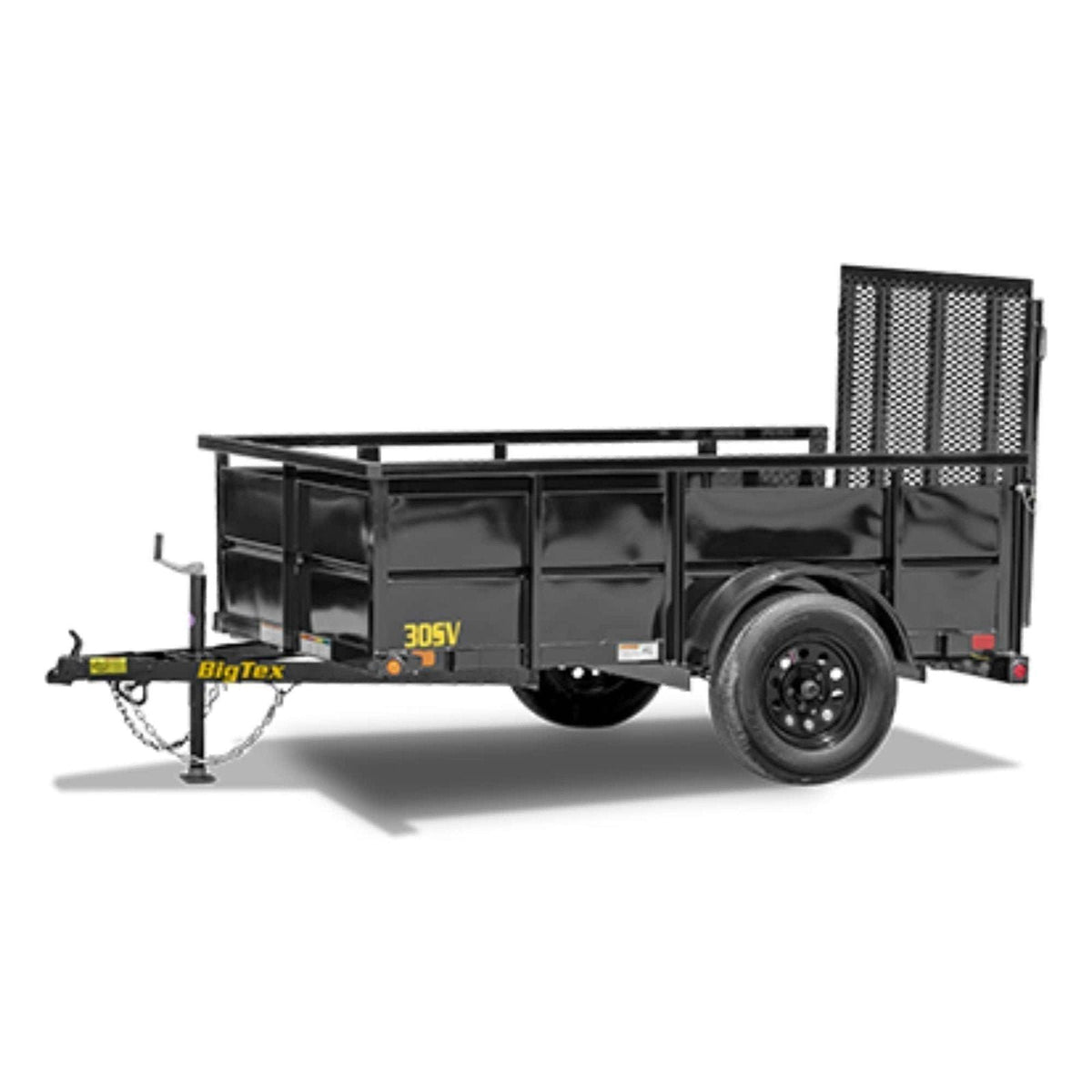

Big Tex Single Axle Vanguard Trailer | 30SV

When it’s time to work, it’s time for the 30SV Single Axle Vanguard Trailer. Built-strong to haul your landscaping equipment without hassle from job to job, the 30SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

Standard Feature

Available Options

Axles

3,500# Premium, Cambered Axle with Quick-Lubricating Hubs

Brakes

Brake Flanges for Easy Brake Addition

Electric Brakes w/ Complete Break-Away Kit

Suspension

Multi-Leaf Slipper Spring

Coupler

Demco EZ Latch

2″ Forged Coupler

Safety Chains

1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

2,000# Top Wind, Set-Back Jack

2,000# Fold-Up Jack

Frame

3″ x 2″ x 3/16″ Angle

Cross-Members

3” x 2” x 3/16” Angle

Floor

Treated Pine or Douglas Fir

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)

Fenders

9″ x 32″ Rolled Formed w/ Back

Ramps

4′ Tall Rear Ramp Gate w/ Coil Spring Assist

5′ Tall Rear Ramp Gate w/ Coil Spring Assist

Stake Pockets

Additional Stake Pockets (Each)

Trailer Plug

4-Way Flat w/ Loom

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Grommet-Mounted Lifetime L.E.D. Lighting

Tires

ST205/75 R-15 Load Range C

Bolt Pattern

5 Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST205/75R-15 LR-C)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Tie-Downs

(4) Tie Down Loops Inside Bed

Additional Tie Loops

Sides

28-1/2″ Tall Sides w/ 24″ V-Crimped Steel Panels (16 Ga.)

Storage

Bolt-On Landscape Box (24″ x 24″ x 64-1/2″)

Top Rail

2″ x 2″ Square Tubing

MODEL

30SV-08

PULL TYPE

Bumperpull

GVWR

2995 lbs

GAWR (EA. AXLE)

3500 lbs

EMPTY WEIGHT

870 lbs

CARGO CAPACITY

2125 lbs

BED LENGTH

10′

BED WIDTH

60″

A

97-1/2″

B

61″

C

36-1/2″

TONGUE LENGTH

36-1/8″

30SV-10

970 lbs

2025 lbs

12′

121-1/2″

73″

48-1/2″

30SV-12

1070 lbs

1925 lbs

14′

145-1/2”

85”

60-1/2”
