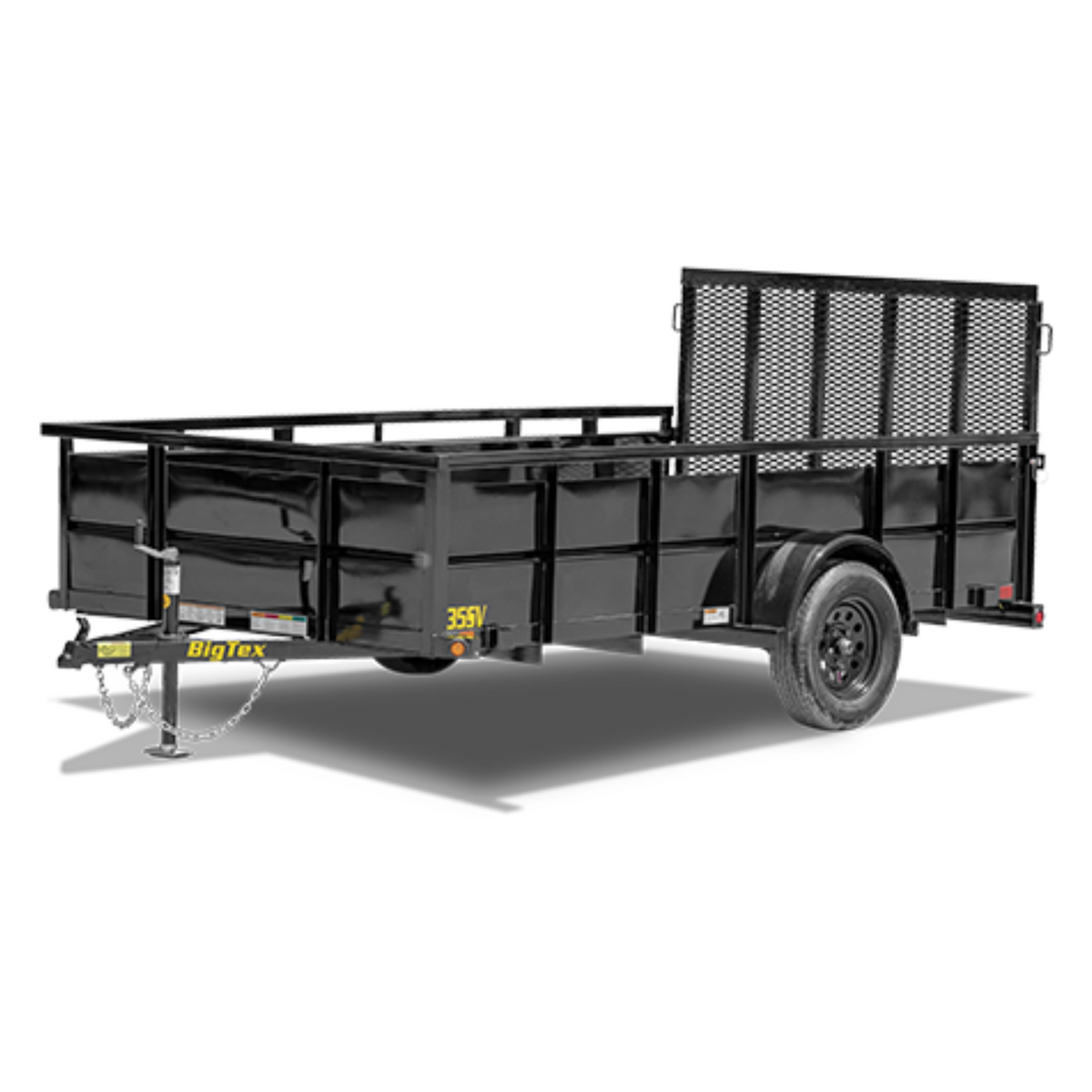

Big Tex Single Axle Vanguard Trailer | 35SV

On the job and need a trailer with a bit more space to haul landscaping equipment and tools? Then it’s time to get to work with the 35SV Single Axle Vanguard Trailer. Designed to haul without hassle from job to job, the 35SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

Standard Feature

Available Options

Axles

3,500# Premium, Cambered Axle with Quick-Lubricating Hubs

Brakes

Brake Flanges for Easy Brake Addition

Electric Brakes w/ Complete Break-Away Kit

Suspension

Multi-Leaf Slipper Spring

Coupler

Demco EZ Latch

2″ Forged Coupler

Safety Chains

1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

2,000# Top Wind, Set-Back Jack

2,000# Fold-Up Jack

Frame

3″ x 2″ x 3/16″ Angle

Cross-Members

3” x 2” x 3/16” Angle

Floor

Treated Pine or Douglas Fir

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)

Fenders

9″ x 32″ Rolled Formed w/ Back

Ramps

4′ Tall Rear Ramp Gate w/ Coil Spring Assist

5′ Tall Rear Ramp Gate w/ Coil Spring Assist

Stake Pockets

Additional Stake Pockets (Each)

Trailer Plug

4-Way Flat w/ Loom

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Grommet-Mounted Lifetime L.E.D. Lighting

Tires

ST205/75 R-15 Load Range C

Bolt Pattern

5 Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST205/75R-15 LR-C)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Tie-Downs

(4) Tie Down Loops Inside Bed

Additional Tie Loops

Sides

28-1/2″ Tall Sides w/ 24″ V-Crimped Steel Panels (16 Ga.)

Storage

Bolt-On Landscape Box for (24″ x 24″ x 81-1/2″)

Top Rail

2″ x 2″ Square Tubing

MODEL

35SV-10

PULL TYPE

Bumperpull

GVWR

2995 lbs

GAWR (EA. AXLE)

3500 lbs

EMPTY WEIGHT

1100 lbs

CARGO CAPACITY

1895 lbs

BED LENGTH

10′

BED WIDTH

77″

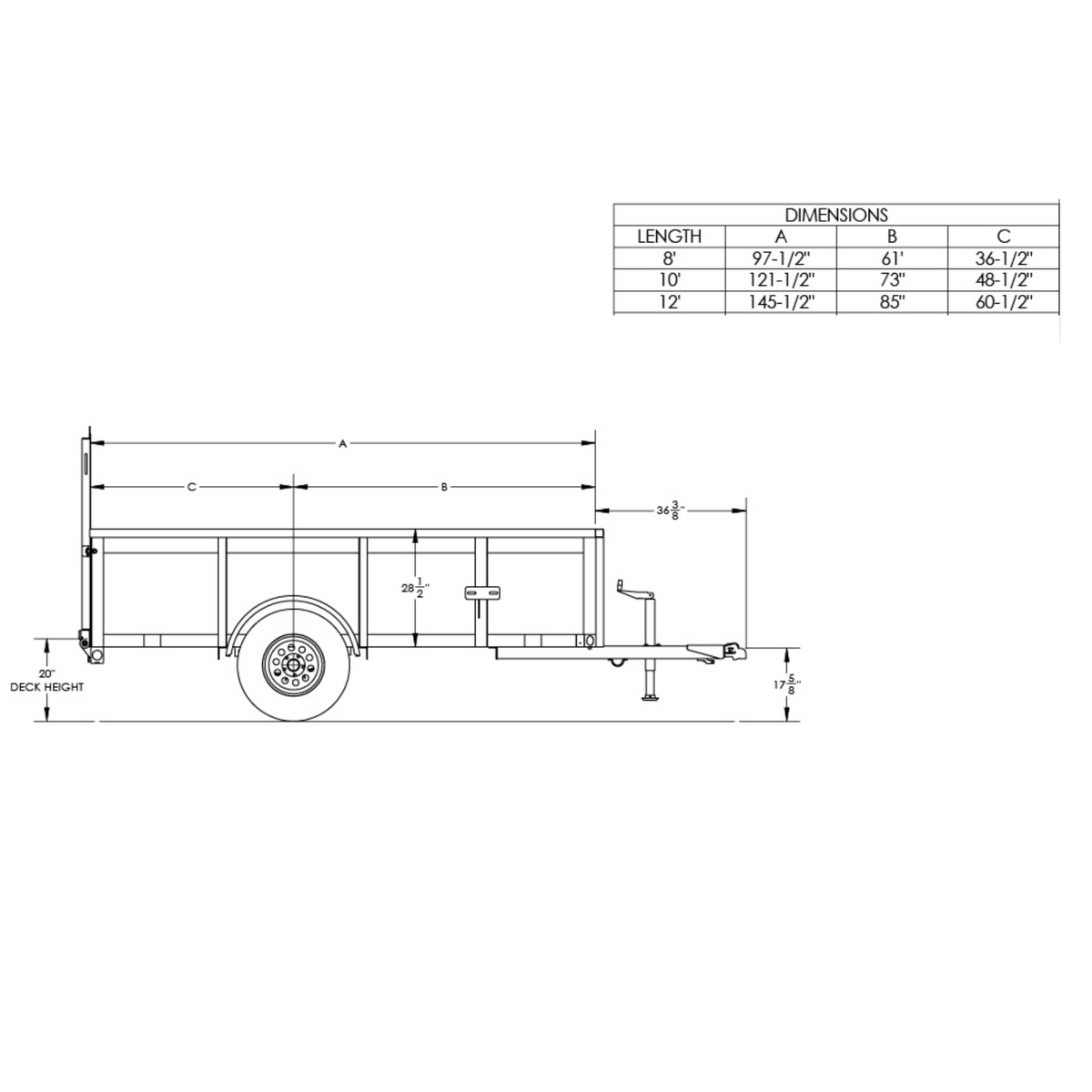

A

121-1/2″

B

73″

C

48-1/2″

TONGUE LENGTH

36-1/8″

35SV-12

1290 lbs

1705 lbs

12′

145-1/2”

85”

60-1/2”

35SV-14

1480 lbs

1515 lbs

14′

169-1/2”

97”

72-1/2”
