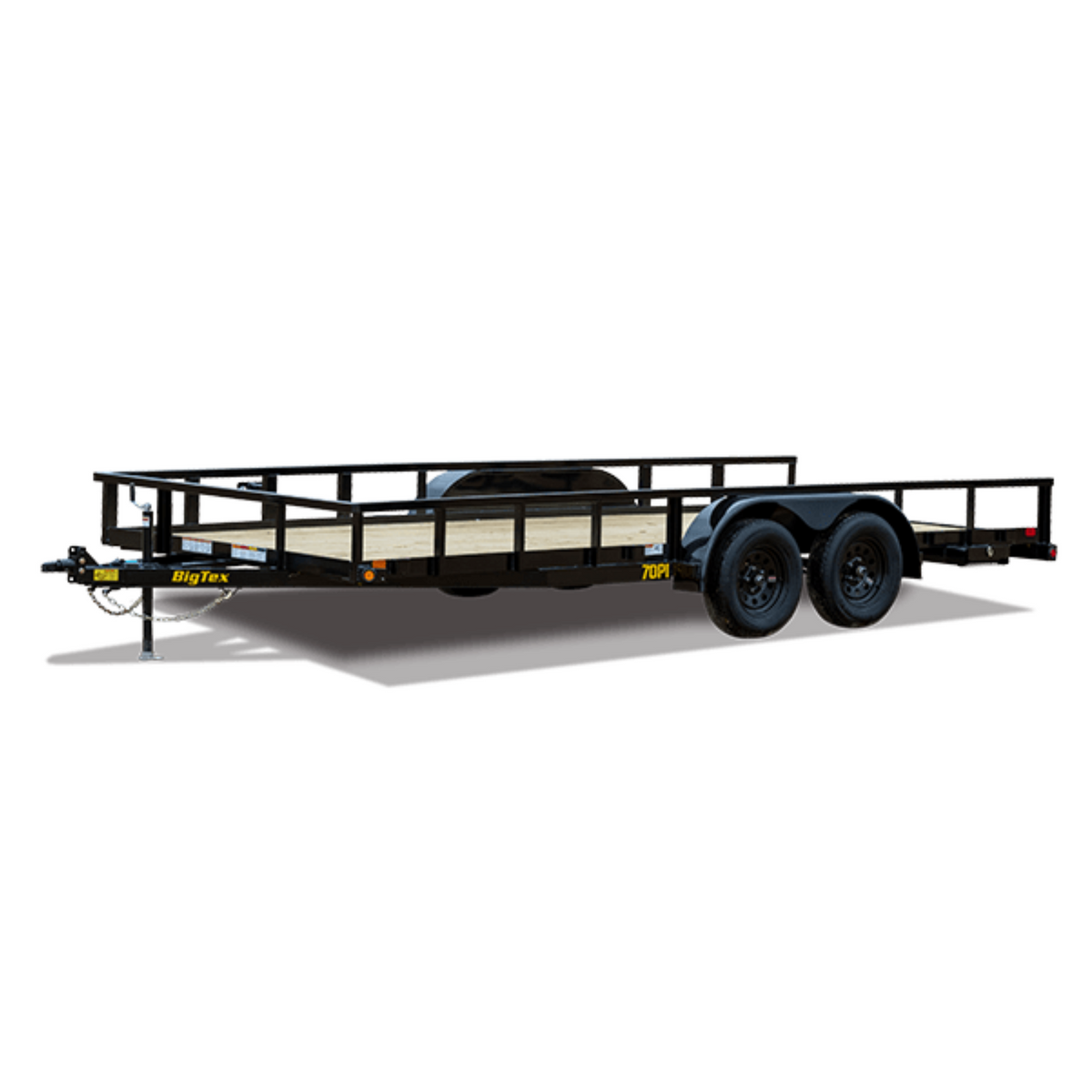

Big Tex Tandem Axle Pipe Utility Trailer | 70PI-X

When it comes to hauling light-duty equipment on the farm or ranch, there’s nothing more versatile than the 70PI-X Tandem Axle Pipe Top Utility Trailer. Coming standard with an extra wide 83’’ wide deck, this trailer is built to transport small equipment and other loads for agricultural applications. It’s sturdy. It’s durable. It’s dependable. It’s everything you need in a cost-effective—yet adaptable—utility trailer that gets the job done from sunrise till sunset.

STANDARD FEATURE

AVAILABLE OPTIONS

Axles

2 – 3,500# Premium, Cambered Axles with Quick-Lubricating Hubs

Brakes

Electric Brake on Front Axle

Electric Brakes on 2nd Axle

Suspension

Multi-Leaf Spring w/ Equalizer

Coupler

2″ Demco EZ- Latch

2-5/16” Forged Coupler2-5/16” Stamped Coupler

Safety Chains

1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)

Jack

2,000# Top Wind, Set-Back Jack with Removable Sand Foot

8,000# Drop-Leg Jack

2,000# Fold-Up Jack

Frame

4″ x 3″ x 1/4″ Angle

Cross-Members

3” x 2” x 3/16” Angle

Floor

Treated Pine Floor

Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot)

Fenders

9″ x 72″ Rolled Formed w/ Back

Ramps

4′ Slide-In Angle Ramps

4′ Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist

4′ Tall Rear Ramp Gate w/ Coil Spring Assist

5′ Stand Up Ramps

5′ Tall Rear Ramp Gate w/ Coil Spring Assist

4′ Heavy Duty Integrated Ramp Gate w/ Coil Spring

5′ Heavy Duty Integrated Ramp Gate w/ Coil Spring

Stake Pockets

Additional Stake Pockets (Each)

Trailer Plug

7-Way RV

Lights

L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring

Grommet-Mounted Lifetime L.E.D. Lighting

Tires

ST205/75 R-15 Load Range C

Bolt Pattern

5 Bolt

Spare Mount

Side Spare Tire Mount

Spare Tire

Spare Tire (ST205/75R-15 LR-C)

Spare Tire (ST225/75R-15 LR-D)

Paint Type

Professional Finish w/ Primer Standard

Paint Color

Black

Red

Grey

White

Desert Tan

Jet Blue

Slime Green

Implement Green

Equipment Orange

Medium Yellow

Sides

17″ Tall Open sides with 3″x 2” Angle uprights and 2″ x 2″ Square Tubing Top Rail

2′ High Sides (Open, Total Height with Top Rail)

3’ High Sides (Open, total height with Top Rail)

4’ High Sides (Open, total height with Top Rail)

Car Hauler Style (No Side Rails)

Enclose Sides w/ Expanded Metal (Per Square Foot)

Enclose Sides w/ Sheet Metal (Per Square Foot)

MODEL

70PI-14X

PULL TYPE

Bumperpull

GVWR

7000 lbs

GAWR (EA. AXLE)

3500 lbs

EMPTY WEIGHT

1780 lbs

CARGO CAPACITY

5220 lbs

BED LENGTH

14′

BED WIDTH

83″

A

169-1/2″

B

103″

C

72-1/2″

TONGUE LENGTH

44-1/2″

70PI-16X

1860 lbs

5140 lbs

16′

193-1/2″

115″

78-1/2″

70PI-18X

1940 lbs

5060 lbs

18′

217-1/2″

127″

90-1/2″

70PI-20X

2020 lbs

4980 lbs

20

240″

138″

102″
