Description:

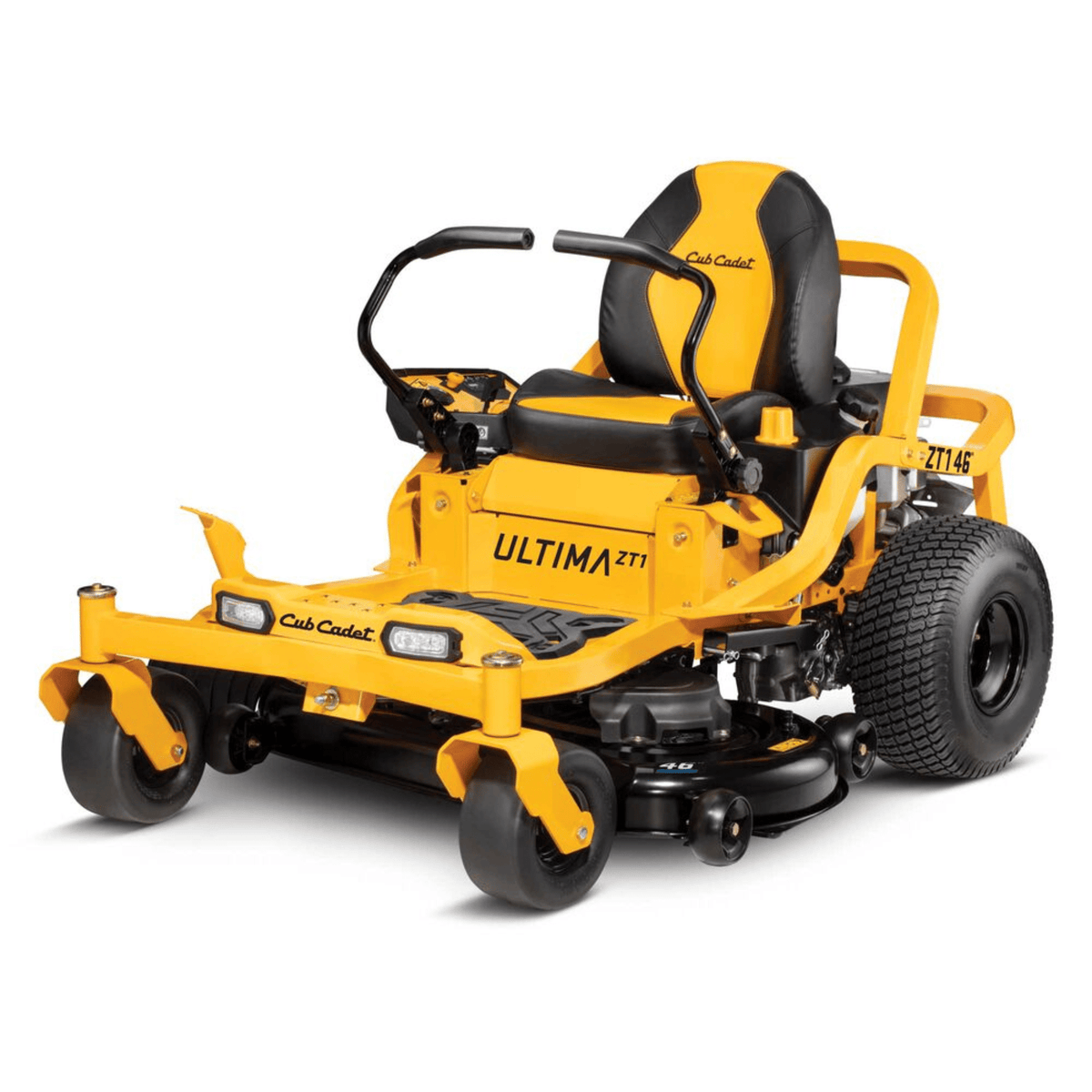

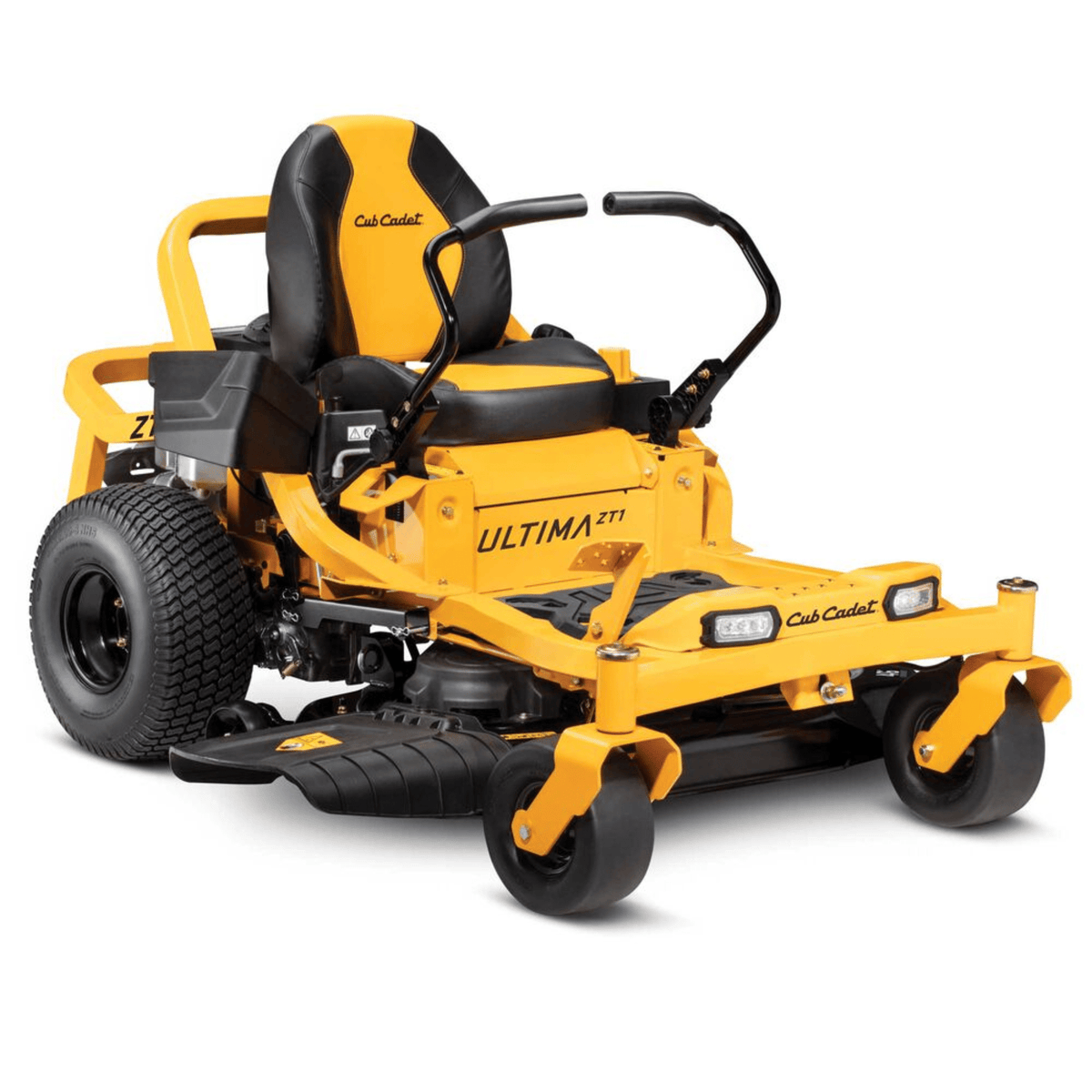

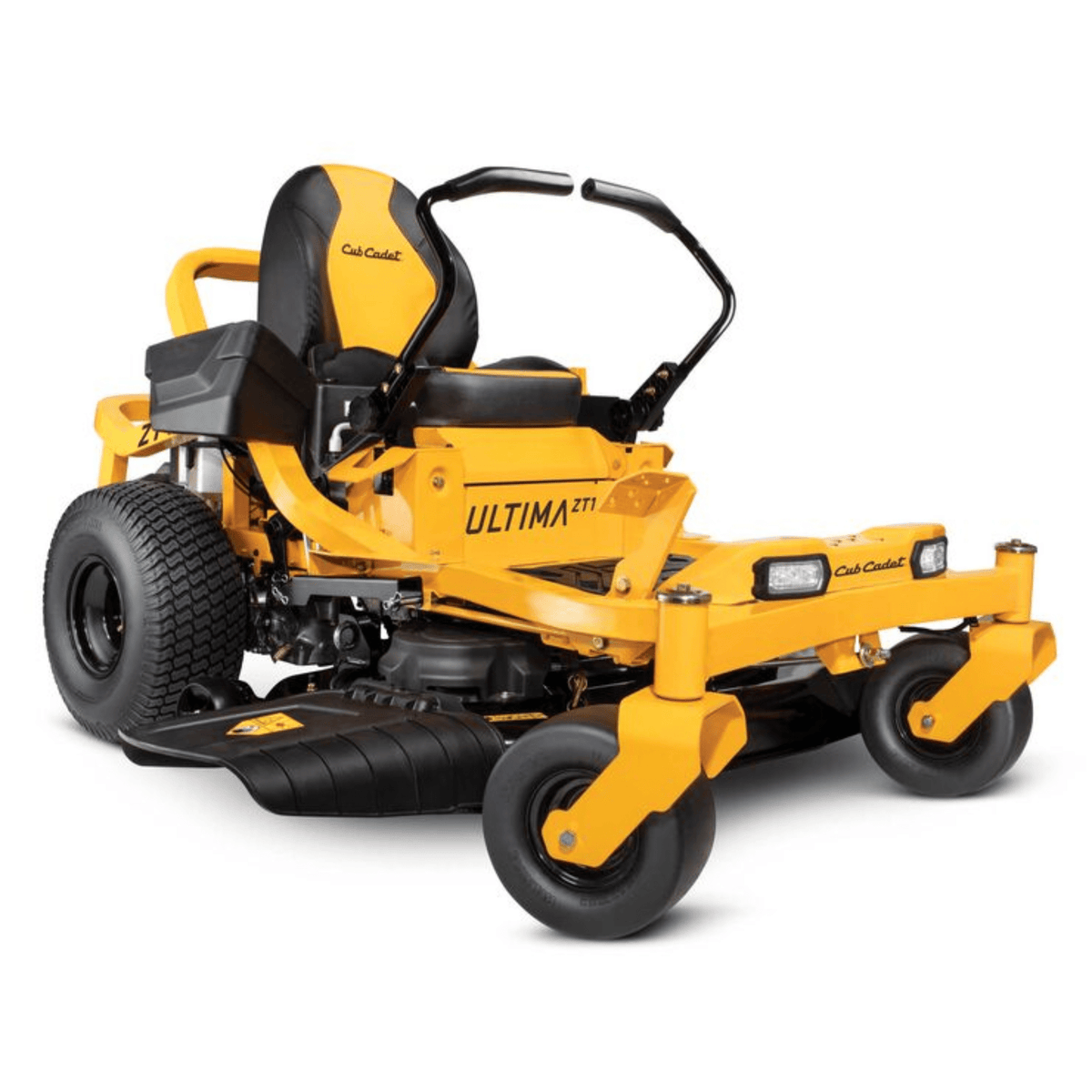

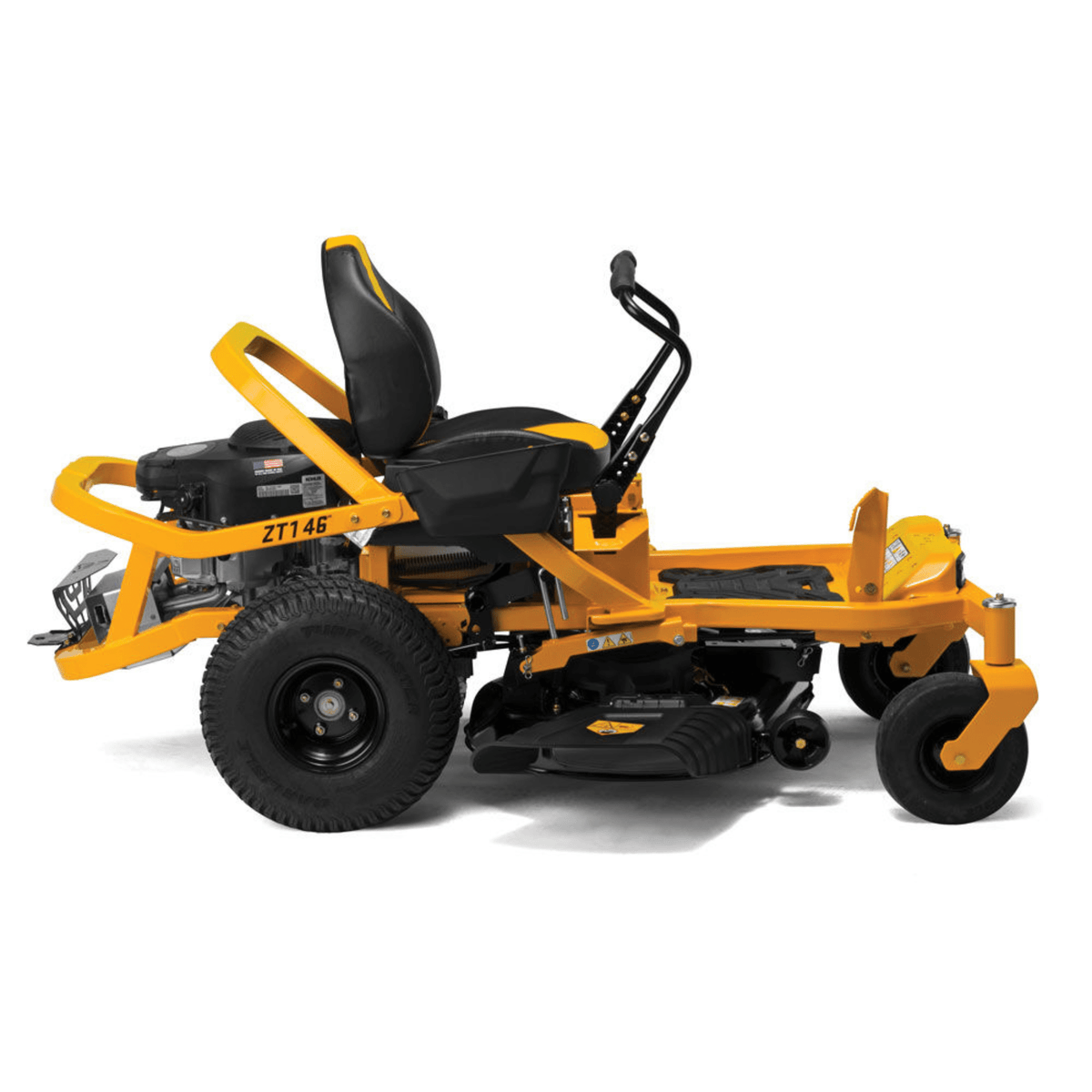

The Cub Cadet® Ultima Series ZT1 46 is a 46-inch zero-turn lawn mower with a 21.5 HP engine and an AeroForce™ fabricated deck. It is built to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its durable tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.

Features:

• A 21.5 HP*/726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
• A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear

Specification:

Engine

• Brand: Kawasaki®
• Series: FR Series
• Model Number: 651V
• Displacement: 726cc
• Output: 21.5 HP
• Cylinders: Twin
• Start Type: Electric (Ignition Key)
• Lubrication: Fully pressurized
• Oil Capacity: 2.0 qt. US (1.89 L)
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual Element
• Fuel Delivery: Carburetor
• Fuel Capacity: 3.5 gal. US (13.25 L)
• Charging System: 12 amp regulated
• Fuel Gauge: No

Battery

• Voltage: 12V
• CCA: 210 CCA
• Type: AGM (Absorbent Glass Mat)

Drive System

• Transmission: Hydro-Gear EZT 2200
• Type: Hydrostatic
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Width: 46 in
• Blades: 2
• Deck Material: 11-gauge steel
• Construction: Fabricated
• Engagement (PTO): Electric
• Lift System: Foot pedal with Dial Adjust
• Cutting Height Range: 1″ – 4.5″
• Deck Positions: 15
• Anti-Scalp Wheels: 2
• Deck Wash Port: No

Chassis

• Frame: 2″ x 2″ tubular steel
• Turning Radius: 0° (True Zero-Turn)
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Steering: Lap Bars
• Brakes: Disc
• Cruise Control: No
• Parking Brake: Integrated with Lap Bars

Comfort

• Seat Type: 20″ High-back
• Armrests: No
• Seat Adjustment: Knob
• Front Suspension: None

Wheels

• Rear Tires: 20″x 8″-8″
• Front Tires: 11″x 6″-5″
• Tread: Turf Master / Multi Trac

Features

• Hour Meter: Available Separately
• Mulch Kit: Available Separately
• Headlights: Dual LED
• Cup Holder: Yes
• Operator Presence System: Yes

Product Info

• Model Number: 17AIEACNA10
• Series: Ultima Series™ ZT

Warranty

• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not Applicable
