Description:

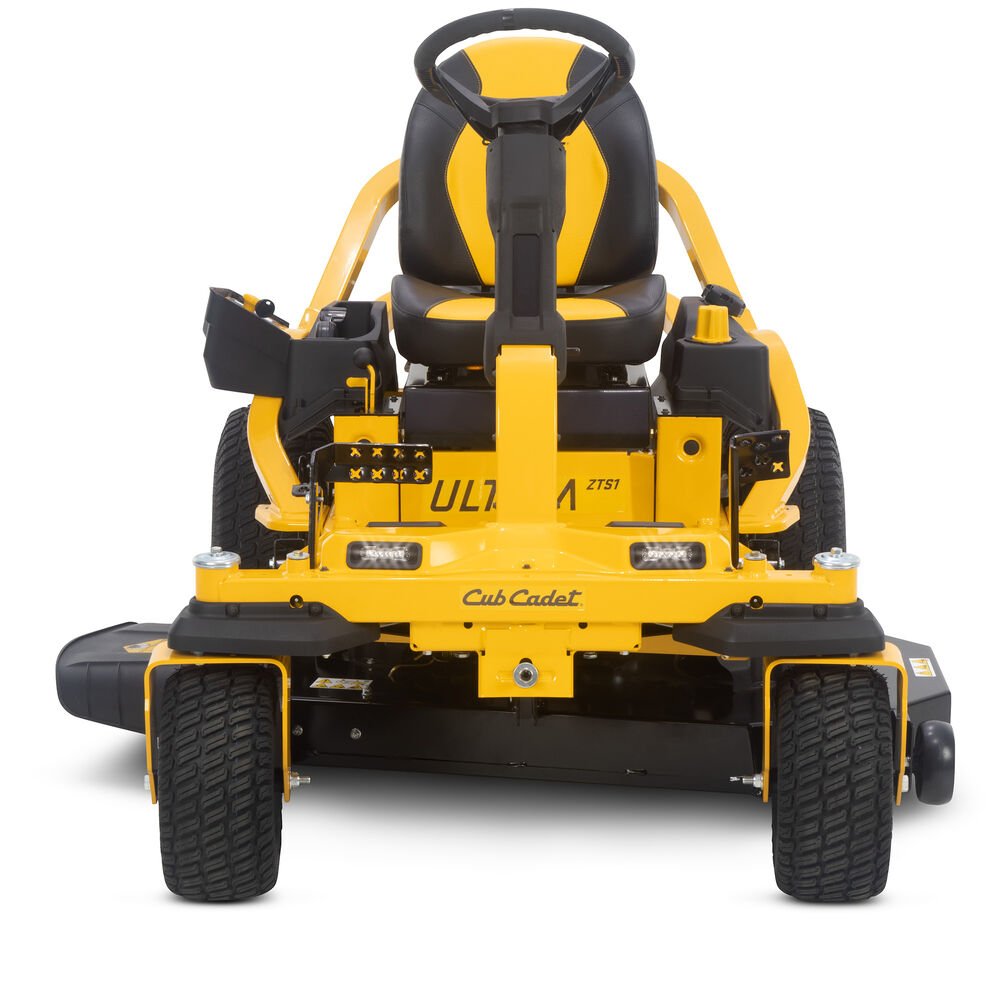

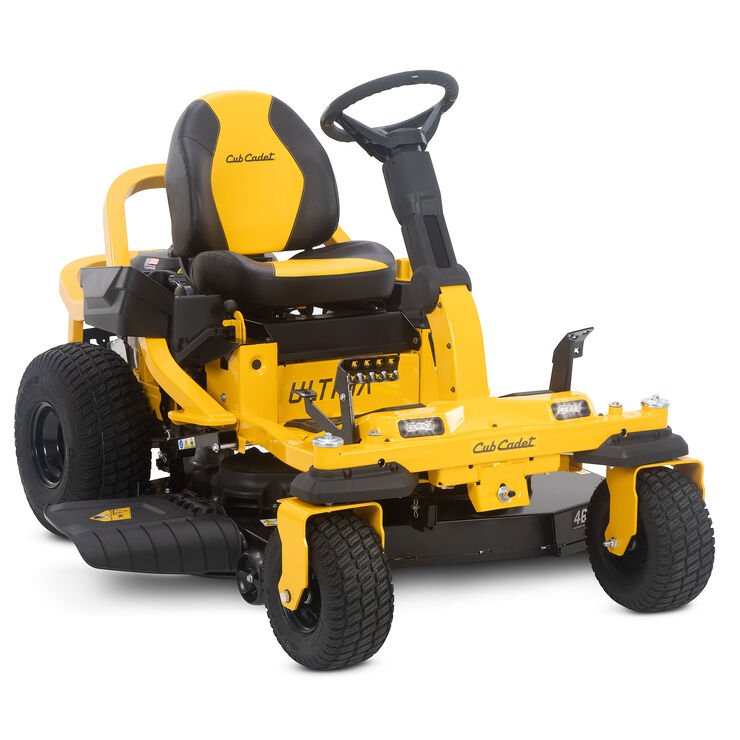

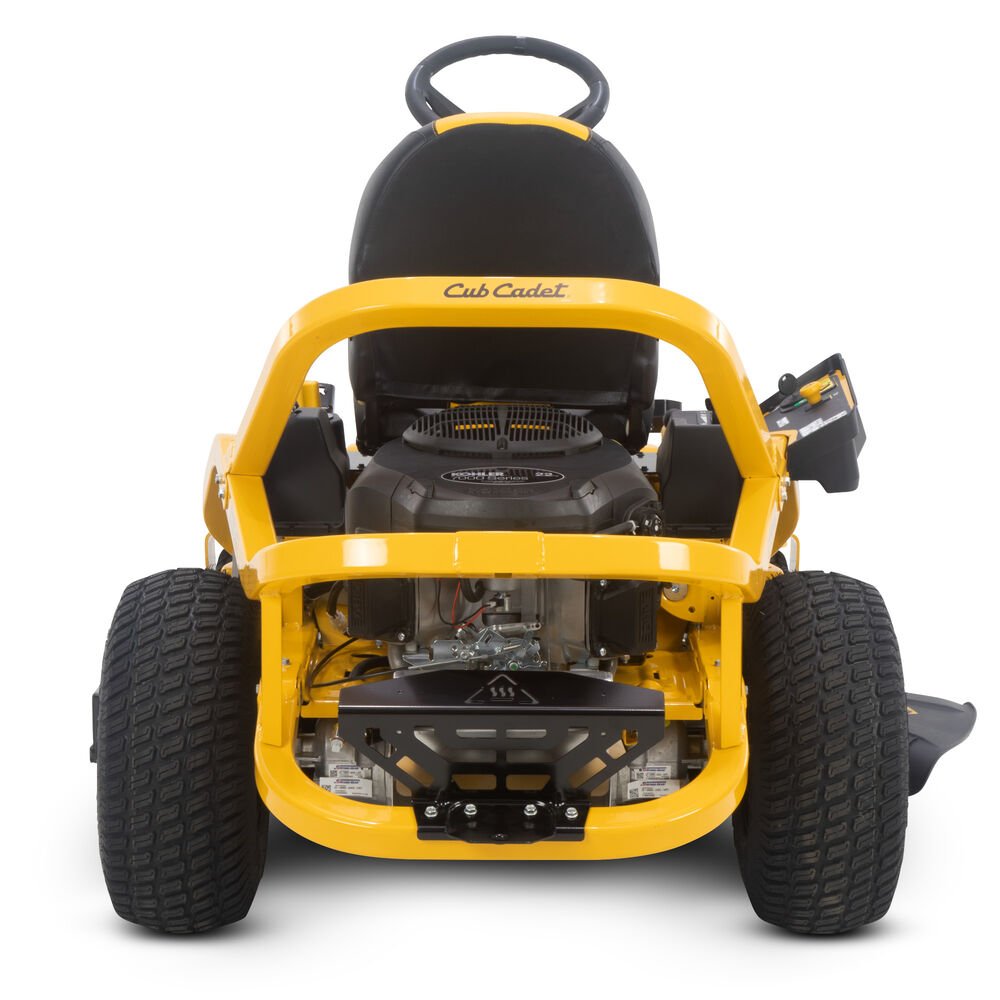

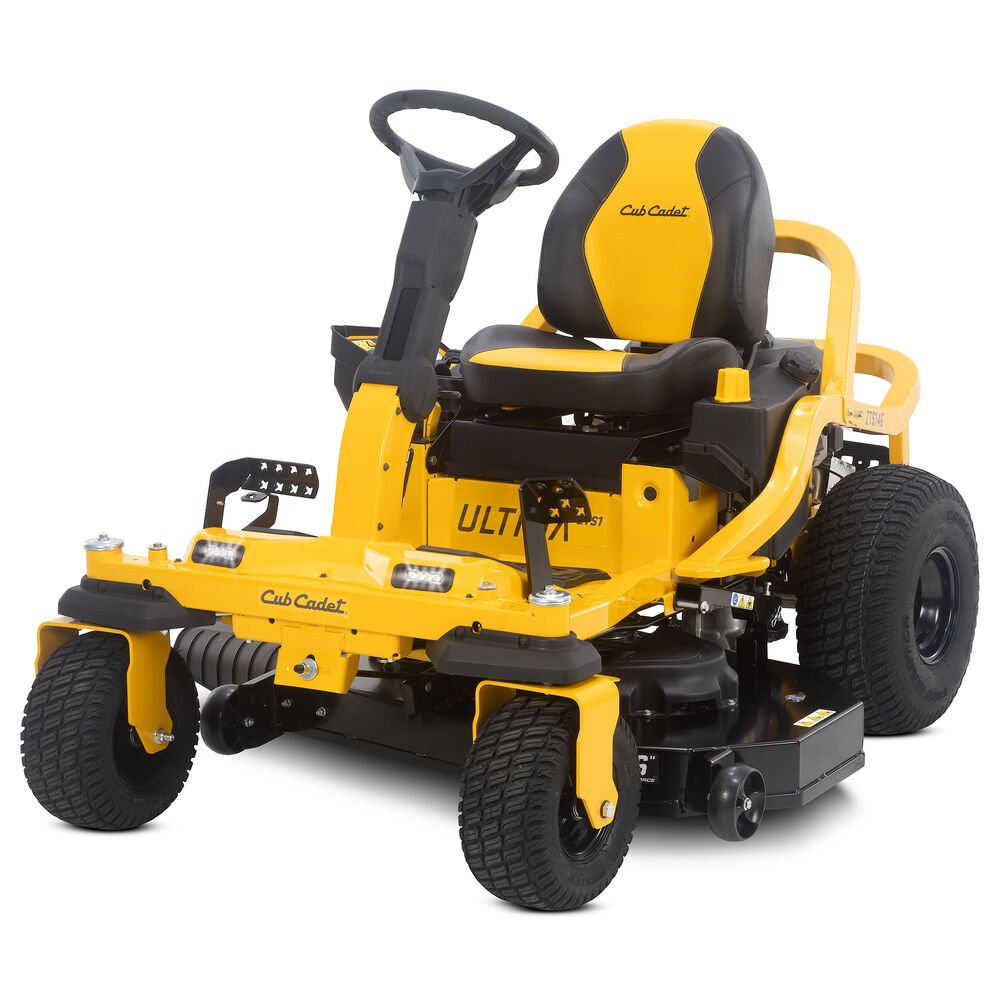

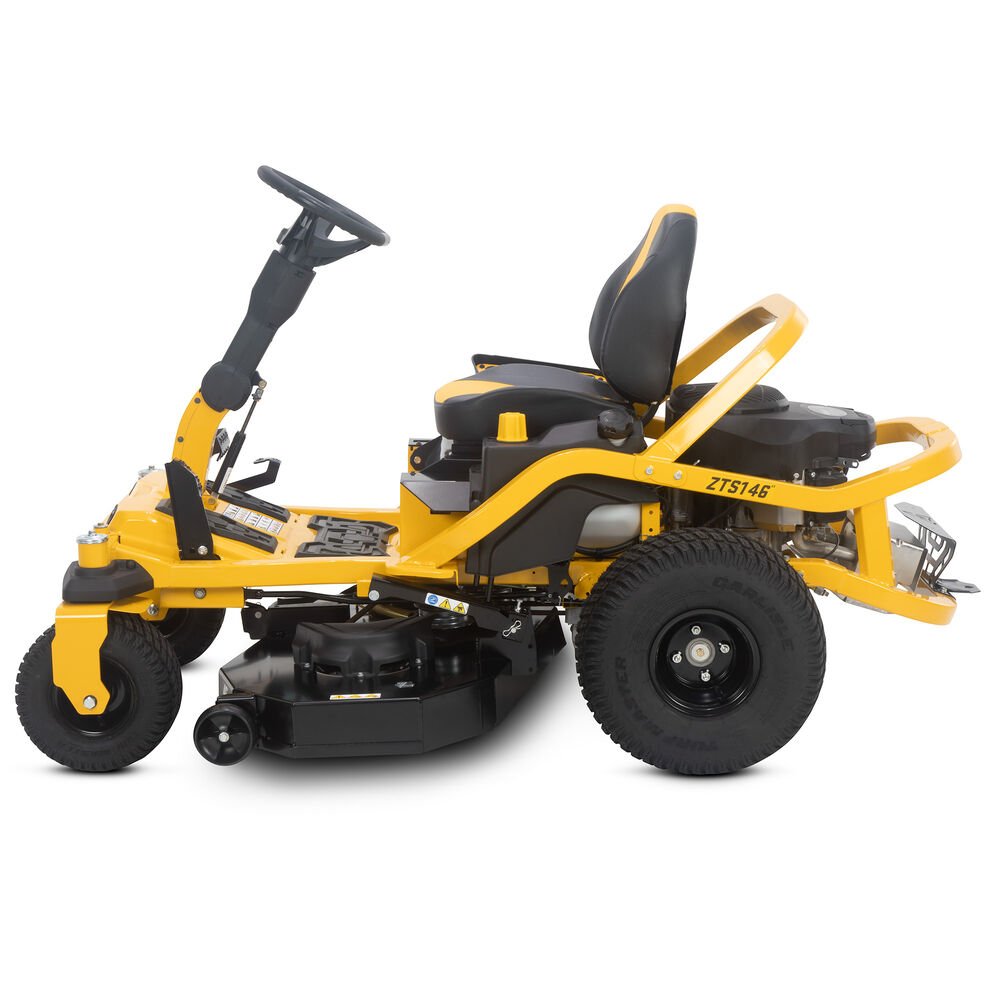

The Cub Cadet® Ultima Series ZTS1 46 46-in. 22 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Synchro-Steer offers 4-wheel control designed to help provide stability for straight line mowing on hillsides and slopes up to 20-degrees. Dual hydrostatic transmissions engineered for quick ground speeds that leave your yard with a professional-quality finish.

Feature:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Zero-Turn Mower

Specification:

Engine

• Brand: Kohler®
• Model: 7000 Series
• Model Number: KT725
• Displacement: 725cc
• Output: 22HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• System: Hydrostatic

Cutting Deck

• Width: 46 in
• Deck Wash: No
• Material: 11-gauge steel
• Engagement: Electric
• Construction: Fabricated
• Blades: 2
• Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1” – 4.5”
• Anti-Scalping: 2 gauge wheels
• Positions: 15

Chassis

• Frame: 2” x 2” tubular steel
• Turning Radius: 0°
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20″ high back
• Armrests: No
• Adjustment: Lever
• Front Suspension: No

Wheels

• Rear Tires: 20”x 8”-8″
• Front Tires: 13″x 6.5″-6″
• Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTS

Additional Features

• Hour Meter: Available Separately
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model Number: 17ARGBYNA10

Warranty

• Residential: 3-year unlimited hours
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited
• Commercial: No
