Description:

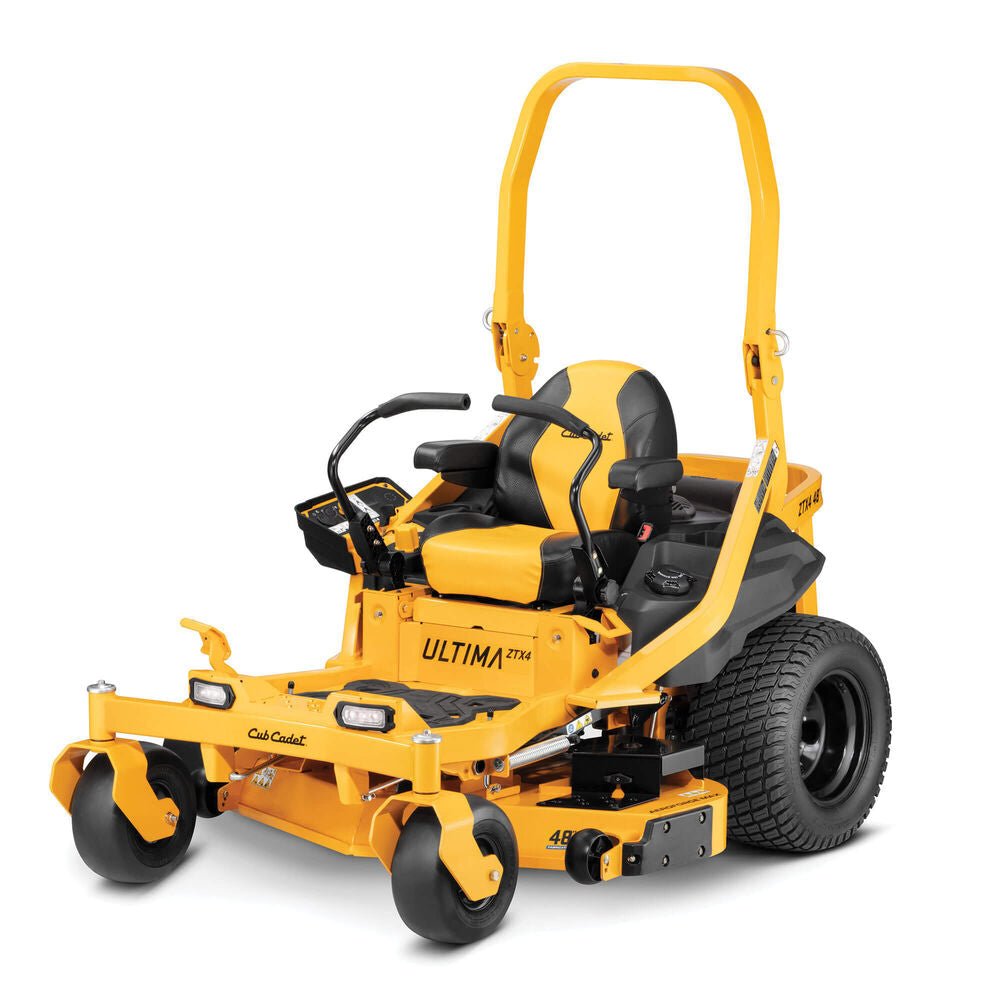

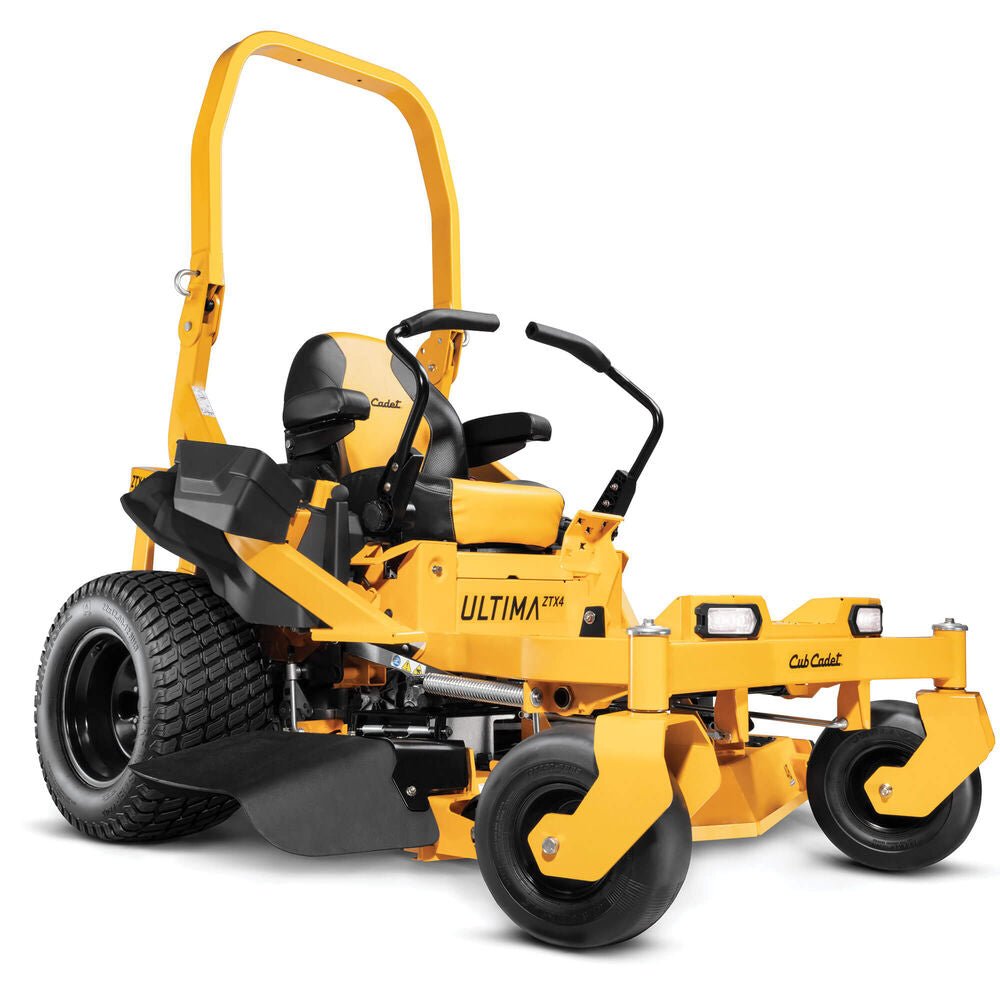

The Cub Cadet® Ultima Series ZTX4 48 48-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.

Features:

• 24 HP* 725cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
• Dual hydrostatic transmissions allow for up to 8 MPH forward (up to 3.5 MPH reverse) ground speeds
• A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
• 48 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with maintenance spindles smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provide excellent results, mows a wide area of grass is rust-resistant and helps provide your lawn with a clean, premium cut
• Zero-Turn Mower

Specifications:

Engine

• Brand: Kohler®
• Model: Pro 7000 series (KT735)
• Displacement: 725cc
• Output: 24 HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Start Type: Ignition Key
• Oil Capacity: 2.0 qts. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Capacity: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3100
• Forward Speed: 8 MPH /12.9 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Type: Hydrostatic

Cutting Deck

• Width: 48 in
• Wash Port: No
• Material: 10-gauge steel
• Engagement (PTO): Electric
• Construction: Fabricated
• Blades: Three
• Lift: Foot pedal with Dial Adjust
• Height Range: 1″ – 4.75″
• Anti-Scalping: Three gauge wheels
• Positions: 17

Chassis

• Frame: 1.5″ x 3″ tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat: 20″ high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 22″x 12″-12″
• Front Tires: 13″x 6.5″-6″
• Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTX
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated

Model & Warranty

• Model Number: 47TSAAA6A10
• Residential Warranty: 4-year 800 hours
• Frame Warranty: Lifetime limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: 4-year 800 hours
