Description

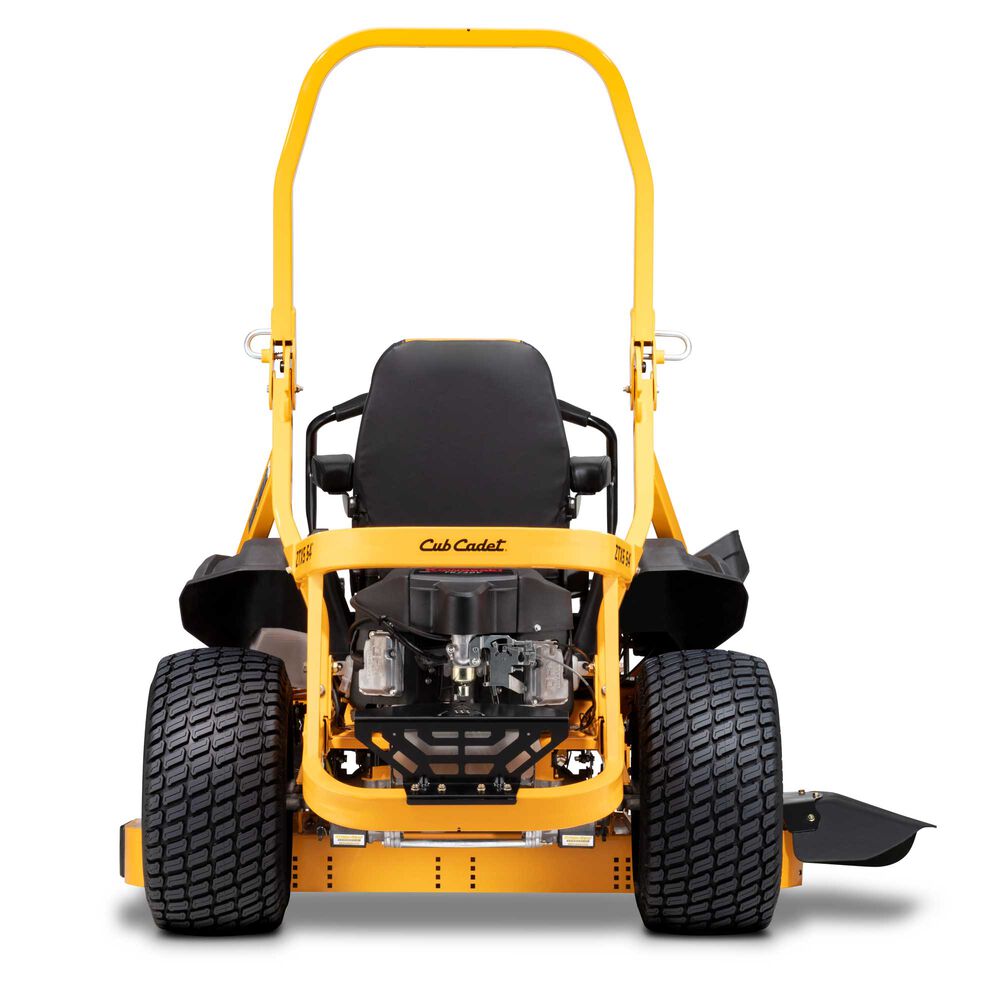

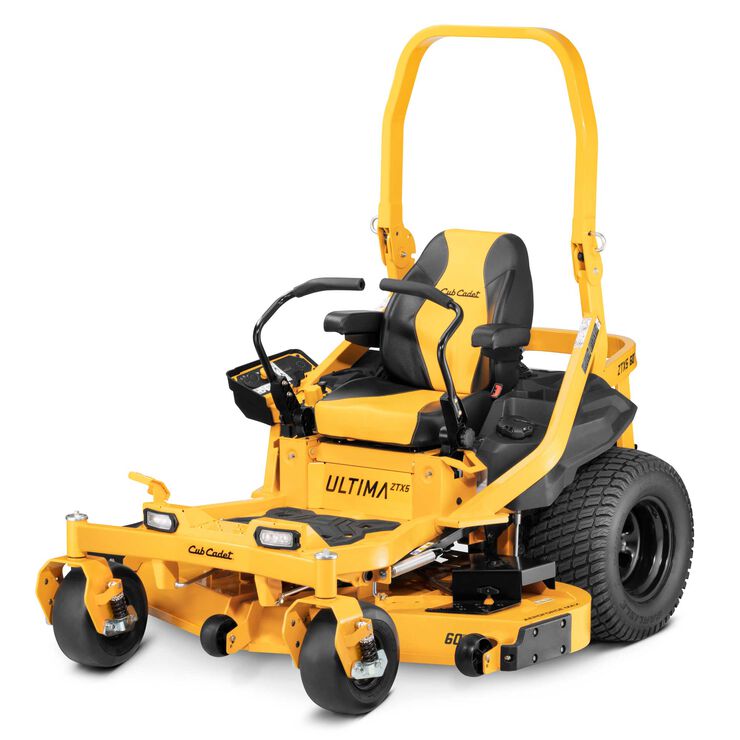

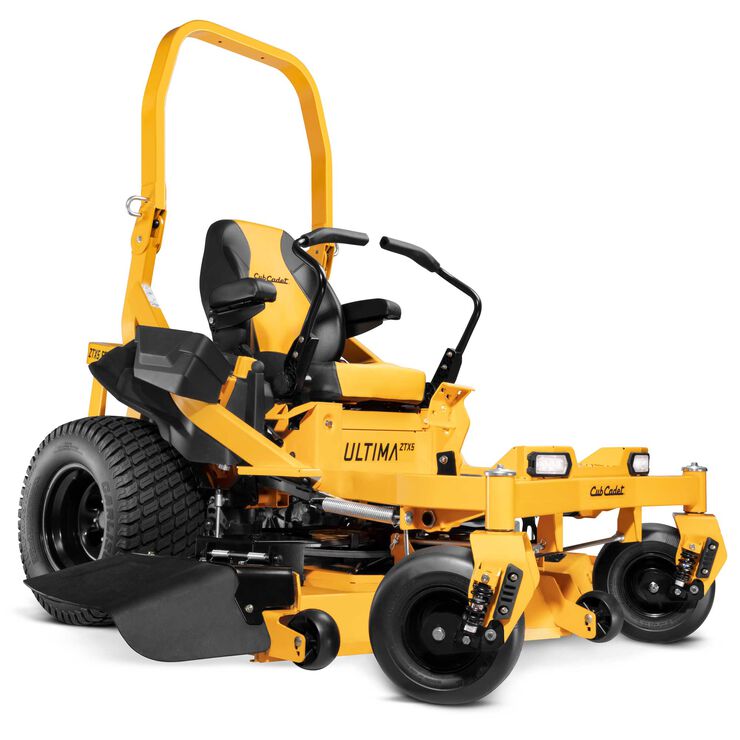

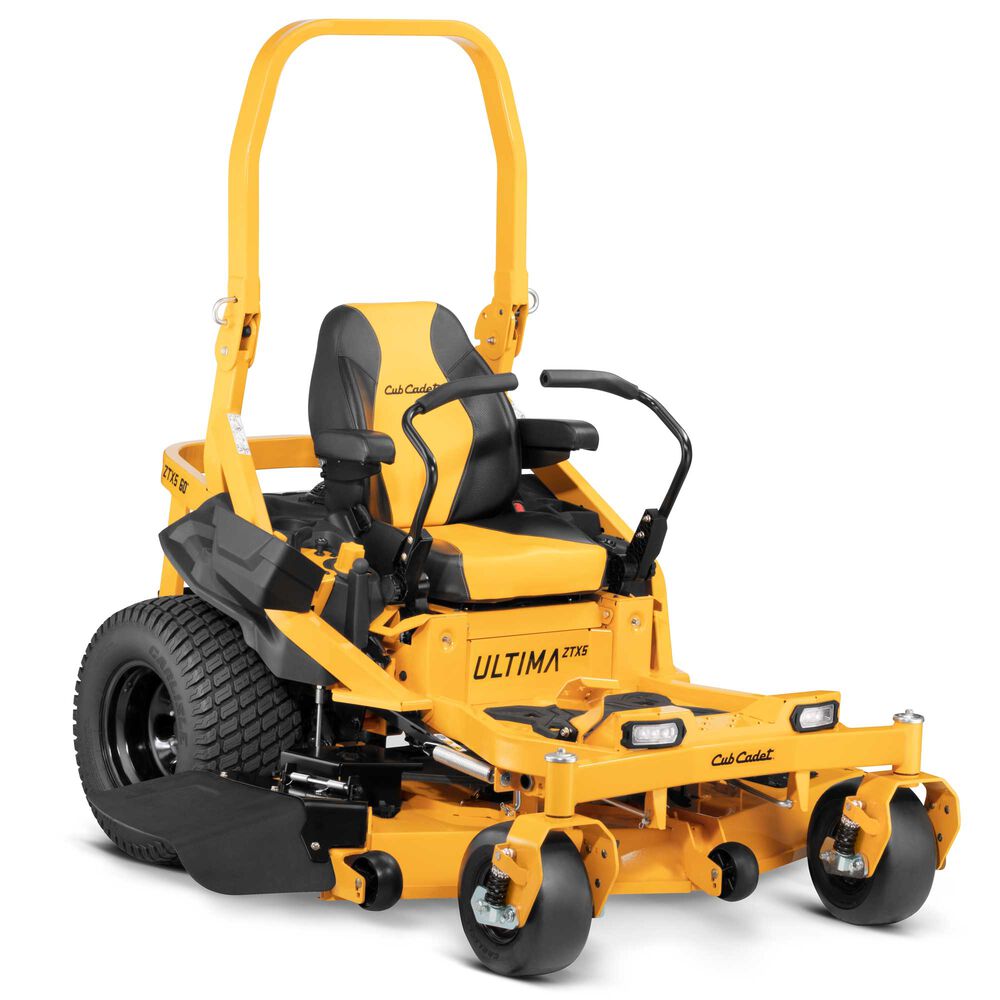

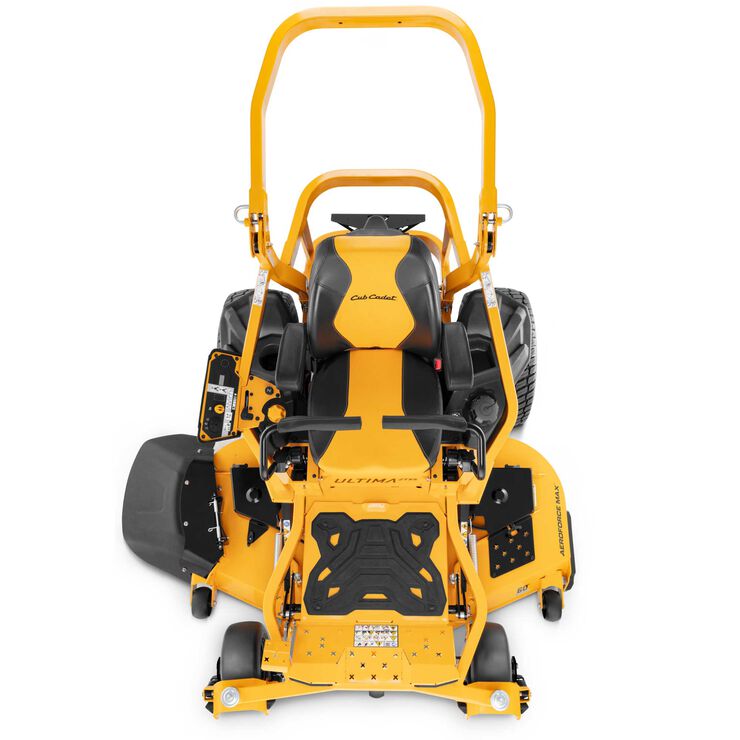

The Cub Cadet® Ultima Series ZTX5 60 is a 60-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Equipped with a powerful 24 HP* Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 770 lbs. of shock absorption to help reduce vibration*
• High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 24 in. high back adjustable seat with cushioned armrests, ball-bearing seat slide and patented suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue

Specifications:

Engine

• Brand: Kawasaki®
• Series: FS Series
• Model Number: 730V
• Displacement: 726 cc
• Output: 24 HP
• Cylinders: Twin
• Fuel Delivery: Carburetor
• Starting System: Electric Start (Ignition Key)
• Fuel Tank Capacity: 5.5 gal US (20.82 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Air Filter: Single element
• Oil Filter: Yes
• Oil Capacity: 2.1 qt US (2 L)
• Governor: Mechanical
• Choke: Separate
• Fuel Gauge: Yes

Battery

• Battery Type: AGM (Absorbent Glass Mat)
• Cold Cranking Amps (CCA): 210
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3200
• Type: Hydrostatic
• Forward Speed: Up to 8.5 MPH (13.7 km/h)
• Reverse Speed: Up to 3.5 MPH (5.6 km/h)

Cutting Deck

• Cutting Width: 60 in
• Material: 10-gauge steel with 2-gauge reinforcement
• Construction: Reinforced Fabricated
• Blade(s): Three
• Deck Engagement (PTO): Electric
• Deck Lift: Foot Pedal with Dial Adjust
• Height Range: 1″ – 4.75″
• Deck Positions: 17
• Anti-Scalping: Three gauge wheels
• Deck Wash: No
• Mulch Kit: Available separately

Chassis & Build

• Frame: 1.5″ x 3″ tubular steel
• Turning Radius: 0° (Zero-Turn)
• ROPS (Roll-Over Protection): Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering Control: Lap Bars
• Brakes: Disc
• Cruise Control: No
• Seat Type: 24″ High-Back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Suspension: Caster Suspension
• Operator Presence System: Yes
• Parking Brake: Integrated in Lap Bars

Wheels & Tires

• Front Tires: 13″ x 6.5″ – 6″
• Rear Tires: 23″ x 12″ – 12″
• Tire Tread: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Headlights: Dual-LED
• Cup Holder: Yes

Warranty

• Residential: 4-Year / 800-Hour Limited Warranty
• Commercial: 4-Year / 800-Hour Limited Warranty
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited
