Festool Plunge-Cut Saw with Scoring Function

Splinter-free sawing like never before. Perfect from the very first cut. The TSV 60 K plunge-cut saw with scoring function.

Since 1980, Festool plunge-cut saws have been known for their reliable quality and absolute precision. Our objective: The perfect cut. With the TSV 60 K plunge-cut saw with scoring function, we have achieved exactly that. Splinter-free sawing on both sides now from the very first cut. Coupled with the built-in KickbackStop, you and your workpiece are protected from dangerous kickbacks and thanks to the ideal combination of Festool system accessories, your work can always be precise and tailored to requirements, even when on the move. With the TSV 60 K, workshop-quality results can be replicated on the construction site – as good as with a stationary machine.

Splinter-free:

The scoring ensures splinter-free work results on both sides from the very first cut.

Long-lasting:

Diamond scoring saw blade with very long service life for perfect cut quality time after time.

Saw system:

comprehensive system with ideal accessories for perfect panel cutting.

Safer:

the unique Kickback Stop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the workpiece

Versatile:

60 mm cutting depth and can be combined with the FSK cross cutting guide rail or FS guide rail.

Swivels with:

perfect scoring, even on miter cuts from 0° to 45°.

Flexible:

Both the scoring saw blade and the main saw blade can be manually activated and deactivated.

Convenient:

The FastFix spindle stop on the main saw blade and the possibility of standing it on its side make changing the saw blade very simple, even with the scoring saw blade.

Constant:

EC-TEC motor in combination with the thin kerf saw blades ensures work progresses without difficulty whilst requiring less effort.

Splinter-free in a single cut.

With the TSV 60 K, the dream is now a reality. The built-in scorer can be adjusted with precision and, together with the scoring saw blade, it guarantees consistently splinter-free cuts on both sides. Which means perfect sawing results from the very first cut!

Sawing system for perfect panel cutting.

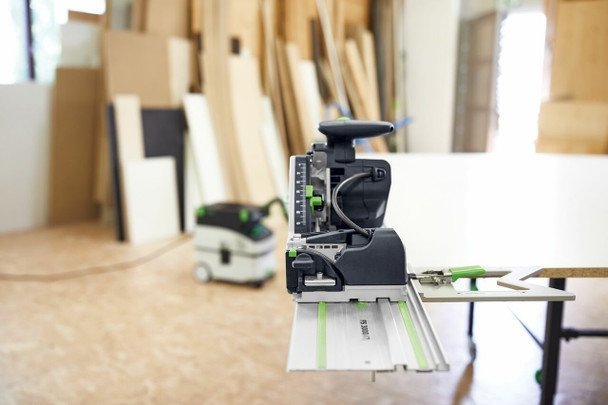

Whether it’s on the construction site or in the workshop, even large panels can be cut with precision. Thanks to Festool system accessories, it cuts just as well as the stationary machine: You can work precisely even while on the move, and can enjoy splinter-free results to suit your needs.

Protects against dangerous kickbacks.

The innovative Kickback Stop in the plunge-cut saw with scoring function protects your workpiece and minimises the risk of injury. The saw detects a kickback in the blink of an eye and stops the motor within a fraction of a second.

Integrated scoring function

Ensures splinter-free cuts on both sides from the very first cut. That way, the cut edges are ready for further work straight away.

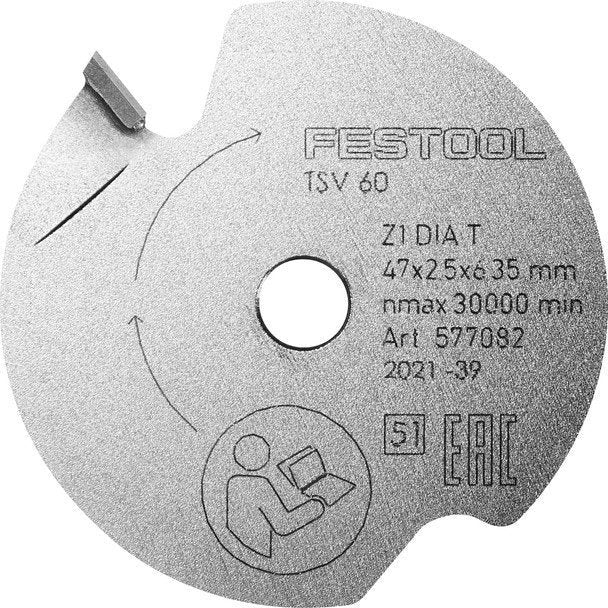

Diamond scoring saw blade

Guarantees a very long service life and perfect cut quality time and time again.

Scoring function track and depth adjustment

Precision adjustments of the scoring saw blade for a splinter-free cutting edge.

Switching the scorer on and off

Depending on the application, the scoring function can be activated and deactivated as required.

Main applications

Splinter-free cutting of chipboard, specially veneered and plastic-coated panels

Splinter-free cutting of HPL compact panels such as Trespa®

Precise plunge cuts in materials up to 60 mm thick

Perfect, splinter-free cutting to length of interior doors

Cutting recesses in doors and kitchen worktops

Cross cuts with the FSK cross cutting guide rail (floor and façade panels)

Technical Data

Power consumption (circular saw/scorer): 1 500 / 190 W

No-load speed (circular saw/scorer): 3.000 – 6.800 / 22.000 min⁻¹

Saw blade diameter (circular saw/scorer): 168 / 47 mm

Angular range: 0 – 45 °

Cutting depth at 0: 62 mm

Dust extraction connection diameter: 27/36 mm

Cord length: 4 m

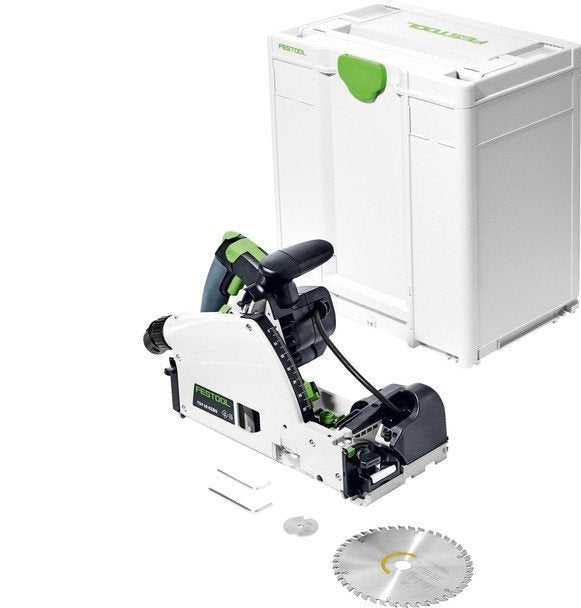

Includes

WOOD FINE CUT HW 168 x 1.8 x 20 WD42 circular saw blade

Sight Window

Hex key 5 mm

Scoring Saw Blade DIA 47×2.5×6.35 T1

Allen key 4

Systainer SYS3 M 437
