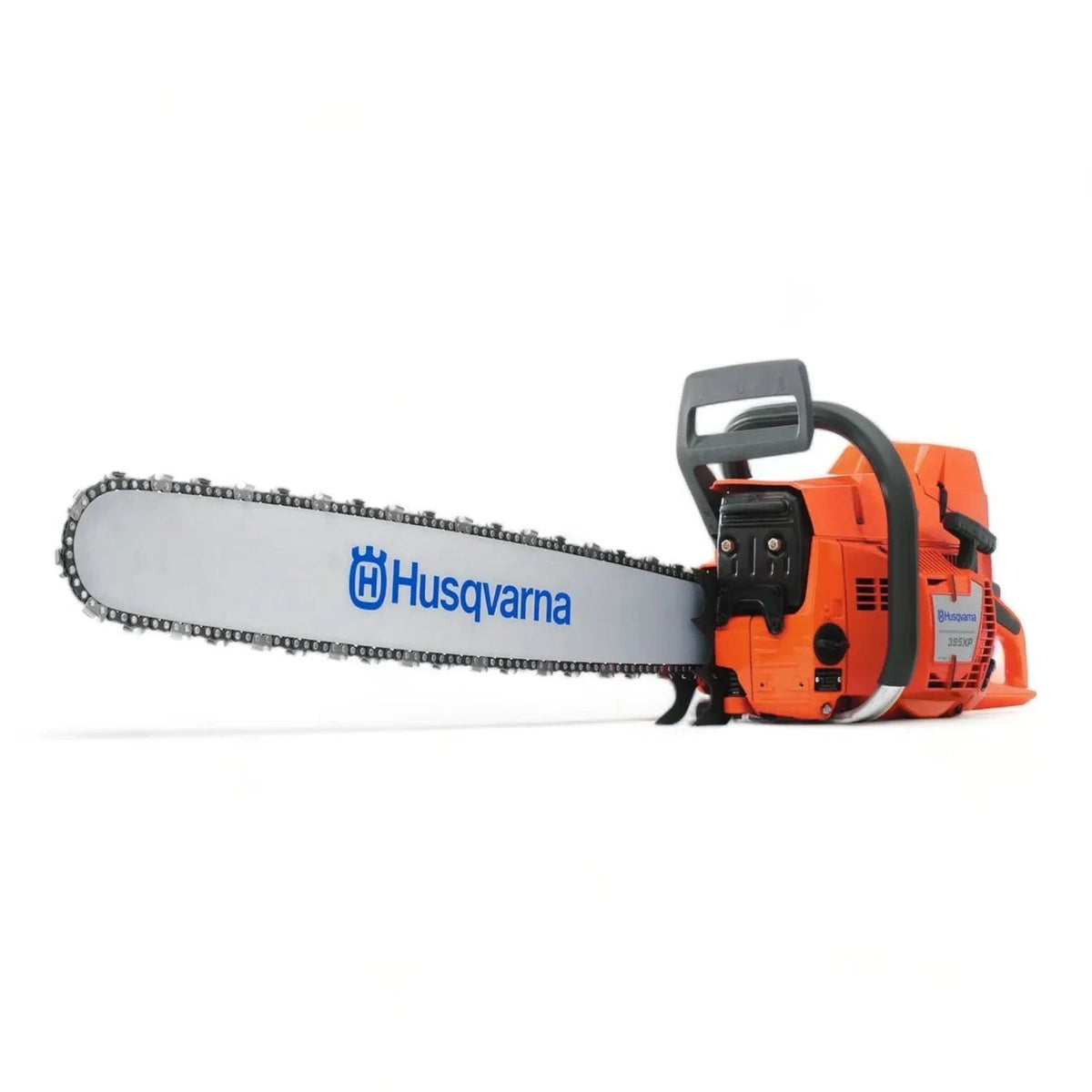

Husqvarna 395XP Gas Chainsaw

An advanced large-size XP®-saw, developed for the toughest forestry jobs. A perfect saw for hard wood logging with longer bars.This saw has classic Husqvarna XP® -features such as high power to weight ratio, along with a rugged, high-speed engine with an improved cylinder and anti-vibration carburettor. The XP® G model has heated handles.

Features

Air Injection™ Technology –

Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life.

Adjustable Oil Pump –

Customize and control oil flow to meet any need.

Quick-Release Air Filter –

Easily remove and replace the filter after cleaning.

Magnesium crankcase –

Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.

Quick release air filter cover –

Quick release cover saves time when cleaning or changing spark plug.

Three-Piece Crankshaft –

Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs.

LowVib® Technology –

Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably.

Smart Start® Technology –

Specially-designed engine and starter for easy and fast starting with minimum effort.

Ergonomic grip –

Angled front handle for better grip and natural working position.

Felling marks –

Distinct, coloured felling marks for better felling precision.

Inertia-Activated Chain Brake –

Reduces the likelihood of injury due to kickback.

Specifications

Engine

20″ RSN 3/8″ 1,5 mm C85

SKU: 965 90 27‑20

28″ RSN 3/8″ 1,5 mm C85

SKU: 965 90 27‑65

Power output

4.9 kW

Cylinder displacement

94 cm³

Maximum power speed

9,600 rpm

8,700 rpm

Maximum recommended engine speed

12,500 rpm

Idling speed

2,500 rpm

Torque, max.

5.9 Nm

Torque, max. at rpm

6,000 rpm

Clutch engagement speed (±120)

3,400 rpm

3,500 rpm

Fuel consumption

470 g/kWh

2.4 kg/h

2.3 kg/h

Spark plug

Champion RCJ6Y

NGK BPMR7A, Champion RCJ6Y

Electrode gap

0.5 mm

Ignition module air gap

0.3 mm

Oil pump type

Automatic

Oil pump capacity, max

20 ml/min

Oil pump capacity, min

15 ml/min

Equipment

Bar length (inch)

20 in

28 in

Recommended bar length, min

45 cm

Recommended bar length, max

70 cm

Chain type

H42

C85

Gauge

1.5 mm

Pitch

3/8″

Sprocket type

Rim 7

Dimensions

Weight (excl. cutting equipment)

7.9 kg

Lubricant

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1

Oil tank volume

1.06 US pint

1.1 US pint

0.5 l

Sound and Noise

Sound power level, guaranteed (LWA)

115 dB(A)

Sound power level, measured

114 dB(A)

Sound pressure level at operators ear

102 dB(A)

Vibration

Equivalent vibration level (ahv, eq) front handle

6.5 m/s²

Equivalent vibration level (ahv, eq) rear handle

10.2 m/s²
