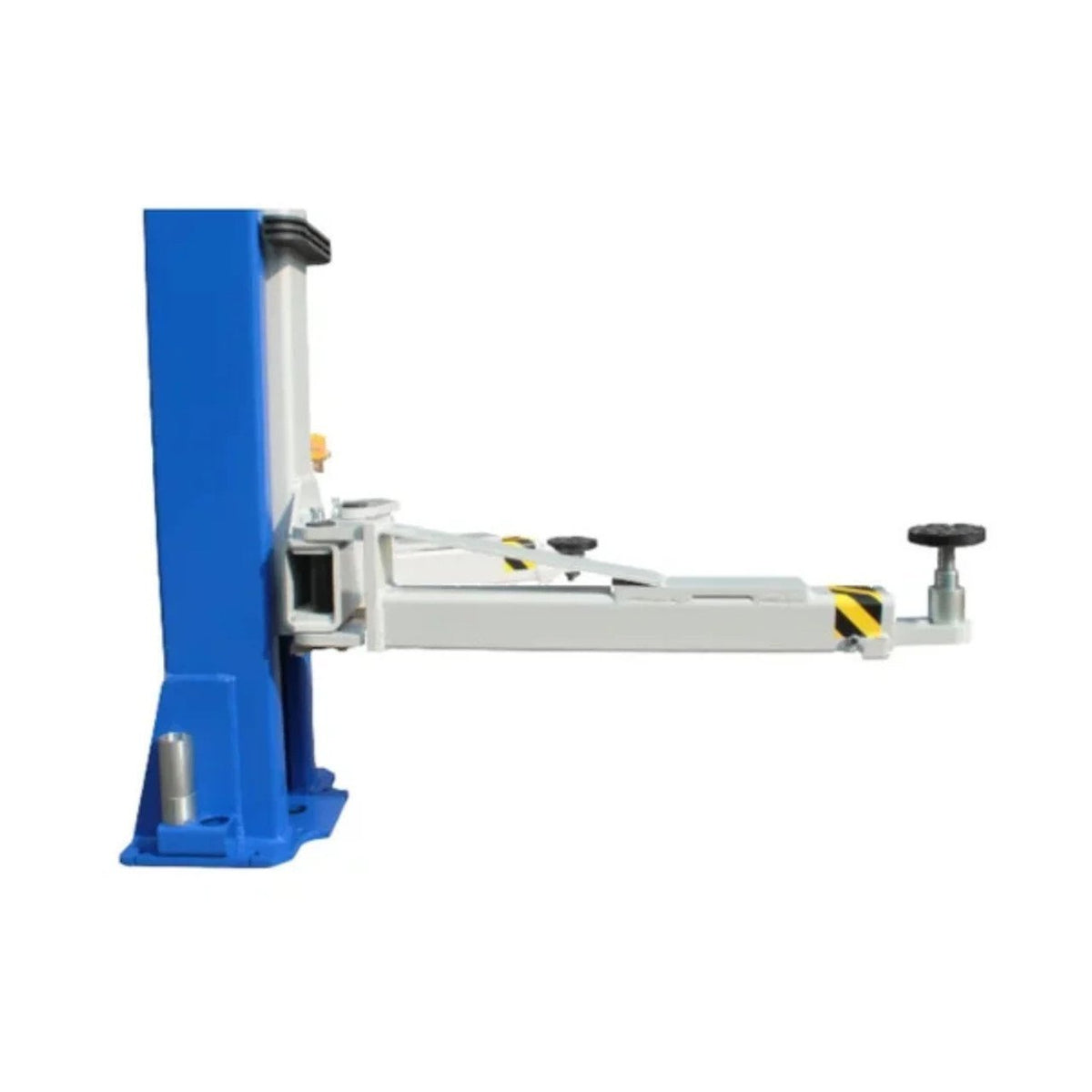

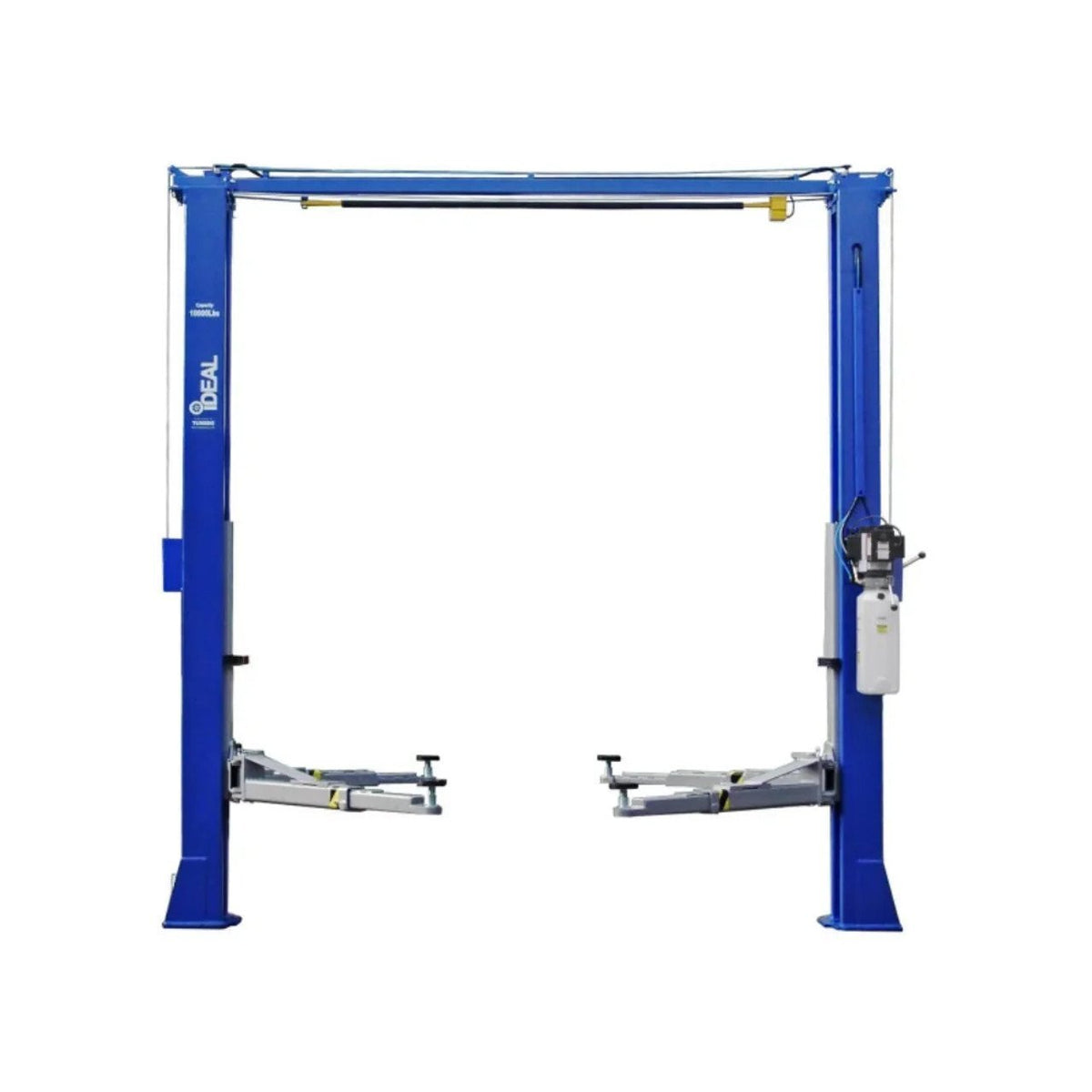

iDEAL TP10KAC-DX 10,000 Lb Two Post Clear Floor BI-symmetrical Lift – Ali Certified

iDEAL TP10KAC-DX 10,000 Lb 2 Post Lift – Ali Certified Clear Floor BI-symmetrical

Get your 10000 lb 2 post lift for light duty vehicles with an ALI certification. This lift, with a Bi-symmetric design, features a unique design with 3 front 3-stage arms and 180 degree rotation. Allows a single point lock release, combining direct drive cylinders, makes this lift the perfect choice for workshops or garages, if you want to take this lift, buy now and receive it where you want, remember that we are the best mechanic tools store.

Features

10000 pound 2 post car lift

Ali Certified

Bi-Symmetric Arm Design

Rubber Door Guards

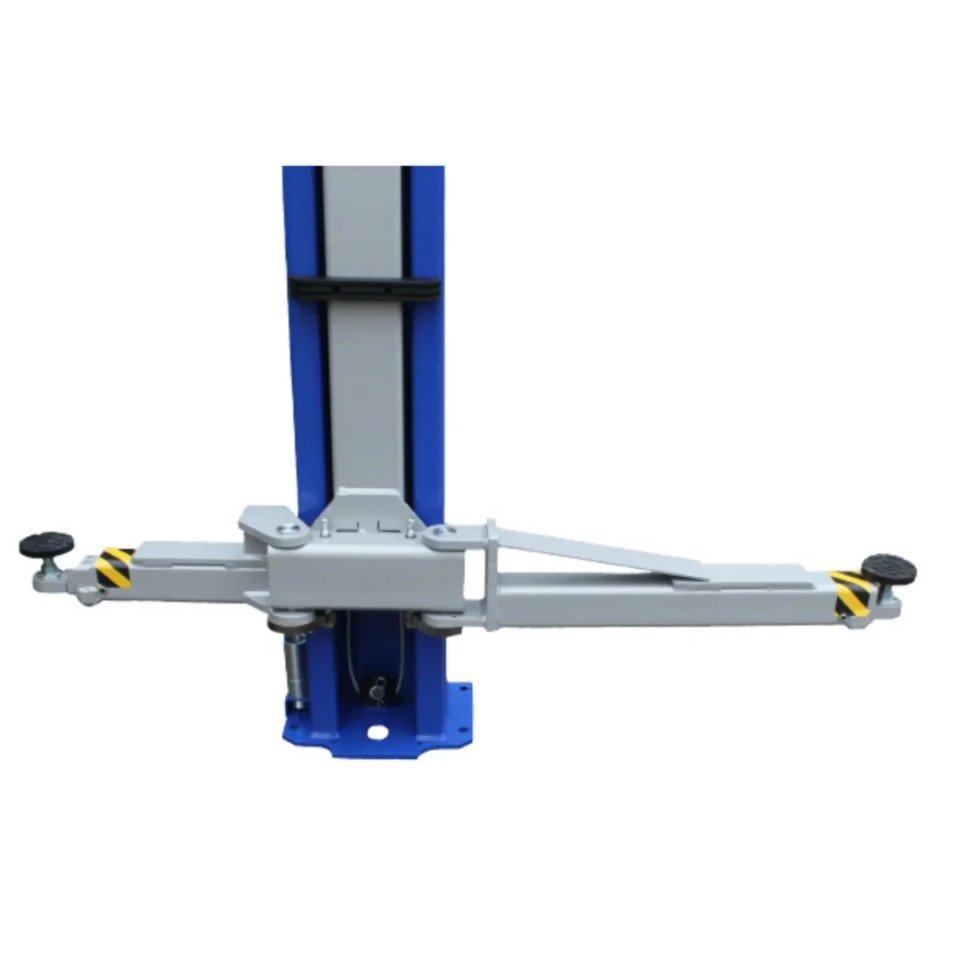

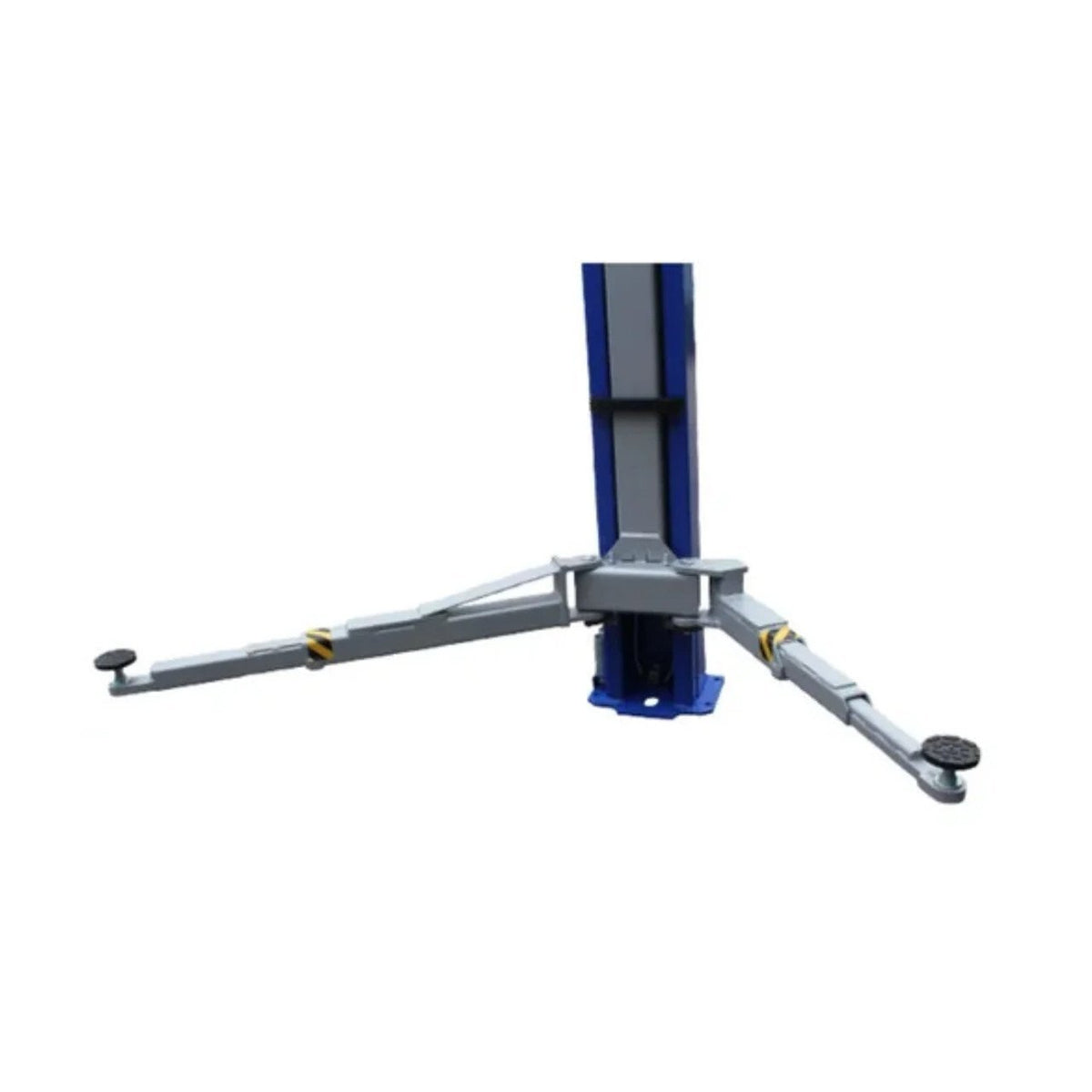

3 Stage Front Arms

Direct Drive Pull Cylinders

Single Point Lock Release

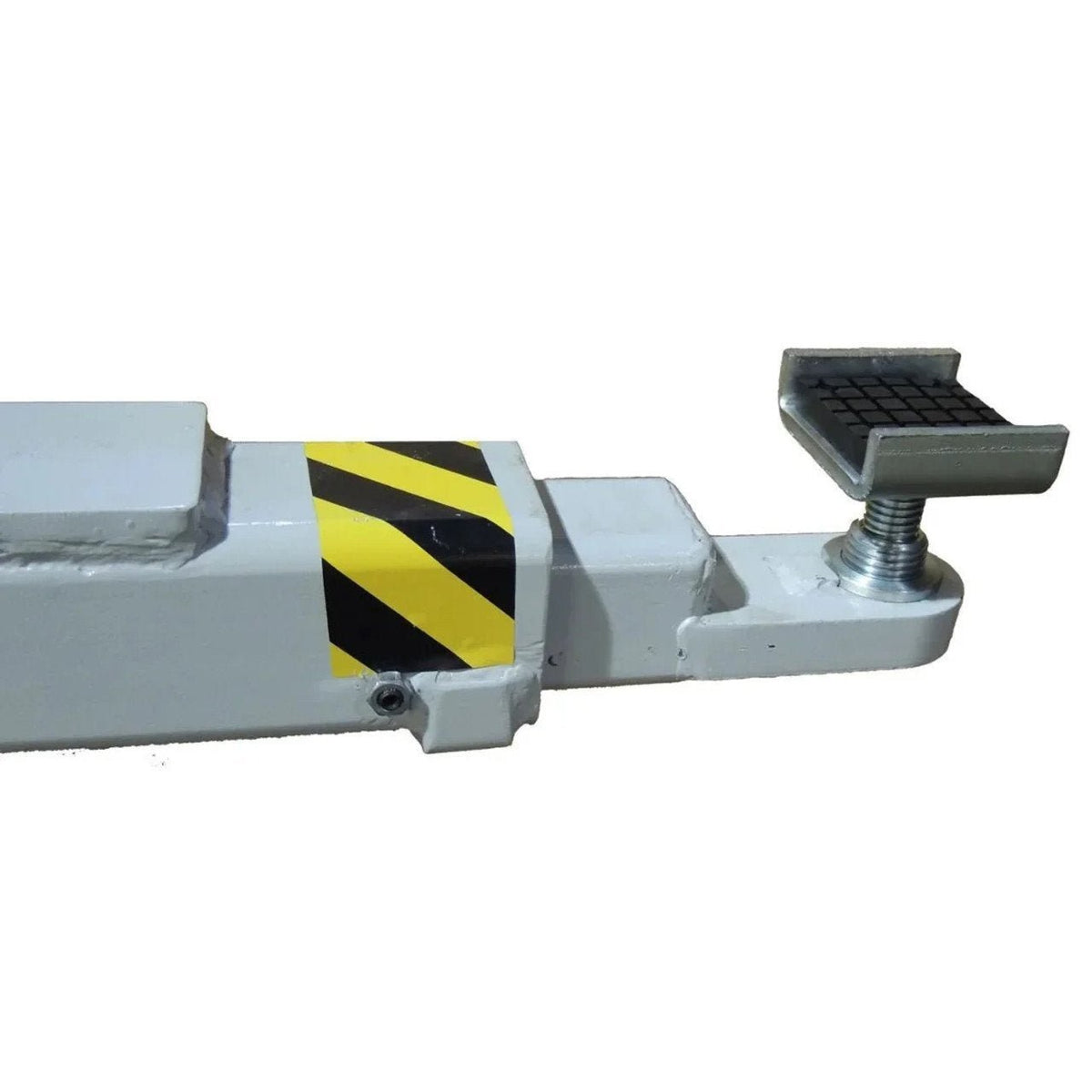

Spin Up Low Profile Lift Pads

Stackable Adapters Included

External Hose Guards

Duro Certified Power Unit

Met, Ul, Csa Listed

Specifications

Lift Model

TP10KAC-DX

Capacity

10,000 lbs.

Height Overall

144″

Width Overall w/ Power Unit

145-1/2″

Max Lift Height

71″

Width Between Columns

116″

Min. Pad Height

4″

Drive Thru Clearance

104″

Lifting Speed

50S

Asymmetric / Symmetric

Bi-Symmetric

Clear Floor / Floor Plate

Clear Floor

Short Arm Reach – min/max

23″-45″

Long Arm Reach – min/max

41″-59″

Narrow Bay Setting

NA

Max Load Per Arm

2,500 lbs

Ship Weight

1,705 lbs

Power

220V – 20 AMP – 1 PH
