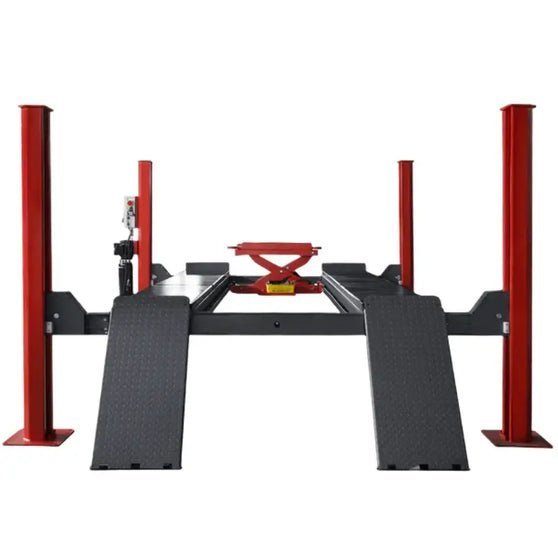

Katool KT-4H150, 4 Post Alignment Lift 15,000 lb – Rolling Jack Included

KT-4H150, 4 Post Parking Lift by Katool

Juggling jacks and stands for complex car projects is inefficient and potentially unsafe. The Katool KT-4H150 Parking Lift is here to revolutionize your car care routine. With a staggering

15,000-lb lifting capacity

and CE-certified design, the KT-4H150 tackles even the toughest jobs with ease. Safety is prioritized with multiple locking points, a single-point safety release, and a

non-slip platform

which is good for conducting repairs on rainy days.

Convenience is built-in with a reversible motor column, and an included Rolling Jack. This all-in-one solution streamlines your workflow and maximizes your productivity. Stop struggling with makeshift solutions. Invest in the KT-4H150 today and experience the difference! Enjoy a complete car care solution with unmatched safety, strength, and convenience.

Katool 15,000lb Lift Specifications:

Lifting Capacity: 15,000 lb

Max Lifting Height: 75″

Height of Posts: 86″

Overall Width: 136″

Length (w/ ramps): 245″

Length (w/o ramps): 208″

Inside Columns: 118″

Inside Runways: 43″

Min. Runway Height: 9″

Pad: 14.56″ x 17.12″

Lock Position: Every 4.7″ (12 total)

Power: 220V/60HZ/1PH

Oil: AW-46 or AW-32 (colder climates)

Pallet Dimensions:

Lift: 4057 lbs – 200x27x33 (inches)

Pump: 441 lbs – 40x24x15 (inches)

2x Ramps : 66 lbs – 47x20x12 (inches)

Rolling Jack：330lbs – 46x25x13 (inches)

4H150 Special Features:

15,000 LB Capacity:

Perfect for larger trucks, vans, duallys, and heavy-duty work vehicles.

CE Certified:

Tested to 115% dynamic and 150% static load standards for industry-grade safety and durability.

Rolling Jack Included:

Pneumatic-over-hydraulic jack tray allows for wheel service above the runways. Requires external air source.

Manual Safety Release:

Single-point manual release engages 4 mechanical locking positions for added peace of mind.

Redundant Safety Locks:

Each post includes primary and secondary locking systems for built-in backup protection.

Flexible Power Column Placement:

Mount the power-side post in the front, rear, or either side—whichever fits your shop best.

Non-Skid Diamond Plate Runways:

Textured platforms keep tires from slipping during approach and lift.

Heavy-Duty Cable & Pulleys:

7/16″ thick cables and steel pulleys ensure smooth, long-lasting operation.

Permanent Setup:

This model does not support caster kits and is intended for fixed installation.

Updated Color Scheme:

Now available in Katool’s new orange and gray finish for a bold, modern shop look.

Optional Add-Ons:

Turntables for alignment sold separately.

Katool Warranty:

One-year (12 months) warranty on all parts and against product defects, free of charge. Vehicle lifts include an additional three-year (36 months) warranty on all structural components.
