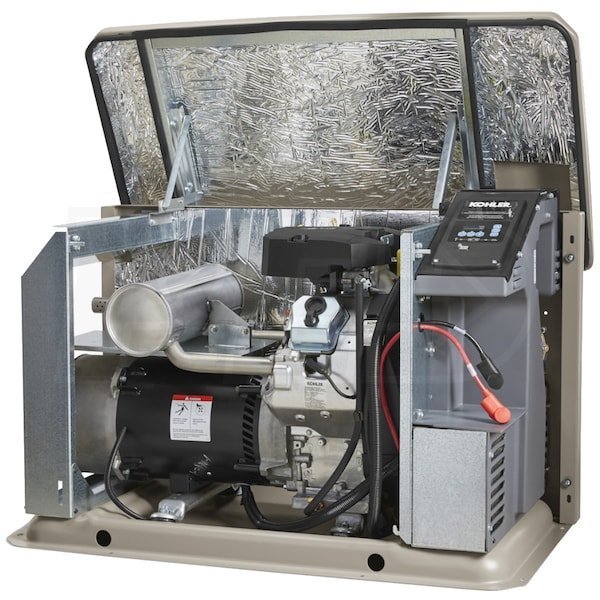

Kohler 20RCAL-200SELS 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding)

20kW (LPG) / 18kW (NG) Air-Cooled Standby Generator

Fully Automatic Operation – Includes Automatic Transfer Switch

Premium 5-Year / 2000 Hour Limited Warranty

Backed by Kohler’s extraordinary reliability & performance

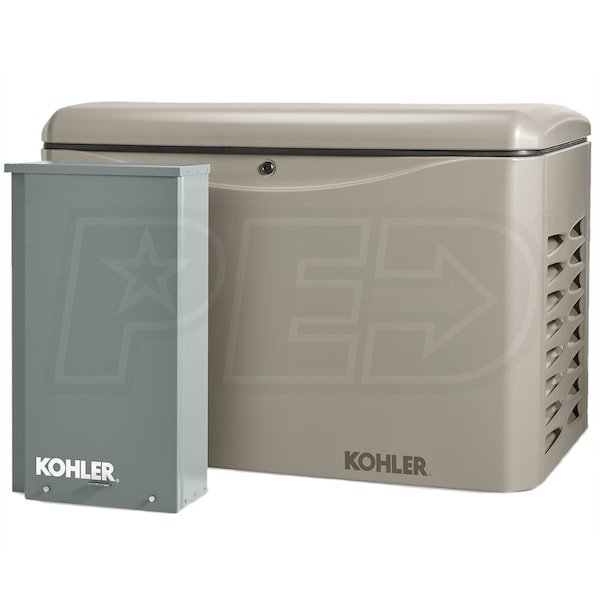

RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch

NEMA 3R Enclosure mounts between meter & main service panel

Built-In Load Shed – Manage (2) HVAC + (4) Non-Essential loads***

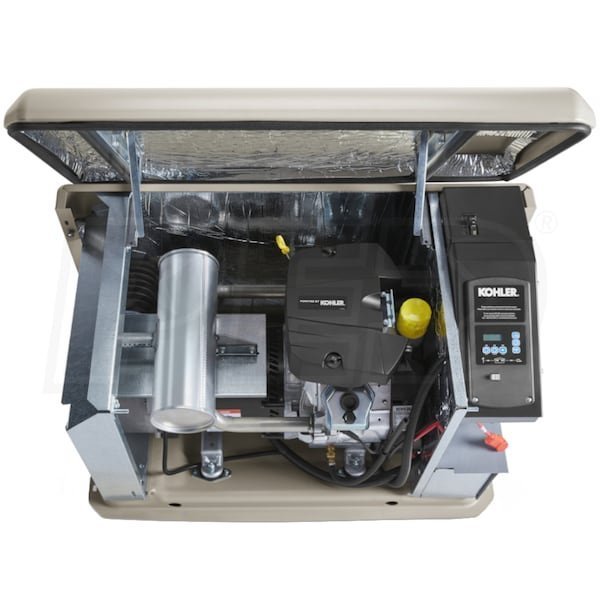

Kohler Command PRO® OHV Engine

Meets emission regulations for U.S. EPA & California

Powerful and reliable engine with hydraulic valve lifters

New 100% Corrosion-Proof Aluminum Enclosure

Aluminum base can be mounted on gravel or cement pad

Meets 181 MPH wind rating; Impact-resistant down to -30° F

Powerful Performance w/ PowerBoost™ Technology

Greater motor-starting ability for large electrical loads

Premium Power Quality (+/-1% Voltage Regulation)

Protects sophisticated electronics with low distortion (<5%THD)

Fast Response Time

Kohler™ generators restore power in as little as 10 seconds

New Silencer Reduces Sound Levels & Provides Quiet Operation

Maintains neighborhood solitude – approx 69 dB(A) at 7 m (23 ft)

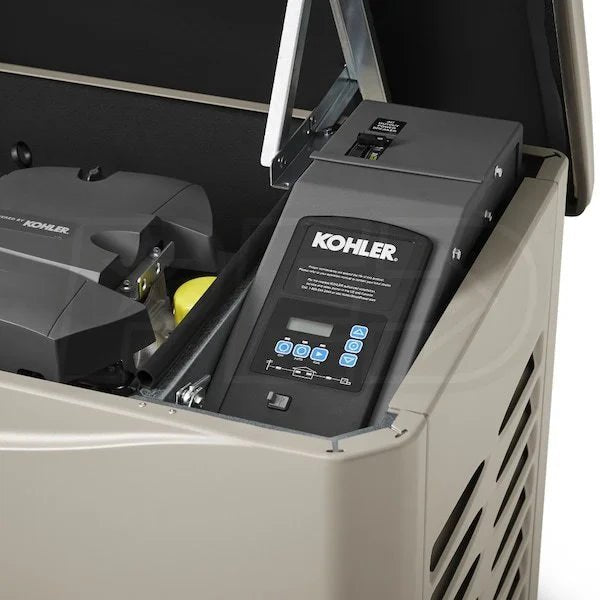

RDC2 (6-Button) Digital Controller

Glare-resistant, 2-line 16-character display – No More Codes

ATS status via LED lights on controller; Built-In 2.5A Battery Charger

Real time clock allows you to easily set weekly exercise

Remote Monitoring System (Included)

Built-in Ethernet card, no hardware needed

Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)

KOHLER® Energy Management App

Get real-time alerts on generator status, remote control & maintenance records

Easier Installation

Streamline design reduces time required to install generator

Installation Flexibility*

Can be installed within 18″ of a building / home

*Always check local building codes

General Information

Product Category

Generator – Standby

Overview

Weight

555 Pounds

Made in USA

Yes

Consumer Warranty

5 Years

Commercial Warranty

Product Style

Standby Generator

Product Length

47 Inches

Product Width

26.2 Inches

Product Height

32.2 Inches

UPC

650531447500

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

20000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

18000 Watts

LP Power Capacity

NG Fuel Consumption @ 50% Load

161 ft³/hr

NG Fuel Consumption @ 100% Load

281 ft³/hr

LP Fuel Consumption @ 50% Load

2.3 gallons/hr

LP Fuel Consumption @ 100% Load

3.9 gallons/hr

Rated Amps

83 Amps

Decibel Rating @ 7m

69 Run (64 Test) dbA

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Not Included (500 CCA)

Enclosure

Aluminum

A/C Ton Rating

2 x 5-Tons

Transfer Switch Style

Service Disconnect

ATS Load Prioritizing

Built-In

ATS Load Shedding

ATS Service Disconnect

Cooling System

Air Cooled

UL Listed

Grade Type

Emergency

Wi-Fi Remote Monitoring

Sold Separately

Engine

Engine Brand

Kohler

Starting System

12v Auto Start

CC

999 CC

Consumer Engine Warranty

Commercial Engine Warranty

Engine RPM

3600 RPM

Low Oil Alert/Shutdown
