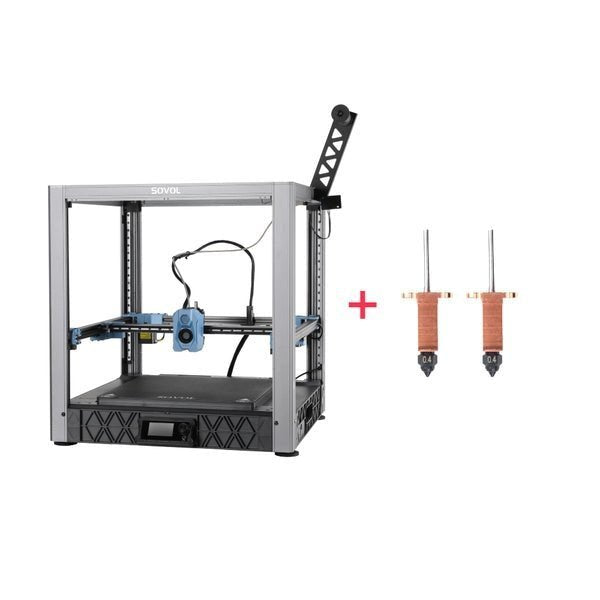

Sovol SV08 Core-XY 3D Printer

Up to 700mm/s

With a maximum print speed of 700mm/s and acceleration up to 40,000mm/s², the SV08 delivers faster, high-quality results even for large-scale prints.

4× Print Volume

With a generous printing volume of 350x350x345mm³, the expansive space ensures that creation needs to be caged. This freedom allows for the full expression of creativity, unbounded by the limitationsof smaller printing volumes.

Built-in Camera

SVO8 is equipped with a camera that allows monitoring of the printing process in real time. Additionally, it enables the capturing of time-lapse footage, which is the ability to closely observe and document the printing process, offering convenience and insight into the printing experience.

All-axes Linear Rails

SVO8 utilizes linear rails for all 7 axes (4Z+2Y+1X) to improve precision and resistance to axial movement deformation.The provision of smooth and precise linear motion is crucial for producing high-quality prints. These rails guide the printer’s print head and build platform, ensuring accurate positioning and consistent, smooth movement throughout the printing process.

Remote Control

Simply connect SV08 to your LAN using WiFi or an Ethernet port enables convenient interaction with your printers and grants access to a range of features.

4 Independent Z Motors

The entire gantry system can be smoothly leveled using 4 independent Z motors. This process, known as Quad-Gantry-Leveling (QGL), enhances printer accuracy, reducing the likelihood of print failures. It can also detect and compensate for wear or damage.

Efficient Heating Kit

SV08 3D printer heats up rapidly, Ceramic Plate Heating & High-Flow Nozzle

reach 300°C quickly and 220°C in 40 seconds.

Using ceramic heating block & AC heated bed

reduce heating time by 70%

, allowing near-instant printing and easy preheating for nozzle cleaning and leveling. Enjoy precise, high-quality prints with versatile material compatibility.

Specification

Build Volume(W*D*H)

350*350*345mm³

Max Printing Speed

700mm/s

Max Acceleration

40000mm/s²

Flow Rate

≤30mm³/s

Printing Accuracy

±0.1mm

Layer Height

0.08-0.36mm

Auto Leveling Method

Inductive sensor & pressure sensor

Connectivity

Ethernet, Wi-Fi: 2.4 GHz (WPA2 only, WPA3 not supported)

Nozzle Diameter

0.4mm (Include), 0.2mm, 0.6mm, 0.8mm

Nozzle Temperature

≤300℃(572℉)

Hot Bed Temperature

≤100℃(212℉)

Filament Diameter

1.75mm

Operation System

Windows, Linux, Mac

Printer Size

550*537*575mm (Includes Screen and Filament Holder)

Power Supply

150W/24V

Build Plate

PEI Steel Plate

Extruder

Planetary gear extruder

Camera

Yes

Filament Sensor

Compatible Slicer

OrcaSlicer, Cura, PrusaSlicer, Simplify3d

Supported Filament

PLA, PETG, TPU, PETG-CF, ABS, etc.

File Format Supported

G-code

System Architecture

64-bit

CPU

H616

RAM

1GB

Flash Memory

8GB(EMMC)

Stepper Driver

TMC2209
