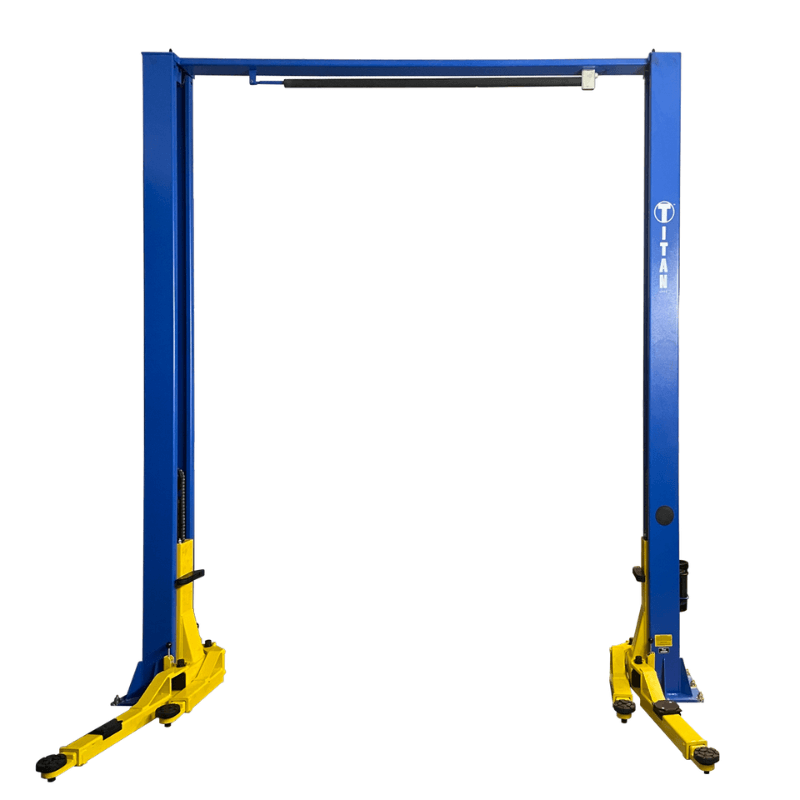

Titan HD2P-9000AC 2-Post Lift

HD2P-9000AC 9,000lb 2-Post Lift by Titan

The Titan HD2P-9000AC 2-Post Lift Gen-2 is a durable and reliable lifting solution designed for automotive service shops and serious car enthusiasts. With a 9,000lb capacity, this lift is suitable for a wide range of vehicles and features an asymmetric arm design for easy vehicle access. Its heavy-duty construction and sleek finish make it a long-lasting addition to any garage. It also comes with safety features such as rubber door guards and a safety shut-off bar. Plus, it is easy to install and has a 5-year structural warranty.

2-Post Lift Gen-2 HD2P-9000AC Specifications

Type: 2-Post Lift

Lifting Capacity: 9,000 lbs

Arm Design: Asymmetric

Hydraulic System: Dual 3” cylinders with low-friction chain rollers

Power Unit: 220V

Amp Draw: 15–26 amp

Lifting Speed: 45 seconds

Width: 137.8”

Height: 142.95”

Width Between Posts: 113.62”

Drive Thru Clearance: 103.98”

Lifting Height: 4.65” – 72.84”

Concrete Requirement: 4” thick, 3,000 PSI strength

Shipping Length: 145”

Shipping Width: 19”

Shipping Height: 44”

Shipping Weight: 1,380 lbs

HD2P-9000AC 2-Post Lift Gen-2 Special Features

Commercial-grade design for professional and enthusiast use

9,000lb lifting capacity to accommodate various vehicles

Asymmetric arm design for better vehicle access

Rubber door guards to protect vehicle finishes

Padded overhead safety shut-off bar for added protection

Dual-point safety release for controlled lowering

Durable powder-coated finish in Cobalt Blue with bright yellow arms

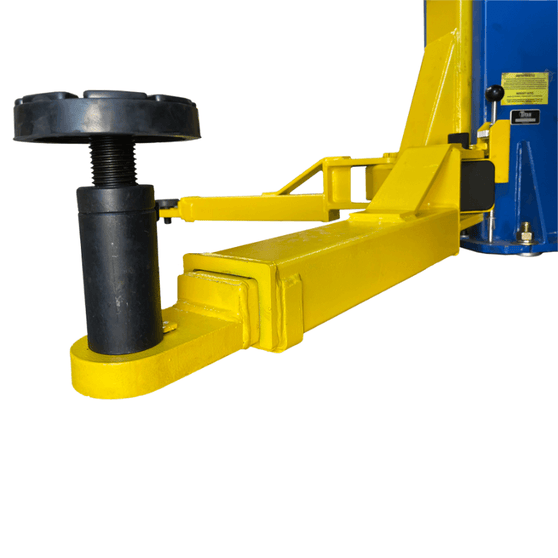

Low-profile lifting arms with automatic arm restraints

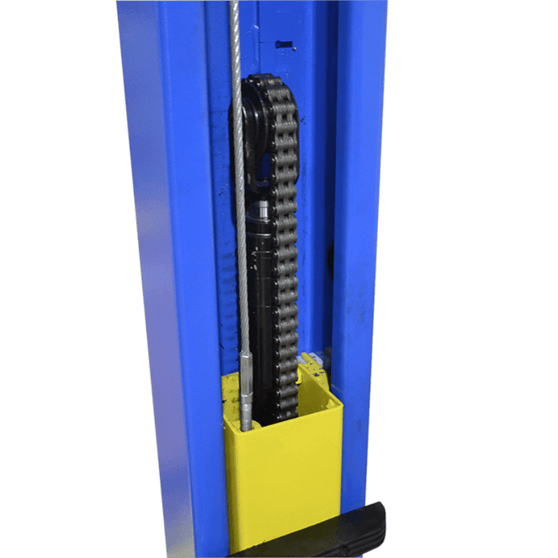

Dual 3” hydraulic cylinders with low-friction chain rollers for smooth operation

Threaded lifting pads and stackable truck adapters for versatility

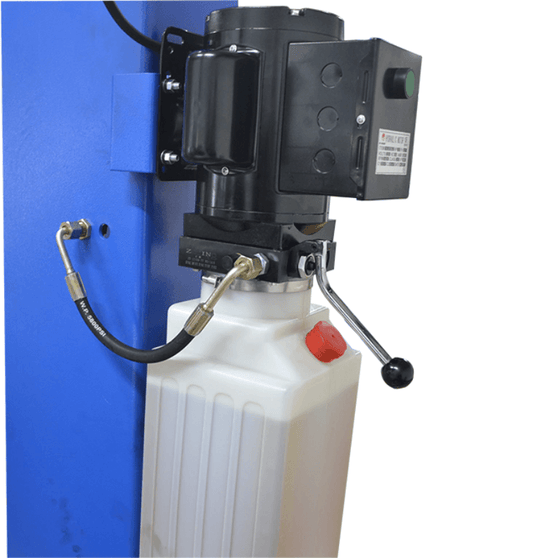

Space-saving power unit mounting bracket for efficient garage layout

Sleek internal hose routing with integrated hose guards

Anchor bolt kit included for secure installation

5-year structural warranty and 1-year electric/hydraulic parts warranty
