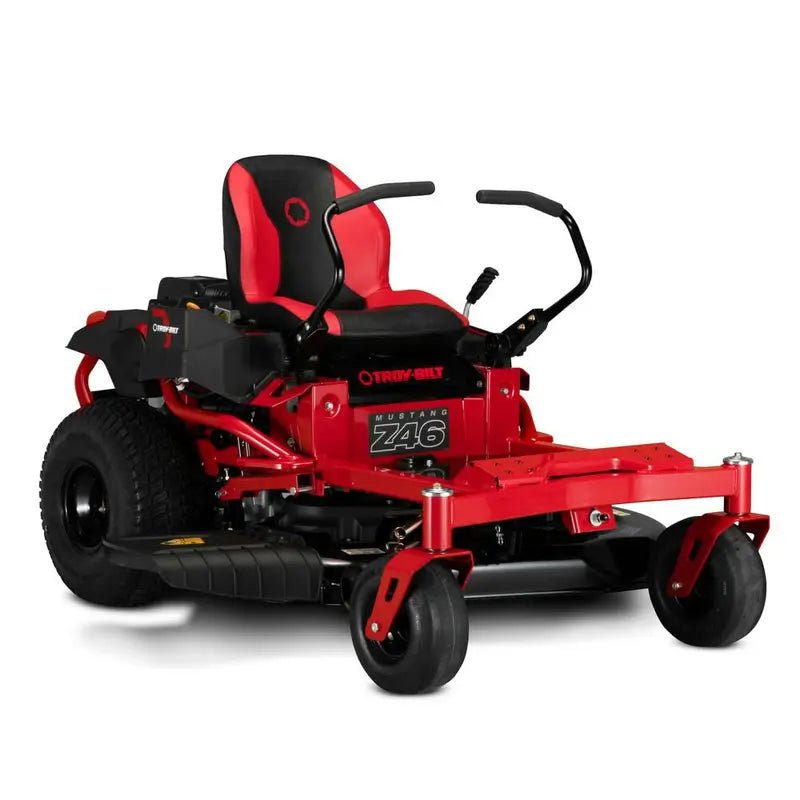

Troy-Bilt Mustang Z46 Zero-Turn Riding Lawn Mower

Get the job done fast with the Troy-Bilt® Mustang™ Z46, designed to quickly turn at the end of a row and mow around trees and landscape beds with dual hydrostatic transmissions. The rugged steel frame is engineered to absorb impact, provide stability, and is covered by a limited lifetime warranty. Quickly engage the cutting blades with the electric PTO and ride comfortably with the adjustable high-back seat and foam grip steering controls. A KOHLER® engine provides the power for your lawn care needs

Powerful 22 HP*/747cc KOHLER® twin-cylinder engine designed to deliver quiet, balanced performance

Full-length, fully welded, 2″ tubular steel frame is designed to absorb impact, provide stability and is covered by a limited lifetime warranty

Dual hydrostatic transmissions deliver true zero-turn performance and are designed to help quickly cut and maneuver around obstacles while mowing

46″ twin blade cutting deck with two anti-scalp deck wheels helps prevent turf damage and is engineered to deliver a clean, even cut.

Engine

Engine BrandKohler®

Engine Model7000 Series

Engine Model NumberKT722

Engine Displacement747cc

Engine Output22HP

Starter TypeElectric

Fuel Tank Capacity3.5 gallons (13.25 Litres)

CylindersTwin

Engine StartIgnition Key

Engine Oil Capacity2.0 qts. US (1.89 L)

LubricationFully pressurized

Charging System12 amp regulated

Fuel GaugeNo

GovernorMechanical

ChokeChoke-a-matic

Air FilterDual element

Oil FilterYes

Fuel DeliveryCarburetor

Battery

Battery210 CCA

Battery TypeAGM (Absorbent Glass Mat)

Battery Voltage12V

Drive System

TransmissionHydro-Gear™ EZT-2200

Forward Speed7 MPH / 11.3 Km/H

Reverse Speed3.5 MPH / 5.6 Km/H

Drive SystemHydrostatic

Transmission HousingCast aluminum

Cutting Deck

Deck Cutting Width46 in

Deck WashYes

Deck Material12-gauge steel

Deck Engagement (PTO)Electric

Deck ConstructionStamped

Blade(s)2

Deck LiftFoot pedal

Cutting Height Range1.25″-3.75″

Anti-Scalping2 gauge wheels

Deck Positions8

Chassis

Frame2” x 2” tubular steel

Turning Radius0°

ROPSNo

Rear Tow HitchYes

Corrosion ProtectionYes

Controls

Cruise ControlNo

BrakesDisc

Steering ControlLap Bars

Comfort

Seat Type18″ high back

ArmrestsNo

Seat AdjustmentKnob

Wheels

Rear Tires20”x8-8”

Front Tires11”x6”-5”

Tire TreadTurf Master / Multi Trac

Additional Specifications

Hour MeterAvailable separately

Mulch KitAvailable separately

Headlight(s)No

Cup HolderYes

Operator Presence SystemYes

Parking BrakeLap Bar Integrated

Model Number17ARFACTA66

Warranty

Residential Warranty3-year limited

Frame WarrantyLifetime Limited

Deck Shell Warranty3-year limited

Commercial WarrantyNo
