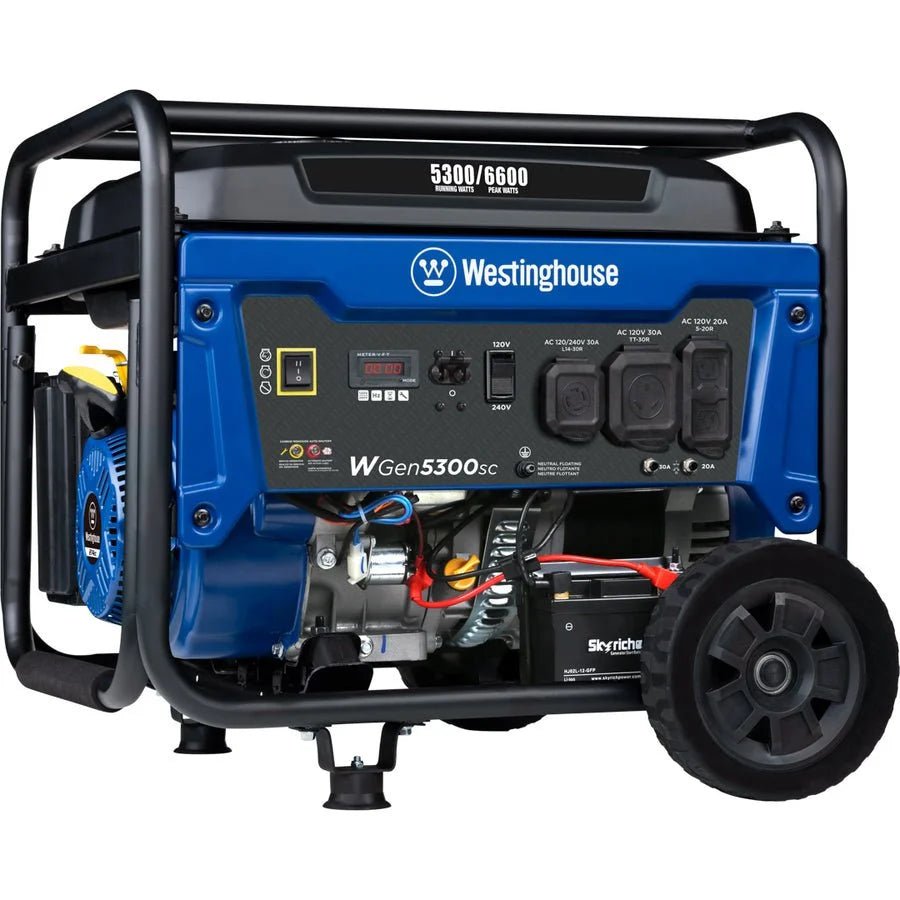

WGen5300sc Generator with CO Sensor

The Westinghouse WGen5300sc is a versatile solution for all your power needs from your home to your travel trailer when you’re looking for a dependable backup power supply. The WGen5300sc produces 6,600 peak watts and 5,300 running watts with a powerful 274cc 4-Stroke OHV Westinghouse Engine constructed for durability. Running for up to 14.5 hours on a 4.7 gal. (18L) tank of gas, it’s conveniently equipped with a built-in fuel gauge, automatic low oil shutdown, and electric start with manual choke. The L14-30R outlet is Transfer Switch Ready for total household power and eliminates the hassle for annoying extension cords or power strips. Combined with an RV Ready TT-30R outlet, all this generator needs is a one cord hookup to ensure your recreation vehicle or home is ready to go for air conditioners, refrigerators, sump pumps, and home necessities. The intuitive control panel includes the Digital Readout to share real-time updates on maintenance information, making it easy to care for the WGen5300sc with long life and lasting utility. Engineered into a compact hardened-steel frame with added roll bars, foam grip handle, and never-flat wheels, it lets you easily move this generator from storage to use. The WGen5300sc Portable Generator is complete with a 3-Year Limited Warranty and Lifetime Technical Support to ensure your confidence can be backed by our nationwide customer service and support network.

Perfect as a backup power source at home or portable power solution for RVs

6,600 peak watts and 5,300 running watts

Runs for up to 14.5-hours on a 4.7 Gal. fuel tank with built-in fuel gauge

Powered by a tough 274 cc 4-stroke OHV Westinghouse engine constructed with a durable cast iron sleeve

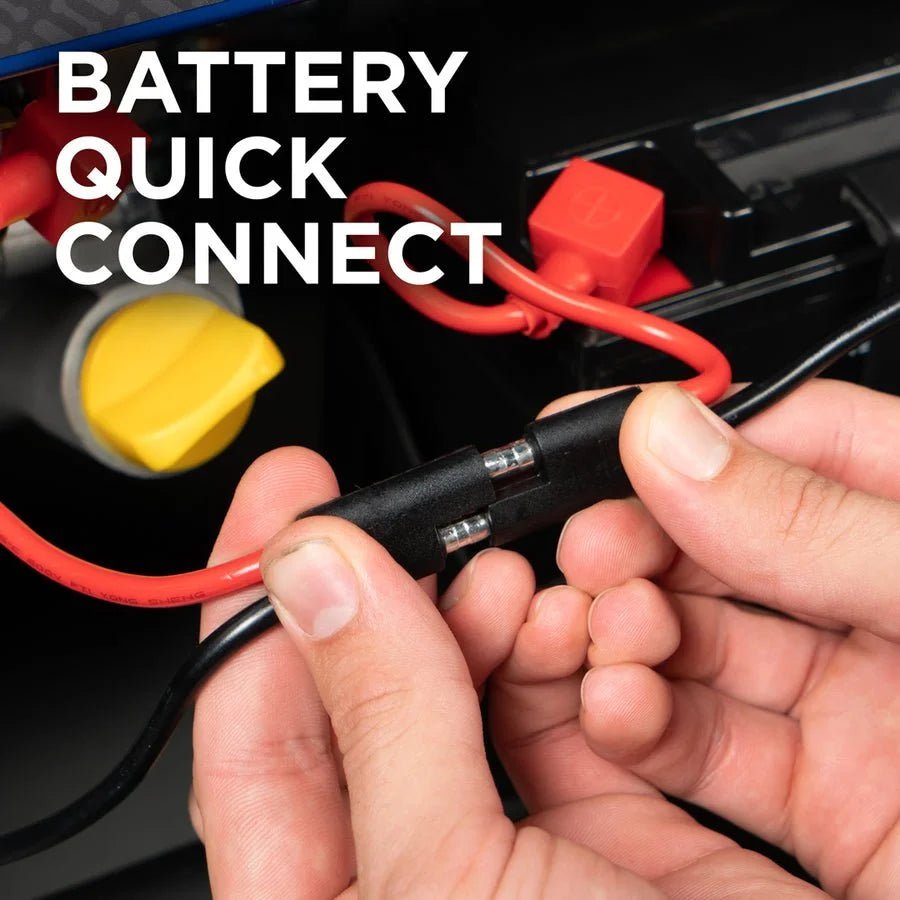

Electric start offers easy ignition with backup emergency recoil start

Weighing 133.8 lbs. with as low as 68 dBA operating volume

One 5-20R household duplex outlets, 1 Transfer Switch Ready L14-30R 120-Volt/240-Volt twist-lock and 1 RV Ready 120-Volt TT-30R receptacle with rubber outlet covers

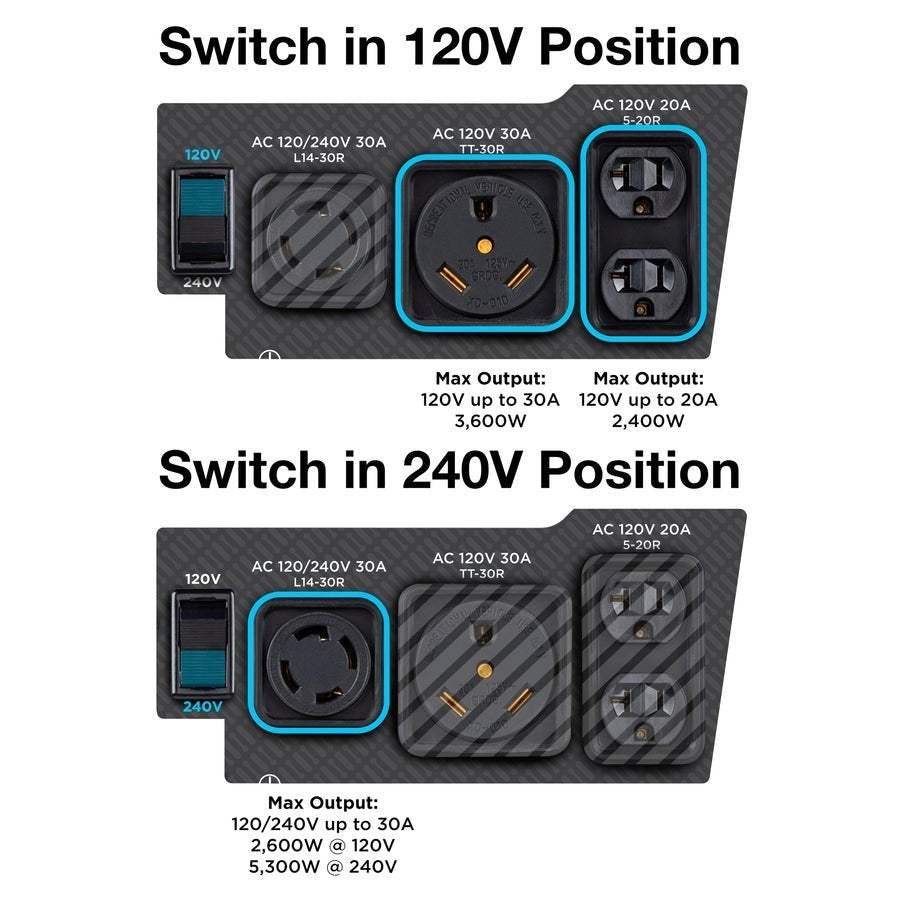

120-Volt/240-Volt selector switch allows for more flexible power draw per outlet

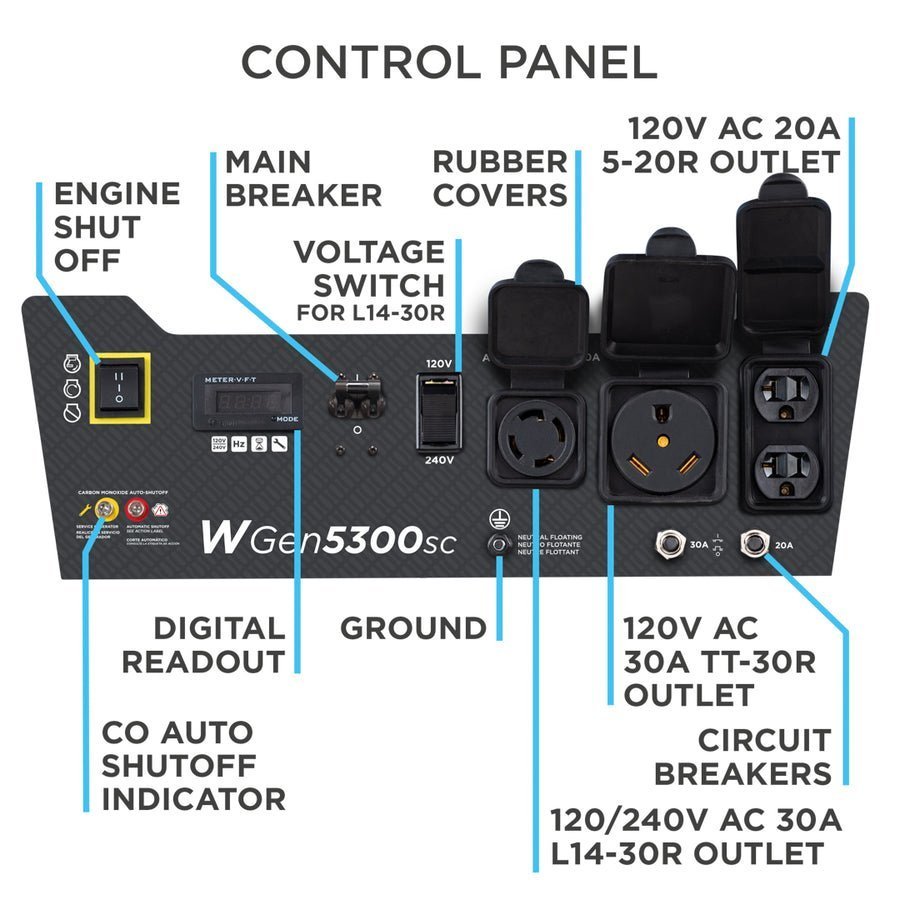

Digital Readout gives you real time updates with the voltage output, frequency and lifetime hours

Safe and convenient with automatic low oil and carbon monoxide (CO) shutdown, automatic voltage regulation, and overload protection

Compact hardened steel frame with foam grip handle and rugged never-flat wheels make portability easy

All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor

Gasoline Peak Watts

6600

Gasoline Running Watts

5300

Gasoline Peak Amps

27.5A – 240V

55A – 120V

Gasoline Running Amps

22A – 240V

44A – 120V

AC Voltage

120/240V

AC Frequency

60 Hz

Outlets

1 120V Duplex 5-20R

1 120/240V L14-30R

1 120V TT-30R

Total Harmonic Distortion

≤23%

GFCI Outlets

No

Outlet Covers

Yes

Transfer Switch Ready

RV Ready

Display Type

Digital Readout

Noise Level

68 dBA

Fuel Gauge

Fuel Tank Capacity

4.7 gal. (18 L)

Gasoline Run Time @ 25%

14.5 hrs.

Gasoline Run Time @ 50%

11 hrs.

Starter Type

Electric, Recoil

Choke Type

Manual

Engine Displacement

274cc

Engine Type

OHV 4 Stroke

Oil Capacity

20.3 oz. (0.6 qt.)

Engine Oil Type

10W-30

Automatic Low Oil Shutdown

Carbon Monoxide (CO) Sensor

Overload Protection

CARB Compliant

Grounding System

Floating Neutral

Battery Included

Included Accessories

Oil Bottle, Oil Funnel, Spark Plug Wrench

Warranty (Residential)

3 Year Limited

Warranty (Commercial)

1 Year Limited

Product Dimensions

23.5L x 25W x 21.5H in.

Dry Unit Weight

133.8 lb. (60.7 kg)

Packaging Dimensions

26.7L x 21.6W x 20.3H in.

Shipping Weight

147.7 lb. (70 kg)

Part Number

5325

UPC

850011336724
