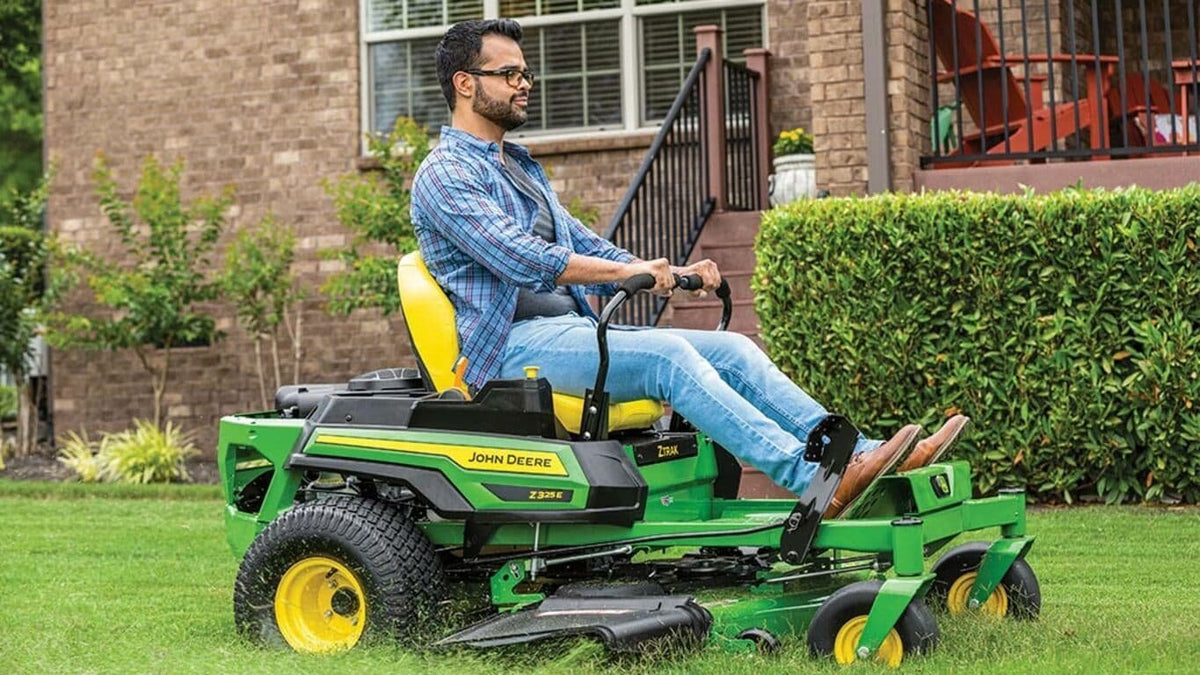

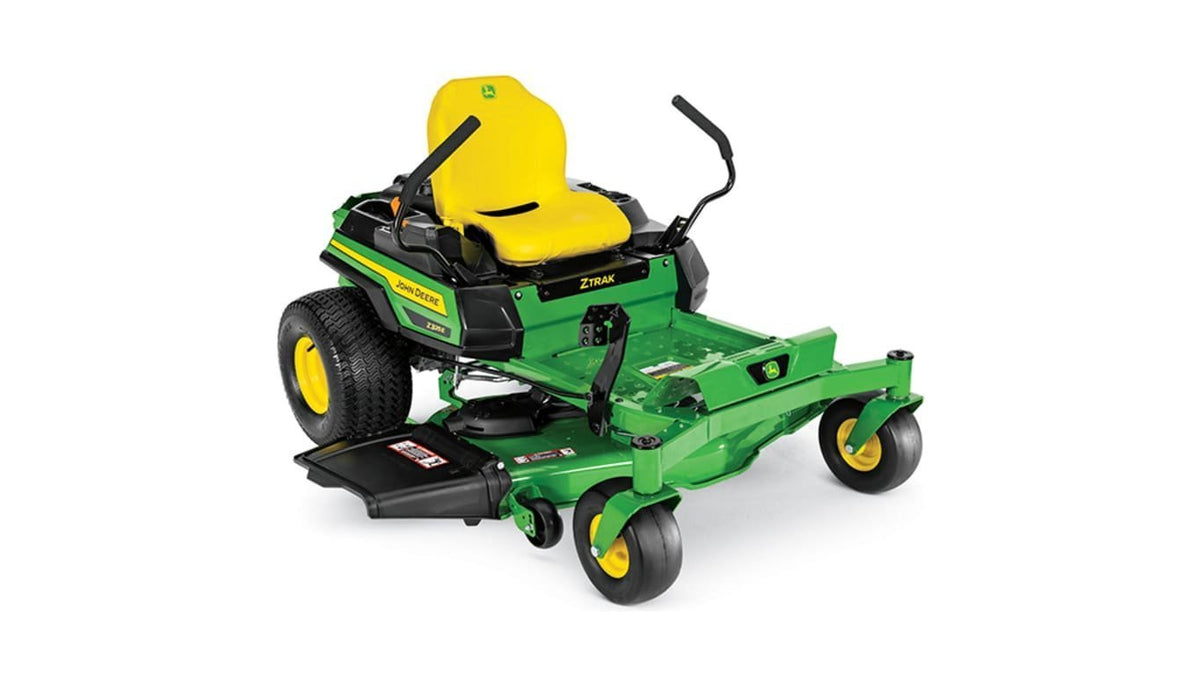

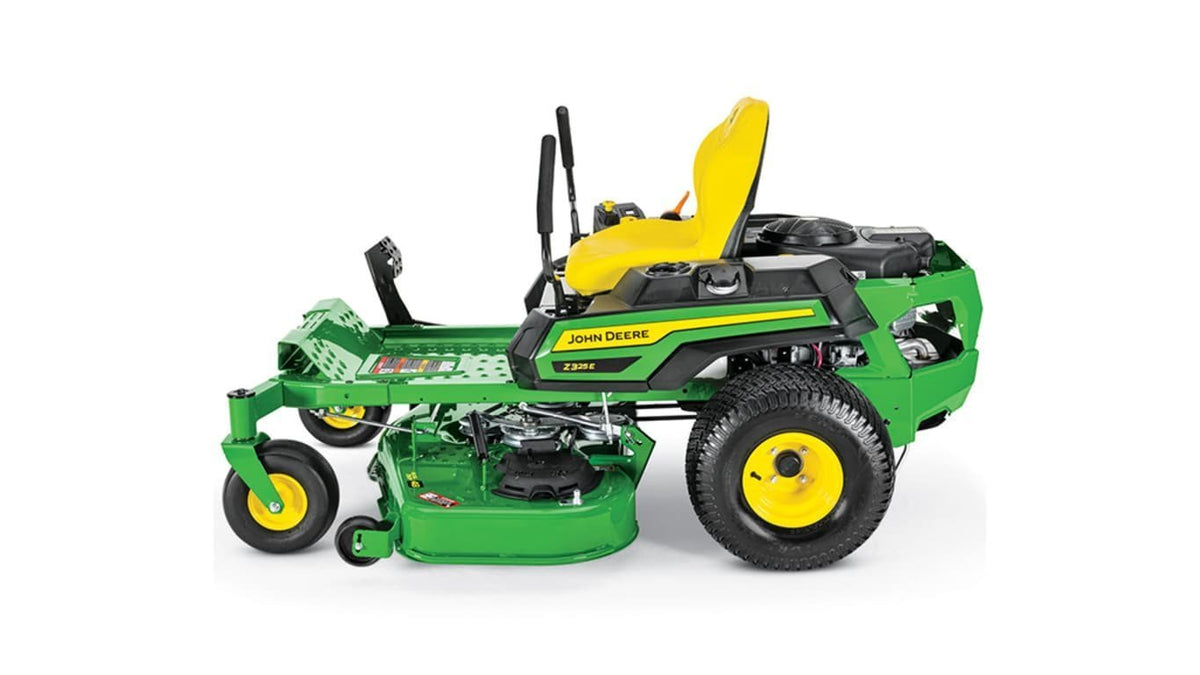

Z325E ZTrak™ Mower with 48-in. Deck

Engine power

24 hp

17.9 kW

Engine model number

44 EXi

Forward speed

0-7 mph

0-11.3 km/h

Front caster tires

11×6-5

Drive tires

20×10-8

Seat back height

High back with optional armrests, 18 in.

46 cm

Width of cut

Accel Deep™ mower deck, 48 in.

122 cm

Accel Deep™ mower deck, 54 in.

137 cm

Mulching system

Optional MulchControl™ attachment

Warranty

3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Key Specs

Power

Model number

Displacement

44.2 cu in.

724 cc

Cylinders

V-twin

Lubrication

Full pressure with replaceable filter, capacity, 2 U.S. qt

1.9 L

Type

Overhead valve

Battery

12 V

300 CCA

Choke/speed control

Single lever

Cooling method

Air

Fuel tank capacity

3.0 U.S. gal.

11.4 L

Fuel gauge

Translucent tank

Engine

Dual hydros

Hydro-Gear EZT-D with 1-in. (2.5-cm) axles

Drive train

Reverse speed

0-3.5 mph

0-5.6 km/h

Speed and direction control

Twin levers

Control adjustment

3 height, 11 positions

Travel speed

Frame

Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing

Primer/paint

E-coat/powder

Front caster bearings

Sealed ball bearings

Hour meter

Yes

Service interval decal

Storage compartment

Optional covered

Cup holder

Maximum towing capacity

250 lb

113 kg

Chassis

Fore-aft adjustment

2.9 in.

7 cm

Seat suspension

Two springs

Seat

Foot lift

Mower cut height

1.25-4.5 in.

3-11 cm

Cut height increments

0.25 in.

0.64 cm

Preset cut height

Lift system

Side discharge

Mower deck material

10 gauge

0.135 in.

3.4 mm

Mower drive system

V-belt

Mower deck

Electric, 105 lb-ft

142 Nm

Drive

PTO

Wheelbase

49.4 in.

1255 mm

Overall length

75.4 in.

1915 mm

Width without mower

43.3 in.

1100 mm

Width with mower

48A: 62.6 in.

1590 mm

54A: 68.5 in.

1740 mm

Width with mower (deflector raised for storage)

48A: 52.8 in.

1340 mm

54A: 57.1 in.

1450 mm

Height

42.5 in.

1080 mm

Weight

48A: 594 lb

270 kg

54A: 605 lb

275 kg

Dimensions

Rollover protective structure (ROPS)

No

Slope operating limit

13 degrees; 10 degrees with Material Collection System

Operator presence system

Park brake interlock

Operator video

Yes, online

Operation

Note 1

Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels

Note 2

Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial

Note 3

Integrated park brake is automatically applied when steering levers are stowed outward

Buyer’s notes

Rubber floor mat

Optional

Sun shade

Mounted sprayer

Not available

Protective cover

Light kit

Material collection system

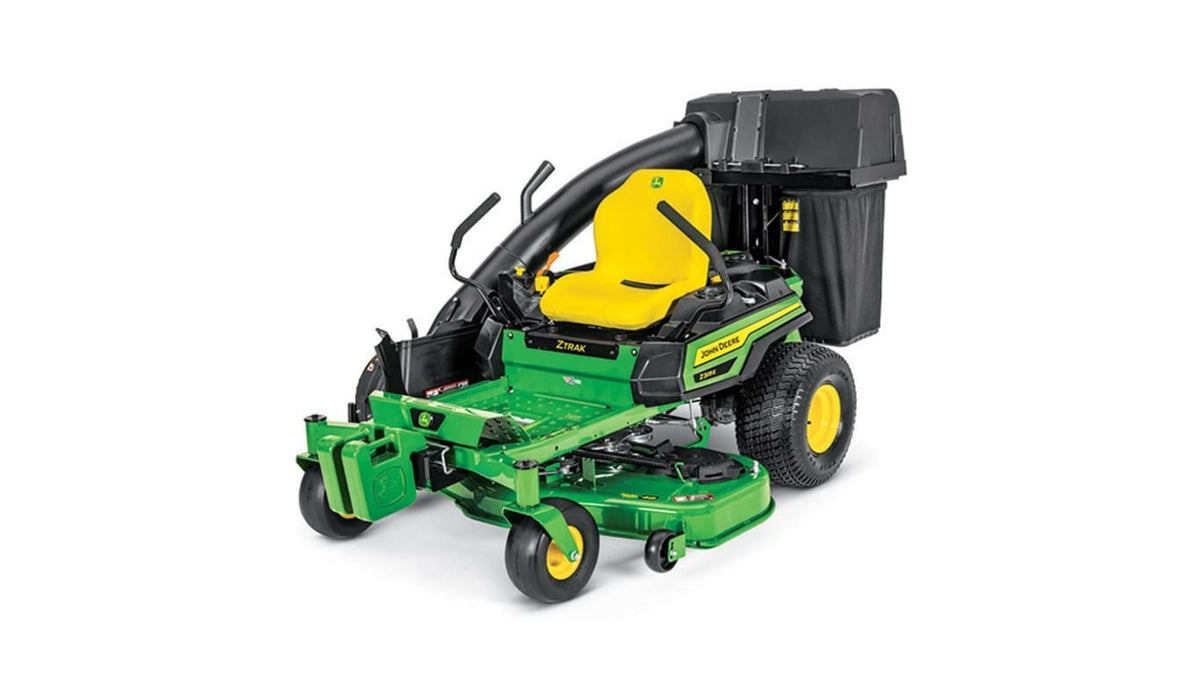

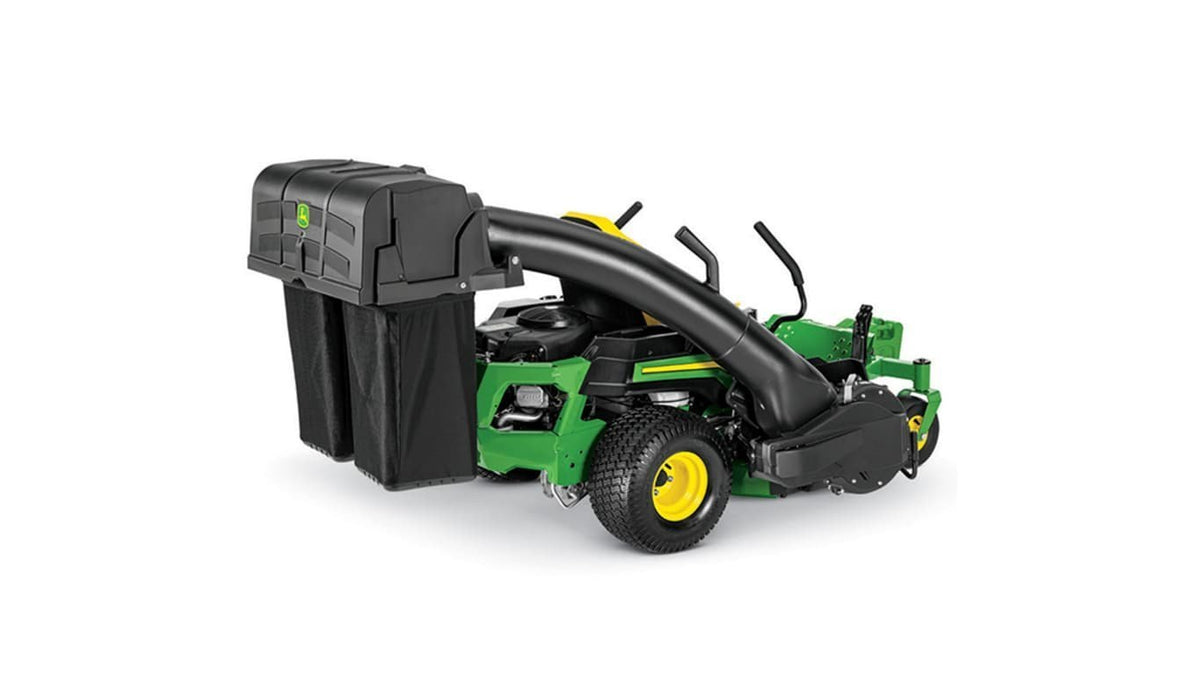

Two-bag Power Flow MCS, 6.5 bu

229 L

Optional attachments

Manufacturing location

Greeneville, Tennessee, USA

Date collected

3-Oct-22
